Cisco

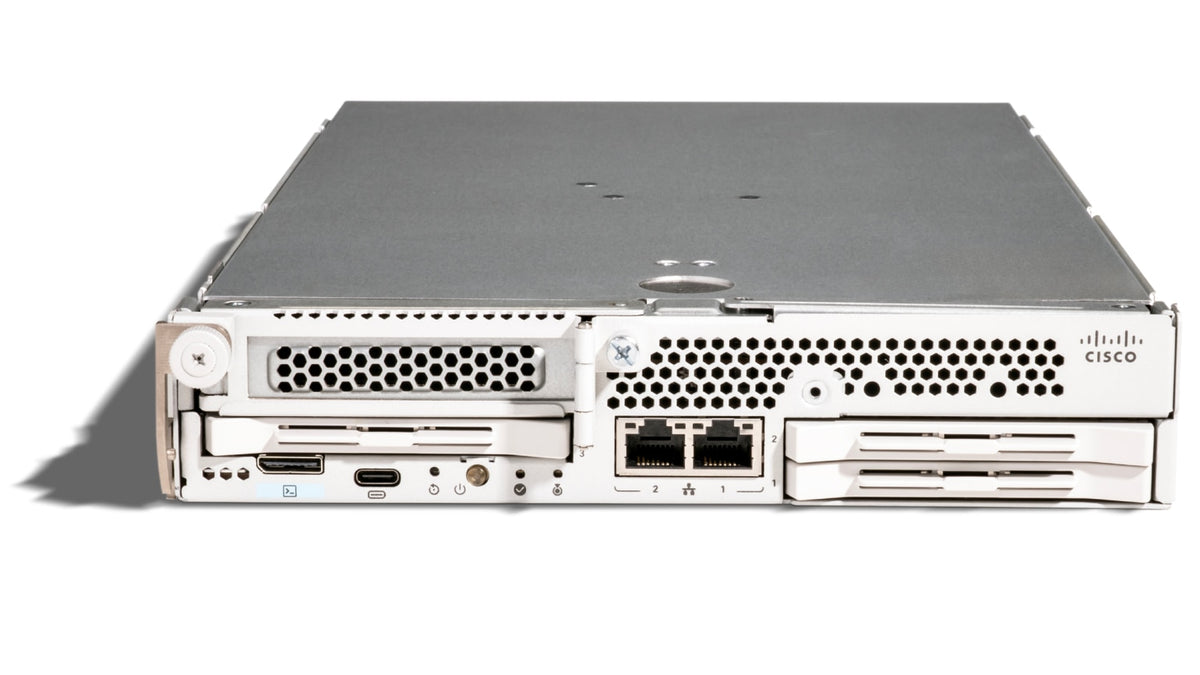

Cisco UCSXE-130C-M8-20 | UCS XE130c M8 20-Core Compute Node, 1 RU Half-Width

UCSXE-130C-M8-20

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS XE130c M8 is a 1 RU, half-width edge compute node for the Cisco UCS XE9305 Chassis, part of the Cisco Unified Edge platform. It suits retail, branch and remote sites that need compact, AI-ready compute for bare-metal servers, virtualisation, containers and AI/ML inferencing, managed centrally through Cisco Intersight.

This SKU is built on a single Intel Xeon 6 SoC with P-cores, with 20 physical cores, and is ordered as a UCS XE9305 Chassis option without storage or memory. The node offers 8 DDR5-6400 RDIMM slots for up to 768 GB, two rear 25 Gbps ports to the chassis mid-plane and two front 10 Gbps RJ-45 host ports. Internal storage is up to two M.2 SSDs with hardware RAID 1, plus front hot-swappable E3.S NVMe drives: four in the Storage-Optimized configuration or three in the IO-Optimized configuration.

A dedicated PCIe Gen5 slot takes a 75 W half-height, half-length GPU such as the NVIDIA L4, and IO-Optimized configurations add a PCIe Gen5 half-height, half-length slot for a NIC, DPU or IPU. Up to five nodes fit in one UCS XE9305 Chassis, which supplies power and cooling.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Edge-optimised compute node for the Cisco Unified Edge modular platform, combining compute, storage, networking and security
- Intel Xeon 6 SoC features include Intel Integrated Ethernet, Turbo Boost, AVX-512, AMX, QAT v2.2 and DSA
- Supports PCIe GPUs, DPUs and adapters for AI/ML, virtualisation, containers and bare-metal workloads
- Tool-less sled design for easy serviceability
- Zero-touch deployment and centralised management for distributed edge sites
- Infrastructure software choice including Nutanix, Red Hat, VMware and SUSE
- Hardware RAID 1 protection for the M.2 boot storage

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1 x Intel Xeon 6 SoC with P-cores, 20 physical cores
- Form factor: 1 RU, half-width, tool-less sled
- Chassis: Cisco UCS XE9305, up to 5 nodes per chassis
- Memory slots: 8 x DDR5-6400 RDIMM, 4 memory channels
- Memory options: 16, 32, 48, 64 or 96 GB RDIMMs
- Maximum memory: 768 GB (8 x 96 GB)
- Rear LOM: 2 x 25 Gbps ports to chassis mid-plane
- Front LOM: 2 x 10 Gbps RJ-45 host ports
- Front-panel ports: 1 x KVM connector, 1 x USB-C
- Internal storage: up to 2 x M.2 SSD, up to 960 GB each, hardware RAID 1
- Front storage, Storage-Optimized: 4 x hot-swappable E3.S NVMe, up to 30 TB each
- Front storage, IO-Optimized: 3 x hot-swappable E3.S NVMe, up to 30 TB each
- GPU: 1 x dedicated PCIe Gen5 slot for a 75 W HH/HL GPU, e.g. NVIDIA L4
- Adapter slot: 1 x PCIe Gen5 HH/HL for NIC, DPU or IPU (IO-Optimized only)
- Security: optional TPM 2.0 for host OS, built-in TPM 2.0 for BMC
- Management: Cisco Intersight

FAQs

Q: Which chassis does this compute node install in?
A: It installs in the Cisco UCS XE9305 Chassis, which holds up to five nodes and supplies power and cooling.

Q: How is the UCS XE130c M8 managed?
A: It is managed through Cisco Intersight. Confirm the Intersight licence tier you need when planning the deployment.

Q: Can I fit a GPU?
A: Yes. A dedicated PCIe Gen5 slot takes a 75 W half-height, half-length GPU such as the NVIDIA L4.

Q: What memory and storage does it use?
A: Memory is DDR5-6400 RDIMM from 16 to 96 GB across 8 slots, up to 768 GB. Storage is M.2 SSD plus front E3.S NVMe drives.

Q: How does this SKU differ from other XE130c M8 options?
A: This SKU has the 20-core CPU and is ordered without storage or memory as a UCS XE9305 Chassis option. The family also offers 12-core and 32-core options.
