Cisco

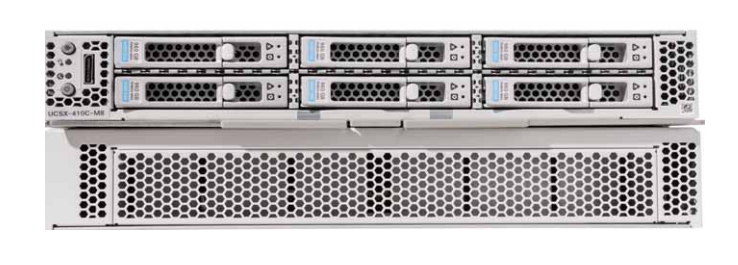

Cisco UCSX-410C-M8 | UCS X410c M8 4-Socket Server Node, No CPU or RAM

UCSX-410C-M8

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The UCS X410c M8 is a second-generation 4-socket compute node for the Cisco UCS X-Series Modular System, built around Intel Xeon 6 processors. It suits mission-critical enterprise applications, memory-intensive workloads, and bare-metal or virtualised deployments, and works well as a consolidation platform. UCSX-410C-M8 is the base node, supplied without CPU, memory, storage or mezzanine, so you specify those components to suit the workload.

Each node supports four Intel Xeon 6 processors with up to 86 cores per processor and 64 DDR5 DIMM slots, 16 per CPU, reaching up to 16 TB with 256GB RDIMMs at up to 6400 MT/s. Front storage options include up to nine EDSFF E3.S NVMe drives, or up to six 2.5-inch SAS, SATA or NVMe drives when a front mezzanine is fitted. Two M.2 SATA or NVMe boot drives are supported through a mini storage module. The mLOM slot takes a Cisco UCS VIC 15420 or VIC 15230, and a rear mezzanine option adds the VIC 15422. The node requires Cisco Intersight in Intersight Managed Mode, with a minimum Essentials licence per server.

It installs in the Cisco UCS X9508 chassis, which holds up to four of these nodes in 7RU, and connects through Cisco UCS Fabric Interconnects 6454, 64108, 6536, 6664 or the UCS Fabric Interconnect 9108 100G.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Four Intel Xeon 6 processors with up to 86 cores per processor
- Up to 16 TB of memory using 64x 256GB DDR5-6400 DIMMs
- EDSFF E3.S NVMe passthrough front mezzanine option for up to nine hot-pluggable drives
- Up to six hot-pluggable 2.5-inch SSD or NVMe drives with enterprise RAID options
- Up to two M.2 SATA or NVMe drives for boot and local storage
- Optional rear VIC 15422 mezzanine for up to 200 Gbps per server with the bridge card
- Optional TPM, secure boot FPGA and ACT2 anti-counterfeit provisions
- Cloud-operations management through Cisco Intersight

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Compute node for UCS X9508 chassis
- Processors: 4x Intel Xeon 6, up to 86 cores per processor
- Memory slots: 64 DDR5 DIMM slots (16 per CPU)
- Maximum memory: up to 16 TB with 256GB RDIMMs at up to 6400 MT/s
- Supported DIMM sizes: 64, 96, 128, 256GB RDIMM
- Front storage: up to 9x EDSFF E3.S NVMe drives
- Alternative front storage: up to 6x 2.5-inch SAS, SATA or NVMe drives
- Boot drives: 2x M.2 SATA with hardware RAID, or 2x M.2 NVMe passthrough via mini storage module
- mLOM: Cisco UCS VIC 15420 or VIC 15230
- Rear mezzanine: Cisco UCS VIC 15422 with bridge connector
- Front mezzanine options: E3.S NVMe passthrough, NVMe passthrough, or RAID controller with 4GB cache
- Management: Cisco Intersight, Cisco UCS Manager
- Chassis: Cisco UCS X9508, up to 4 nodes in 7RU
- Fabric interconnects: UCS 6454, 64108, 6536, 6664 and UCS Fabric Interconnect 9108 100G
- Dimensions (H x W x D): 93.22 x 286.52 x 604.52 mm
- Weight: 13.1 kg minimum configuration, 16.32 kg fully configured
- Operating temperature: 10 to 35 C (10 to 32 C with 256GB DDR5 DIMMs)
- Non-operating temperature: -40 to 65 C
- Operating altitude: 0 to 3000 m

FAQs

Q: Does the UCSX-410C-M8 need a licence?
A: It requires Cisco Intersight in Intersight Managed Mode, with a minimum Essentials licence per server.

Q: Which chassis does this node fit?
A: It installs in the Cisco UCS X9508 chassis, which holds up to four of these nodes in 7RU.

Q: Which fabric interconnects does it work with?
A: It works with Cisco UCS Fabric Interconnects 6454, 64108, 6536 and 6664, and the UCS Fabric Interconnect 9108 100G.

Q: Which network adapters does it support?
A: The mLOM slot takes a Cisco UCS VIC 15420 or VIC 15230, and an optional rear mezzanine takes the VIC 15422 with the bridge connector.

Q: What front storage options are available?
A: A front mezzanine controller enables up to nine E3.S NVMe drives or up to six 2.5-inch SAS, SATA or NVMe drives. Options are the E3.S NVMe passthrough, NVMe passthrough and RAID controller with 4GB cache.

Q: How is this SKU different from its sibling SKUs?
A: UCSX-410C-M8 is the base node without CPU, memory, storage or mezzanine. UCSX-410C-M8-U is the upgrade version and UCSX-410c-M8-CH is the distributor version.
