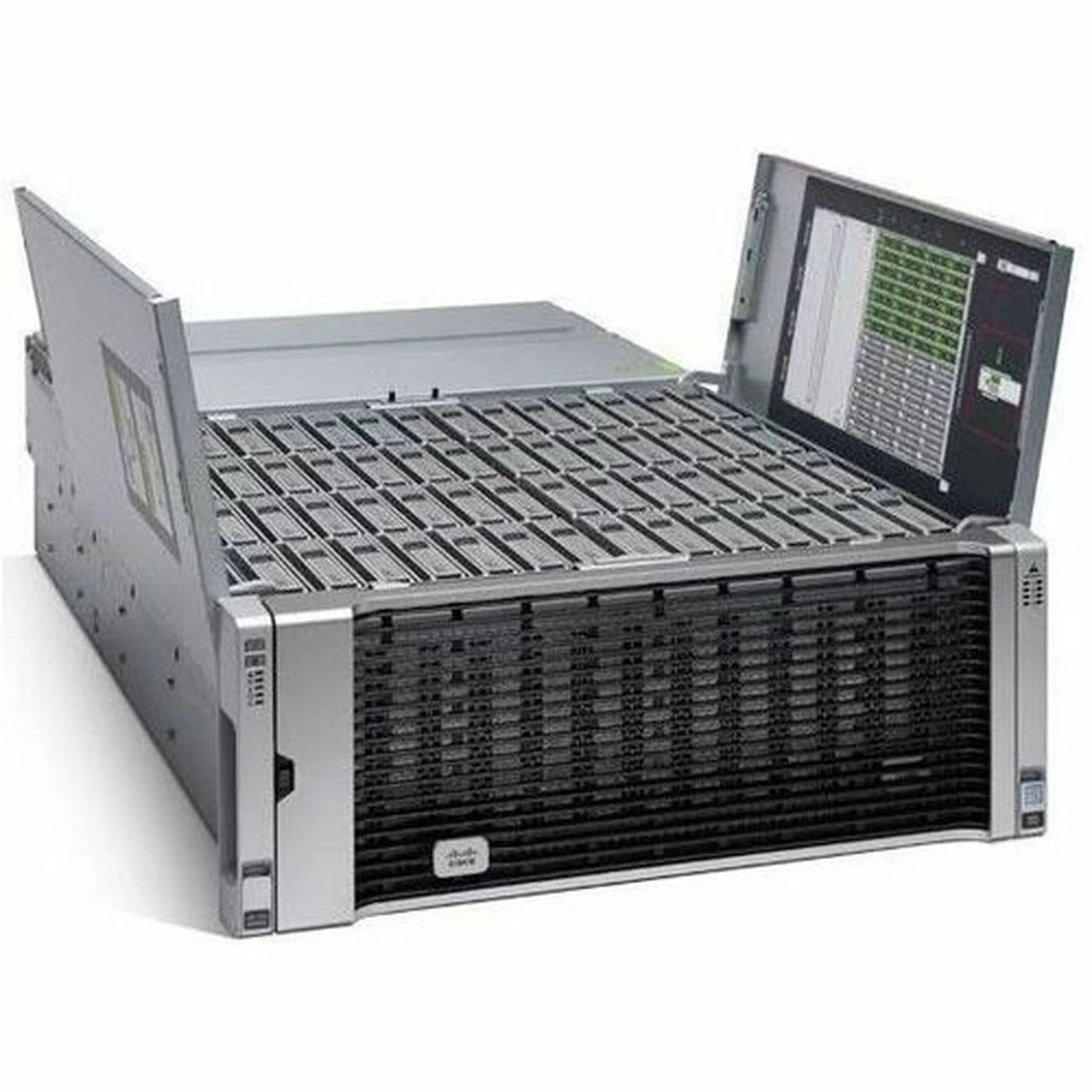

• Cisco UCS S3260 4U storage server rack with silver chassis, black drives, green screen
1 1

Cisco

Cisco UCSS-S3260 | UCS S3260 4RU Storage Server Base Chassis, Dual-Node

UCSS-S3260

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

 Trade supply only. Server & GPU quote requests need a company name, ABN and work email address. We do not quote Gmail, Outlook or Hotmail addresses, or supply for home use.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Custom Built Servers

Need a different spec, quantity or configuration?

We build configured-to-order refurbished servers from Cisco, Dell, HPE, NVIDIA Lenovo and Supermicro. Tell us what you need and we'll come back with options within 24 hours.

Configure your server now →

Description

The UCS S3260 is a modular 4RU storage-optimised server chassis from the Cisco UCS S-Series Storage Servers family. This UCSS-S3260 SKU is the base chassis only, supplied with one rail kit and bezel, and is built to hold up to two server nodes for high-availability, high-capacity storage deployments such as big data, backup and data protection, software-defined storage and scale-out unstructured data repositories.

The chassis supports up to 56 top-accessible hot-swap 3.5-inch NL-SAS HDDs or up to 28 SAS SSDs, with up to four additional rear 3.5-inch drives via the disk expansion module, for up to 1,080 TB of local storage. Each M5 server node takes dual 2nd Gen Intel Xeon Scalable processors with up to 48 cores and up to 1.5 TB of DDR4 memory. Up to two system I/O controllers are supported, using the onboard VIC 1300 with 2 x 40G QSFP ports or the PCIe-based VIC 1455 and VIC 1495. The chassis takes four hot-swap 1050 W 80 PLUS Platinum power supplies in 3+1 redundancy. Server nodes, drives, system I/O controllers and power supplies are selected separately to suit the build.

Management is through the integrated Cisco IMC or Cisco UCS Manager (UCSM 3.2.3 or later with 6200 or 6300 Fabric Interconnects). The chassis fits a standard 32-inch deep rack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular multigenerational architecture lets you upgrade main components without migrating data
- Dual-node capability for high availability
- Scales to petabytes with Cisco UCS Manager and policy-based storage management
- Support for NVMe and flash memory
- Unified I/O for Ethernet or Fibre Channel connectivity to existing NAS or SAN
- Support for Cisco bidirectional (BiDi) transceivers for 40G over existing 10G cabling
- Tool-free server nodes and system I/O controllers
- Hot-swappable and hot-pluggable components

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 4RU server, base chassis only
- Server nodes: Up to 2 M5 nodes (2nd Gen Intel Xeon Scalable and Intel Xeon Scalable)
- Processors: Dual 2nd Gen Intel Xeon Scalable per server node, up to 48 cores per node
- Memory: 7 DIMM slots per processor, 16/32/64/128-GB DDR4 RDIMM or LRDIMM, up to 1.5 TB per M5 node
- Persistent memory: 1 Intel Optane DC Persistent Memory ready slot (256/512-GB)
- NVMe: Up to 12.8 TB NVMe for M5 server node
- Drives: Up to 56 top-accessible hot-swap 3.5-inch 2- to 18-TB 7200-RPM NL-SAS HDDs, or up to 28 SAS SSDs (800-GB/1.6-TB/3.2-TB)
- Rear boot drives: Up to 2 x 2.5-inch 240/480-GB SATA or 1.6-TB SSDs per server node
- Disk expansion module: Up to 4 rear-accessible hot-swap 3.5-inch 2- to 18-TB NL-SAS HDDs
- Local storage: Up to 1,080 TB
- System I/O controllers: Up to 2, onboard VIC 1300 (2 x 40G QSFP, 160 Gbps) or PCIe VIC 1455 (4 x 10/25G) / VIC 1495 (2 x 40/100G)
- I/O expansion module: Dual x8 PCIe half-height, half-width slots; 1/10/40 GbE or 16G Fibre Channel options; NVIDIA T4 16GB GPU support
- Storage controller: Dual-chip RAID (LSI 3316, 4-GB cache per chip, RAID 0/1/5/10/50/60 and JBOD) or dual-chip pass-through (IT firmware)
- Power supplies: 4 x hot-pluggable 1050 W AC or DC 80 PLUS Platinum, 3+1 redundant
- Cooling: Four hot-swap dual fan modules (8 fans), front-to-rear airflow
- Management: Integrated BMC with Cisco IMC, IPMI 2.0, one 10/100/1000 out-of-band management port
- Protocols: Fibre Channel, FCoE, NFS, SMB, SMB Direct, iSCSI
- Dimensions (H x W x D): 174 x 444 x 813 mm
- Weight: 88.45 kg maximum configuration, without rail kit
- Operating temperature: 5 to 35 C
- Non-operating temperature: -40 to 65 C
- Operating humidity: 10% to 90% RH, non-condensing
- Operating altitude: 0 to 3048 m, derated 1 C per 305 m
- Acoustic noise: LWAd 5.4 Bel, LpAm 38 dBA

FAQs

Q: Does the UCSS-S3260 need a software licence?
A: No licence is stated for the base chassis. Management is through the built-in Cisco IMC, or through Cisco UCS Manager (UCSM 3.2.3 or later for M5 nodes with 6200 or 6300 Fabric Interconnects).

Q: What power supplies does the chassis use?
A: The chassis takes four hot-swap 1050 W AC or DC 80 PLUS Platinum power supplies in 3+1 redundancy, for example UCSC-PSU1-1050W for AC or UCSC-PSUV2-1050DC for DC.

Q: Which server nodes and I/O controllers work with this chassis?
A: The chassis is built for S3260 M5 server nodes based on 2nd Gen Intel Xeon Scalable processors. System I/O controllers are the onboard VIC 1300 or the PCIe-based VIC 1455 and VIC 1495.

Q: How does this SKU differ from a fully configured S3260?
A: UCSS-S3260 is the base chassis only, with one rail kit and bezel. Server nodes, drives, system I/O controllers and power supplies are specified separately.

Q: What rack depth does it need?
A: The chassis is 32 inches (813 mm) deep and fits a standard 32-inch deep rack such as the Cisco R 42610. A spare rail kit is available as UCSC-C3X60-RAIL=.
