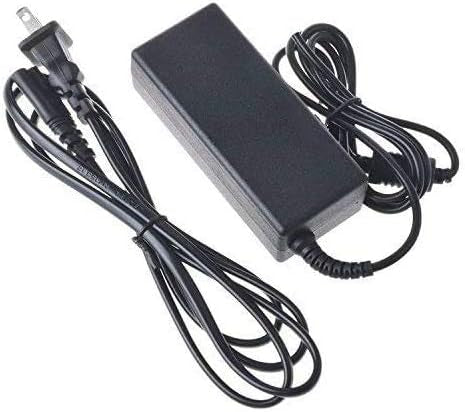

Cisco PWR-DT-190W-AC | 190W AC PoE Compact Firewall Power Supply
SKU:PWR-DT-190W-AC
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This is a 190W AC-input external power supply with PoE capability for compact Cisco Secure Firewall desktop appliances. It is aimed at branch and small-office deployments where the firewall also needs to power attached PoE devices, and it also suits those needing a spare or replacement PoE-capable supply.
The unit is the PoE variant of the compact firewall power supply, rated at 190W with AC input. On the Secure Firewall 1200 Series compact models the AC input range is 100-240V AC at 50-60 Hz. Paired with a PoE model such as the 1210CP, which draws up to 165W including PoE, it supports four 802.3at ports delivering up to 30W per port and 120W in total.
This PoE supply is used in place of the non-PoE unit on PoE models, and it sits alongside the 1200 Series compact-model accessories such as CSF1200C-PWR-AC, CSF1200CP-PWR-AC and CSF1200C-RACK-MNT.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- PoE-capable power supply for compact Cisco Secure Firewall appliances
- 190W rated output with AC input
- Compact external desktop form factor
- Single-input external supply arrangement
- Supports 802.3at PoE delivery on PoE-capable models such as the 1210CP
- Listed by Cisco as an accessory for Secure Firewall 1200 Series compact models
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Rated output: 190W
- Input type: AC
- AC input voltage (1200 compact models): 100-240V AC
- AC input frequency (1200 compact models): 50-60 Hz
- PoE support: Yes (PoE variant)
- Form factor: External, single-input desktop power supply
- Intended platform: Cisco Secure Firewall compact models
- 1210CP maximum power consumption: 40W excluding PoE, 165W including PoE
- 1210CP PoE: 4 x 1000BASE-T ports, IEEE 802.3at, up to 30W per port, 120W total
- Non-operating temperature (compact models): -25 to 70 C
- Non-operating humidity (compact models): 5 to 95% non-condensing
- Non-operating altitude (compact models): 0 to 4570 m
FAQs
Q: Does this power supply provide PoE?
A: Yes. It is the PoE variant of the compact firewall power supply. On the 1210CP it powers four 802.3at PoE ports, up to 30W per port and 120W in total.
Q: Which firewalls does it work with?
A: It is for Cisco Secure Firewall compact desktop appliances, as listed among the 1200 Series compact-model accessories in the Cisco ordering guide.
Q: How does it differ from the non-PoE compact power supply?
A: The non-PoE unit does not supply PoE power. This 190W PoE-capable supply must be used in its place on PoE models such as the 1210CP.
Q: What AC input does it accept?
A: On the 1200 Series compact models the AC input range is 100-240V AC at 50-60 Hz.
Q: Can I use it as a spare or replacement?
A: Yes. Cisco lists it as a spare or accessory in the Secure Firewall ordering guide, so it suits replacing a PoE power supply on a compact model.
