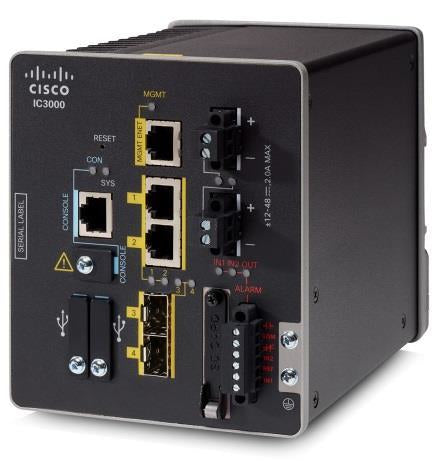

• Cisco IC3000-2C2F-K9 industrial router with 2x RJ45 and 2x SFP ports
1 1

Cisco

Cisco IC3000-2C2F-K9 | IC3000 Industrial Compute Gateway, 2x RJ45, 2x SFP, DC

IC3000-2C2F-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco IC3000 is a DIN-rail mounted, ruggedised industrial compute gateway that hosts IoT applications at the network edge using Cisco IOx. It is aimed at harsh industrial environments such as smart factories and intelligent roadways, where edge analytics can cover traffic pattern detection, hazardous weather warnings and road condition detection.

This IC3000-2C2F-K9 model provides 2 x 10/100/1000 copper Ethernet ports and 2 x SFP fibre ports, plus a dedicated 10/100/1000 management port. It is built around a 4-core Intel Rangeley industrial-temperature CPU with 8 GB DRAM, 16 GB onboard flash and 128 GB mSATA storage. Power comes from dual internal DC inputs with a 9.6 to 60 VDC range, drawing 24 W. The unit includes a perpetual licence, while Cisco IoT Field Network Director is a separate subscription for fleet management.

It works with the ruggedised SFPs GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-FE-100FX-RGD= and GLC-FE-100LX-RGD=. Hardware-based anti-counterfeit and anti-tamper protection, secure boot and application signing help keep edge deployments secure.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Hosts edge applications using Cisco IOx, with development in any programming language or OS
- Zero-touch provisioning to reduce IoT edge deployment cost
- Device and application lifecycle management at scale via Cisco IoT Field Network Director
- Secure boot loads only the genuine Cisco Linux kernel
- Application signing and verification before deployment, plus container isolation
- AAA with role-based access control, RADIUS and LDAP authentication, and audit trails
- Industrial and hazardous-location certifications including IEEE 1613, IEC 61850-3, NEMA TS-2, EN 50155 and UL 121201 Class I Div 2

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product type: Industrial compute gateway
- Copper ports: 2 x 10/100/1000
- SFP fibre ports: 2
- Management port: Dedicated 10/100/1000
- Processor: 4-core Intel Rangeley (industrial temperature)
- Memory: 8 GB DRAM (soldered)
- Onboard flash: 16 GB
- Storage: 128 GB mSATA
- Expansion: SD card slot
- Console: Mini-USB and RJ-45
- Alarm I/O: 2 alarm inputs, 1 Form C alarm output relay
- Power supply: Dual internal DC
- Nominal input voltage: 12, 24 or 48 VDC
- Input range: 9.6 to 60 VDC
- Power consumption: 24 W
- Mounting: DIN-rail
- Dimensions (H x W x D): 13 x 11.2 x 16 cm (5.2 x 4.4 x 6.3 in)
- Weight: 1.9 kg (4.2 lb)
- MTBF: 376,580 hours
- Security hardware: Anti-counterfeit, anti-tamper chip

FAQs

Q: Does the IC3000-2C2F-K9 need a software licence?
A: The unit includes a perpetual licence with a one-time payment. Cisco IoT Field Network Director is a separate subscription (1, 3 or 5 years) used for fleet management.

Q: How is the IC3000-2C2F-K9 powered?
A: It uses dual internal DC inputs with nominal 12, 24 or 48 VDC and a 9.6 to 60 VDC range, drawing 24 W. It does not provide PoE. PWR-IE50W-AC= and PWR-IE50W-AC-IEC= are listed as power supply options.

Q: Which SFP modules does it support?
A: The ruggedised SFPs GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-FE-100FX-RGD= and GLC-FE-100LX-RGD= are supported in the two SFP ports.

Q: What software does it run for edge applications?
A: It supports Cisco IOx for hosting applications at the edge and can be managed with Cisco IoT Field Network Director.

Q: Can it be used in hazardous locations?
A: It carries hazardous-location certifications including UL 121201 Class I Div 2 and ATEX/IECEx Zone 2. Deployment must meet the relevant requirements, such as installation in an IP54 enclosure.
