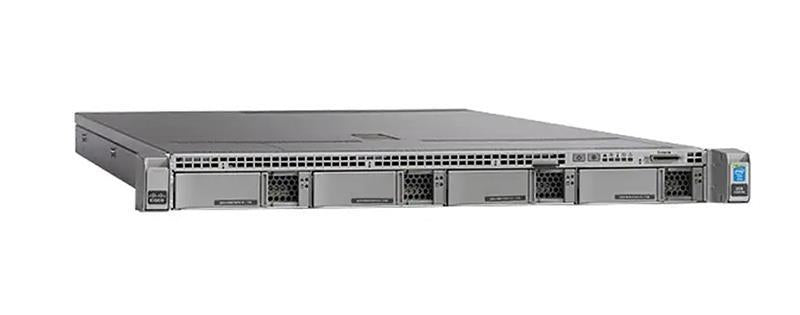

• Cisco FMC1600-K9 silver 1U rackmount firewall management center
1 1

Cisco

Cisco FMC1600-K9 | Secure Firewall Management Center 1600, 50 Devices

FMC1600-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Secure Firewall Management Center 1600 is a 1RU rack-mount appliance for centralised management of Cisco Secure Firewall and Firepower Threat Defense devices. It brings policy, event analysis and malware investigation into a single console, and supports high availability pairing for resilience. It suits small to mid-size deployments that need one point of control across their firewalls.

This 1600 chassis manages up to 50 devices and handles up to 30 million IPS events. It is fitted with two 770-W AC hot-swappable power supplies in a 1+1 redundant arrangement and 32 GB of DDR4 memory. Connectivity includes two fixed SFP+ ports qualified for SFP-10G-SR and SFP-10G-LR optics, plus two built-in RJ-45 management ports, with additional ports usable for secondary management or event traffic.

It runs Cisco Firepower and Secure Firewall Management Center software, and managed devices are licensed separately through Smart Licensing. The appliance fits a standard 19-inch 4-post EIA rack with front-to-rear airflow, and a spare power supply is available as FMC-M5-PS-AC-770W=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Centralised management of Cisco Secure Firewall and Firepower Threat Defense policies, events and devices
- Visibility into network activity with detection of suspicious and malicious traffic and custom rule creation
- Application control, intrusion prevention, URL filtering and advanced malware protection managed from one console
- Customisable, template-based reporting and dashboards
- High availability pairing support
- Secure boot validates the integrity of Cisco software at boot
- Common Criteria, FIPS 140-2, DoDIN APL and USGv6 certifications on specified software versions
- Redundant hot-swappable power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: FMC1600-K9 (1600 chassis)
- Maximum managed devices: 50
- Maximum IPS events: 30 million
- Form factor: 1RU rack-mount
- Rack mount: Standard 19-in. 4-post EIA rack
- Memory: Two 16-GB DDR4 RDIMMs (32 GB)
- Power supplies: Two 770-W AC, hot-swappable, 1+1 redundant
- Power supply input connector: IEC320 C13/C15
- Power consumption: 2626 BTU/hr
- SFP+ ports: Two fixed, qualified for SFP-10G-SR and SFP-10G-LR
- Management interface: Two built-in RJ-45 ports, 100 Mbps, 1 Gbps and 10 Gbps supported
- Management port usage: eth0 primary, eth1-eth3 secondary management or event ports
- Console port: RJ-45 serial, RS-232
- USB ports: Two USB 3.0 Type A
- VGA port: One DB-15, enabled by default
- High availability: Supported
- Airflow: Front to rear
- Dimensions (H x W x D): 1.7 x 16.89 x 29.8 in. (4.32 x 43.0 x 75.6 cm)
- Operating temperature: 10 to 35 C, derated with altitude
- Non-operating temperature: -40 to 65 C
- Spare power supply: FMC-M5-PS-AC-770W=

FAQs

Q: Do I need extra licences to use this management centre?
A: The FMC1600-K9 is the management chassis. The Secure Firewall devices it manages are licensed separately through Smart Licensing.

Q: How many firewalls can this appliance manage?
A: It manages up to 50 devices and up to 30 million IPS events.

Q: Which optics work in the SFP+ ports?
A: The two fixed SFP+ ports are qualified for the genuine Cisco SFP-10G-SR and SFP-10G-LR.

Q: Does it support high availability?
A: Yes. Two management centres can be paired for high availability.

Q: What power does it use?
A: It has two 770-W AC hot-swappable power supplies in a 1+1 redundant arrangement, with IEC320 C13/C15 inputs. A spare unit is FMC-M5-PS-AC-770W=.

Q: What software does it run and manage?
A: It runs Cisco Firepower and Secure Firewall Management Center software and manages Firepower Threat Defense devices. Check the Cisco Firepower Compatibility Guide for supported versions.
