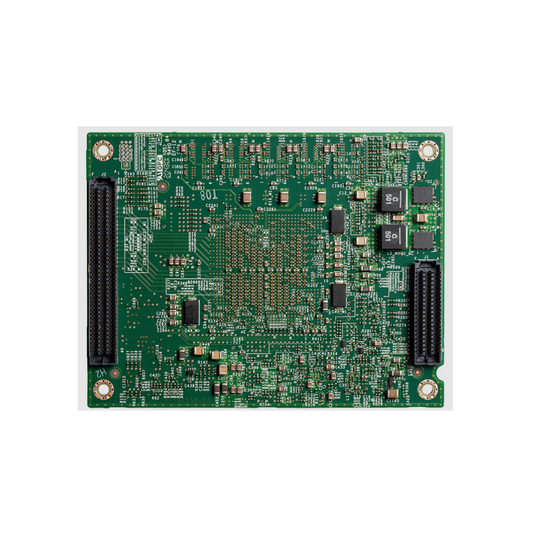

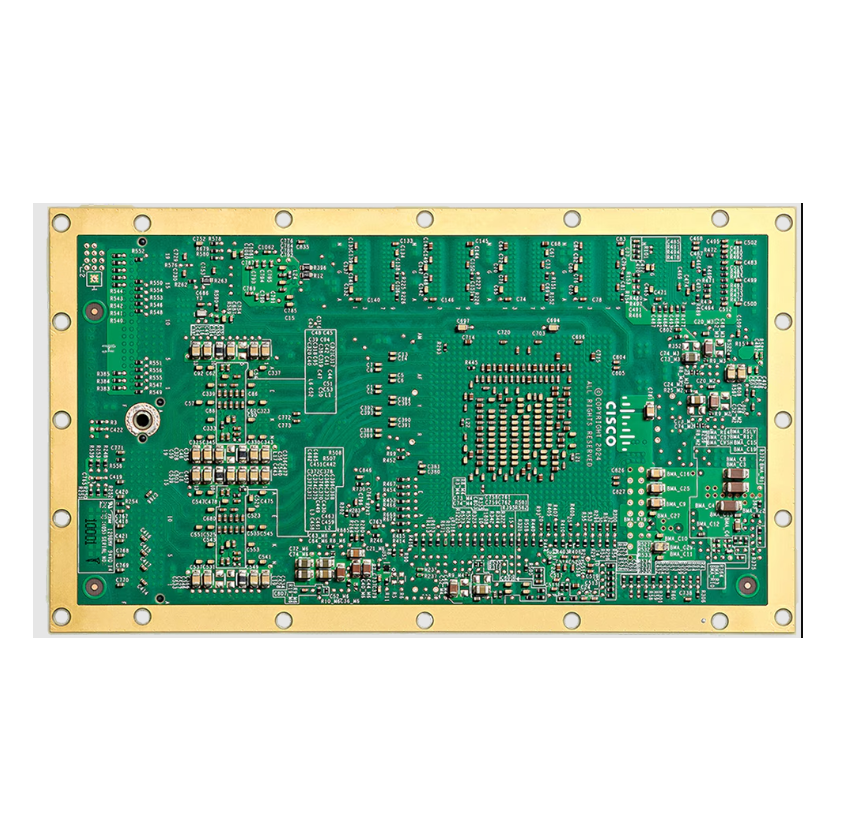

• Cisco ess-9300-8x16t-w-a catalyst ess9300 xmc switch circuit board with gold edge connectors and intricate electronic components

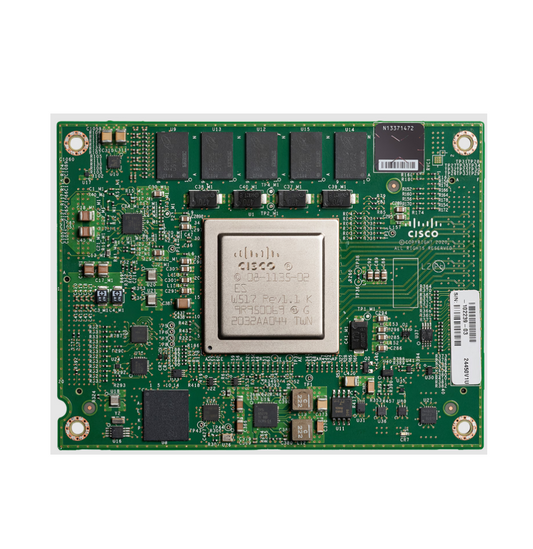

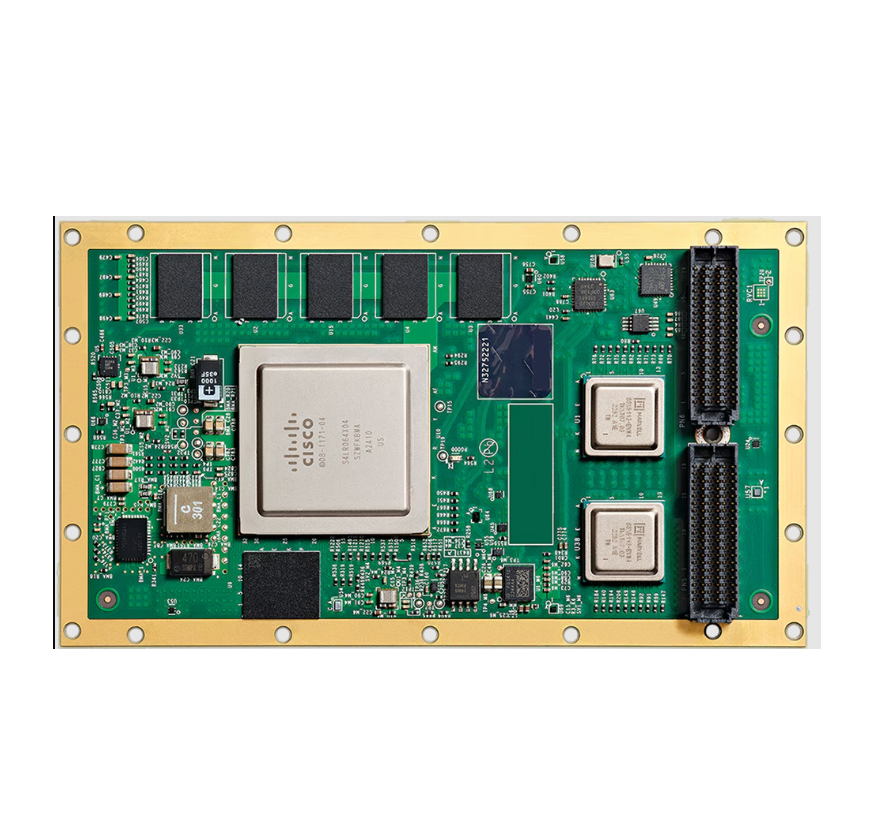

  • Cisco ess-9300-8x16t-w-a catalyst ess9300 xmc+ switch circuit board with green pcb and silver central processor chip
1 2

Cisco

Cisco ESS-9300-8X16T-W-A | Catalyst ESS9300 XMC+ Switch, 8x 10G, 16x 1GBASE-T

ESS-9300-8X16T-W-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst ESS9300 Embedded Series is a ruggedised XMC+ (VITA 88) mezzanine switch card for defence and military embedded systems. This SKU plugs into the Curtiss-Wright VPX3-623 3U OpenVPX carrier module and is aligned with SOSA and CMOSS architectures. It suits mobile ground and airborne tactical data centres, JADC2 and JWCC network integration, and C5ISR and EW systems.

The card provides eight 10G interfaces, made up of two 10GBASE-KR control plane interfaces and six fixed optical 10GBASE-SR interfaces on the rear VPX connector. It also provides sixteen 1000BASE-T ports, of which ten are usable on the VPX3-623 carrier. It forwards at line rate on all ports and packet sizes, and supports 8 queues, 16,000 MAC addresses, 1000 VLAN IDs and 32 VRFs. This SKU is the North America variant and ships with Layer 2 and Layer 3 features, including the Network Advantage feature set.

Power is drawn from the carrier at 3.3VDC and +12VDC, with typical consumption under 35W depending on carrier configuration. Industrial-grade components are rated from -40 to 85 C, and the card measures 130 x 74 mm and weighs under 200 g. It runs Cisco IOS XE with the familiar Cisco CLI and a built-in WebUI.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 10G and 1G links supporting SOSA and CMOSS network connectivity
- Runs Cisco IOS XE with familiar Cisco CLI and built-in WebUI
- Layer 2 and Layer 3 features with Network Advantage
- Security: zeroization, secure boot, MACsec-128 and MACsec-256, 802.1X, DHCP snooping, dynamic ARP inspection, IP Source Guard
- Layer 3 routing: OSPF, RIP, IS-IS, EIGRP, BGP, PBR, VRF-lite, PIM, HSRP, VRRP, BFD
- QoS: ingress policing, rate limiting, egress queuing and shaping, auto QoS
- Two physical alarm inputs and one relay output for enclosure integrity
- Industrial-grade components rated -40 to 85 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: XMC+ mezzanine card, VITA 88
- Dimensions (W x D): 130 x 74 mm (5.1 x 2.9 in.)
- Weight: under 200 g (under 7 oz)
- Control plane interfaces: 2x 10GBASE-KR
- Optical interfaces: 6x fixed 10GBASE-SR on rear VPX connector
- Copper interfaces: 16x 1000BASE-T (10 usable on the Curtiss-Wright VPX3-623 carrier)
- Console: LVCMOS (3.3V)
- Forwarding rate: Line rate for all ports and all packet sizes
- Queues: 8
- VRF: 32 (requires Network Advantage)
- MAC addresses: 16,000
- VLAN IDs: 1000
- IGMP groups: 1000
- STP instances: 128
- GRE tunnels: 10
- Power supply: 3.3VDC and +12VDC (+/-3%)
- Power consumption: under 35W typical, depending on carrier configuration
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Operating altitude: 4.572 km (15,000 ft) at -40 to 74 C; 12.2 km (40,000 ft) at -40 to 25 C
- Nonoperating altitude: 12.2 km (40,000 ft)

FAQs

Q: Which carrier module does this switch card fit?
A: It is an XMC+ (VITA 88) mezzanine card designed to plug into the Curtiss-Wright VPX3-623 3U OpenVPX carrier module. It is aligned with SOSA and CMOSS architectures.

Q: Does it need a separate software licence?
A: This SKU ships with Layer 2 and Layer 3 features and lists the Network Advantage feature set, so features such as 32 VRFs are covered. It runs Cisco IOS XE.

Q: How is it powered?
A: It draws 3.3VDC and +12VDC (+/-3%) from the VPX3-623 carrier. Typical consumption is under 35W depending on the carrier configuration. It does not provide PoE.

Q: How many 1G ports can I actually use?
A: The card provides sixteen 1000BASE-T interfaces, and ten of these are usable on the Curtiss-Wright VPX3-623 carrier module.

Q: What 10G interfaces does this variant provide?
A: It provides two 10GBASE-KR control plane interfaces and six fixed optical 10GBASE-SR interfaces on the rear VPX connector, for eight 10G interfaces in total.
