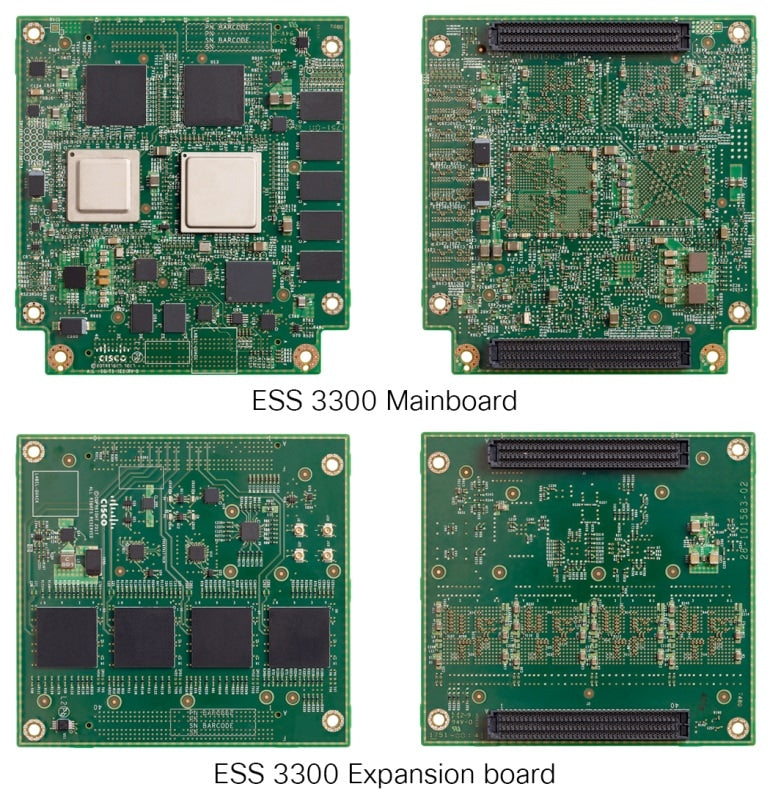

• Cisco ess 3300 24-port embedded switch mainboard and expansion board with black integrated circuits and gold mounting holes
1 1

Cisco

Cisco ESS-3300-24T-NCP-E | ESS 3300 24-Port Embedded Switch, No Cooling Plate, Network Essentials

ESS-3300-24T-NCP-E

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Embedded Services 3300 (ESS 3300) is a board-level Ethernet switch for OEMs and integrators building custom rugged solutions. This SKU pairs the ESS 3300 mainboard with the 16-port expansion board to give a 24-port configuration, with no cooling plate, and runs Cisco IOS XE with Network Essentials software.

The mainboard provides 2 x 1G/10G SFP+ uplink ports (copper or fibre), 4 x 1G combo ports and 4 x 10/100/1000BASE-T ports. The expansion board adds 4 x 1G combo ports and 12 x 10/100/1000BASE-T ports. Forwarding is line rate on all ports and packet sizes, with 4 GB DDR4 DRAM, 4 GB onboard eMMC flash and RS-232 and USB console access. Typical power draw is 24 W for both boards, from +3.3Vdc and +5Vdc inputs, and the components are rated for -40 to 85 C operation.

It suits tactical data centres, HD video surveillance, transportation, defence, mining and oil and gas deployments where a small, low-power switch must be designed into a custom enclosure. Supported optics include GLC-SX-MM, GLC-LH-SM, GLC-TE, SFP-10G-SR, SFP-10G-LR and SFP-H10G-CU1M, and the mainboard and expansion board join over commercially available board-to-board connectors.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 10G uplinks with 1G downlinks for bandwidth-intensive uses such as video surveillance and tactical data centres
- Small form factor of about 4 x 4 inches with a port expansion board
- Industrial-grade design rated -40 to 85 C at component level
- Cisco IOS XE with familiar CLI and Web UI management
- Layer 2 switching, QoS, REP redundancy and IEEE 1588 PTP v2 on 1G ports
- Security including 802.1X, DHCP snooping, DAI, IP source guard, MACsec-128 on 1G downlink ports, SSH, SNMPv3 and TACACS+/RADIUS
- NETCONF/RESTCONF, SNMP, Flexible NetFlow and SPAN management
- Optional PoE (802.3af/at) on up to 24 ports, provided by the integrator's design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Configuration: Mainboard + 16-port expansion board (24 ports)
- Uplinks: 2 x 1G/10G SFP+ (copper or fibre)
- Main board ports: 4 x 1G combo (10/100/1000BASE-T or 1G/100M SFP), 4 x 10/100/1000BASE-T
- Expansion board ports: 4 x 1G combo (10/100/1000BASE-T or 1G/100M SFP), 12 x 10/100/1000BASE-T
- Console: RS-232 and USB
- Memory: 4 GB DDR4 DRAM
- Flash: 4 GB onboard eMMC (1.5 GB user accessible)
- Optional SD card: 4 GB (optional, not shipped by default)
- Power inputs: +3.3Vdc and +5Vdc (+/-3%)
- Power consumption: 16 W typical main board, 8 W typical expansion board, 24 W typical both boards
- Forwarding rate: line rate for all ports and packet sizes
- Queues: 8
- MAC addresses: 16K
- VLAN IDs: 256
- IGMP groups: 1K
- STP instances: 256
- ACL (PACL, VACL): 3K rules shared across ACL and QoS
- Jumbo frames: 8996 bytes
- Operating temperature: -40 to 85 C (component level, measured at heat spreader plate)
- Storage temperature: -40 to 85 C
- Dimensions (W x D): mainboard 103 x 96 mm, expansion board 91 x 96 mm
- Weight: mainboard 81 g, expansion board 59 g
- Cooling: no cooling plate (NCP)
- Software: Cisco IOS XE, Network Essentials

FAQs

Q: Which licence does this SKU include?
A: It ships with the Network Essentials software licence, indicated by the -E suffix. Routing and virtualisation features such as OSPF, EIGRP, VRF-lite and PIM need the Network Advantage licence.

Q: What power does the ESS-3300-24T-NCP-E need?
A: It runs from board-level +3.3Vdc and +5Vdc (+/-3%) inputs. Typical consumption is 16 W for the main board, 8 W for the expansion board and 24 W for both.

Q: Does it support PoE?
A: PoE (802.3af/at) is optional and is provided by the integrator's own power design, with PoE possible on up to 24 ports.

Q: Which optics work with the SFP+ uplinks?
A: Supported optics include GLC-SX-MM, GLC-LH-SM, GLC-TE, GLC-T-RGD, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-10G-T-X and SFP-H10G-CU1M, plus CWDM/DWDM and BiDi 10G variants.

Q: How does this SKU differ from other ESS 3300 variants?
A: This SKU combines the mainboard and the 16-port expansion board for 24 ports, has no cooling plate, and includes Network Essentials software.
