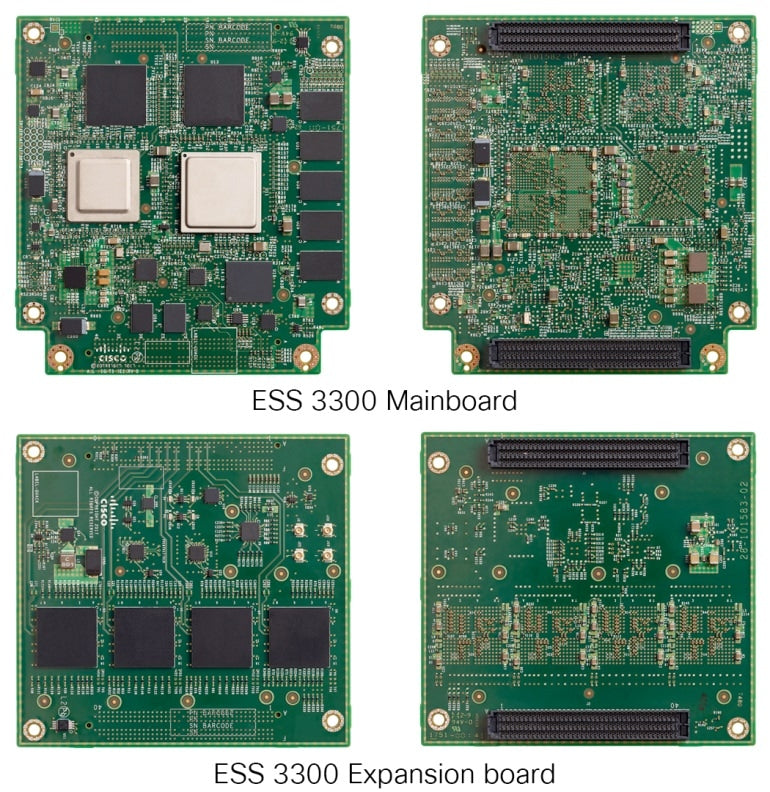

• Cisco ess 3300 24-port embedded switch mainboard and expansion board with black integrated circuits and gold mounting holes
1 1

Cisco

Cisco ESS-3300-NCP-A | ESS 3300 Embedded Switch, 2x 10G SFP+, Network Advantage

ESS-3300-NCP-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco Embedded Services 3300 Series (ESS 3300) is a board-level Ethernet switch for system integrators who need to build custom, rugged, low-power networking into their own hardware. This ESS-3300-NCP-A is the mainboard only with no cooling plate, supplied with the Network Advantage software image, and measures just 103 mm x 96 mm and 81 g. It suits defence, oil and gas, transportation and mining designs, including tactical data centres, HD video surveillance and self-driving vehicles.

The mainboard provides 2 x 1G/10GE SFP+ uplinks, 4 x 1G combo ports (10/100/1000BASE-T or 1G/100M SFP) and 4 x 10/100/1000BASE-T ports, with RS-232 and USB console access. It has 4 GB DDR4 DRAM and 4 GB onboard eMMC flash, forwards at line rate on all ports and packet sizes, and runs Cisco IOS XE. It is powered from +3.3Vdc and +5Vdc inputs supplied by the integrator's carrier board, with 16 W typical consumption for the mainboard alone.

Network Advantage adds Layer 3 routing, VRF-lite, PIM, HSRP/VRRP, BFD and MACsec-256 on top of the Network Essentials feature set. The optional 16-port expansion board connects through board-to-board connectors, and the board works with Cisco SFP and SFP+ optics such as GLC-SX-MM, GLC-LH-SM, SFP-10G-SR and SFP-10G-LR.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 10G uplinks with 1G downlinks for bandwidth-intensive uses such as video surveillance and tactical data centres
- Small-form-factor, rugged design for harsh environments
- IOS XE security including 802.1X, port security, DHCP snooping, DAI, IP source guard and MACsec
- Web UI and Cisco CLI with NETCONF/RESTCONF, SNMP and Flexible NetFlow
- Layer 2 switching with REP, EtherChannel, RSTP, MSTP and PVST+
- Quality of service with ingress policing, rate limiting, egress queuing and shaping, and auto QoS
- IEEE 1588 PTPv2 on 1G ports
- Network Advantage routing: OSPF, RIP, IS-IS, EIGRP, PBR, VRF-lite, PIM, BFD, HSRP and VRRP

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Uplink ports: 2 x 1G/10GE SFP+ (copper or fibre)
- Combo ports: 4 x 1G (10/100/1000BASE-T or 1G/100M SFP)
- Copper ports: 4 x 10/100/1000BASE-T
- Console: RS-232 and USB
- Memory: 4 GB DDR4 DRAM
- Storage: 4 GB onboard eMMC flash, 1.5 GB user accessible
- Power input: +3.3Vdc and +5Vdc (+/-3%)
- Power consumption: 16 W typical (mainboard)
- Dimensions (W x D): 103 mm x 96 mm
- Weight: 81 g
- Forwarding rate: line rate for all ports and packet sizes
- Queues: 8
- MAC addresses: 16K
- VLAN IDs: 256
- VRF instances: 16
- IPv4 indirect routes: 3000
- IPv6 indirect routes: 512
- Jumbo frames: 8996 bytes
- Operating temperature: -40 to 85 C (component local ambient)
- Storage temperature: -40 to 85 C
- MTBF: 1,065,092 hours
- Software: Cisco IOS XE, Network Advantage

FAQs

Q: Which software image does this SKU run?
A: It runs Cisco IOS XE with the Network Advantage image. This adds Layer 3 routing, VRF-lite, PIM, HSRP/VRRP, BFD and MACsec-256 over the Network Essentials feature set.

Q: How is the board powered?
A: It needs +3.3Vdc and +5Vdc (+/-3%) supplied by the integrator's carrier or system board. Typical consumption is 16 W for the mainboard alone. There is no onboard PoE supply.

Q: What does the 'NCP' in the SKU mean?
A: NCP means No Cooling Plate. This is the mainboard only, and thermal management is handled by the integrator's own enclosure design.

Q: Can I add more ports to this board?
A: Yes. An optional 16-port expansion board (ESS-3300-16T-NCP or -CON) connects through board-to-board connectors. It is a separate item and is not part of the -NCP-A mainboard SKU.

Q: Which optics work with the SFP+ uplinks?
A: Supported Cisco optics include GLC-SX-MM, GLC-LH-SM, GLC-TE, SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, SFP-H10G-CU1M and SFP-10G-T-X, plus CWDM and DWDM SFPs.
