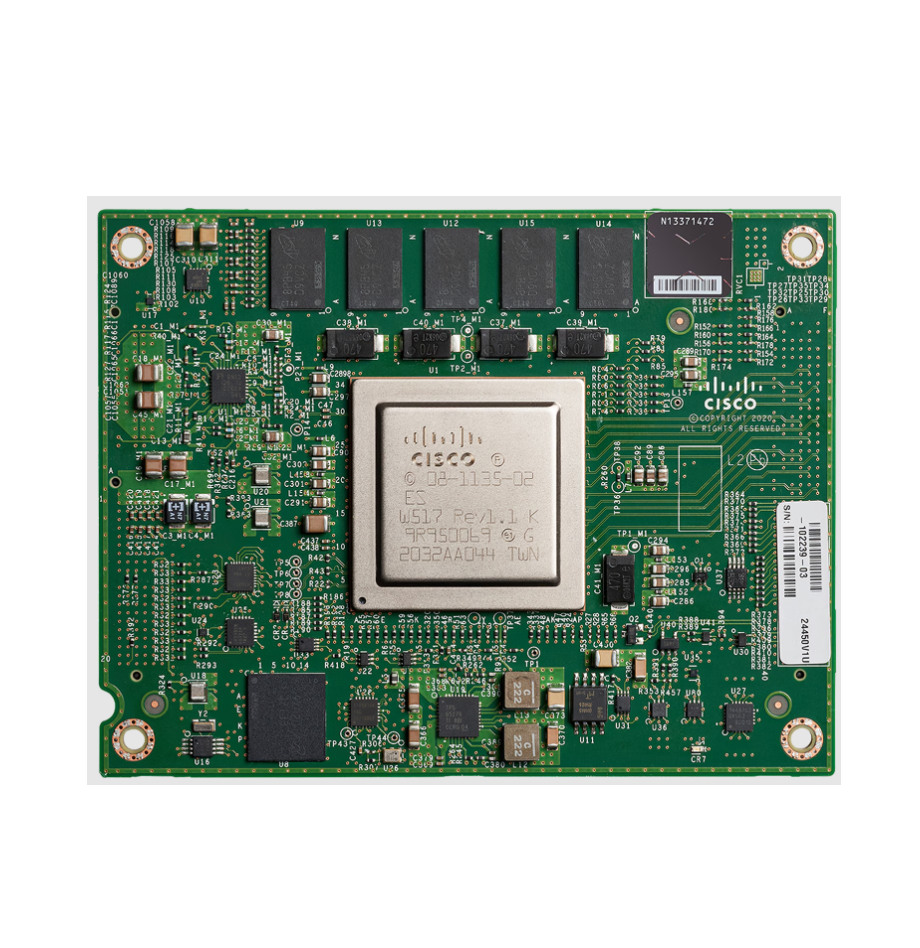

• Cisco asr-1002-x router board with green pcb silver processor and black memory modules in Catalyst ESS9300 10x 10G SFP+ switch

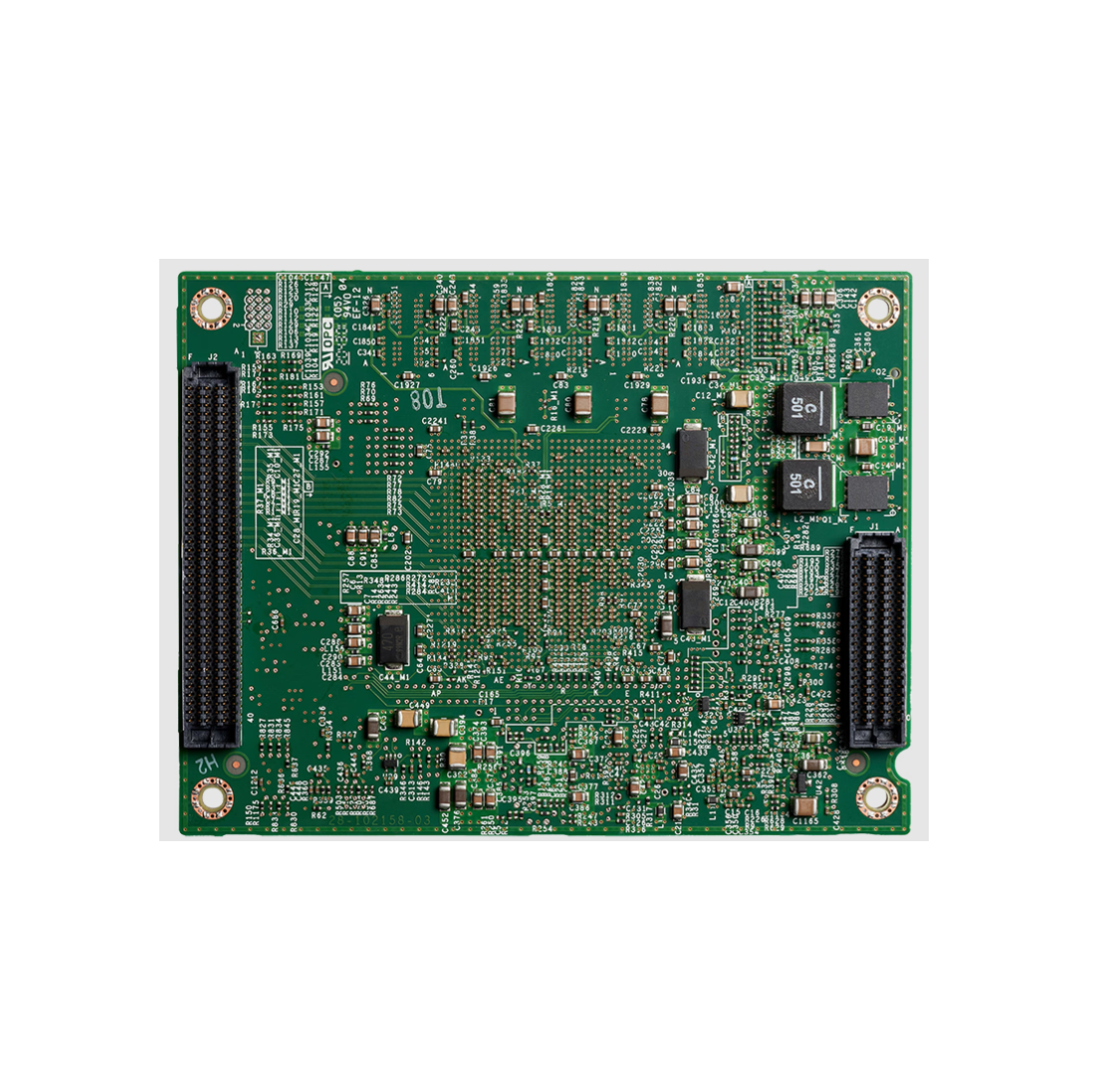

  • Green rectangular circuit board with black connectors and electronic components for cisco catalyst ess9300 10x 10g sfp+ embedded switch
1 2

Cisco

Cisco ESS-9300-10X-E | Catalyst ESS9300 10x 10G SFP+ Embedded Switch, Network Essentials

ESS-9300-10X-E

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst ESS9300 Embedded Series is a ruggedised, small-form-factor 10G switch board for integrators building tactical, outdoor and mobile solutions that need low power, small size and ruggedisation. Typical applications include defence, oil and gas, transportation and mining. It runs Cisco IOS XE and is delivered as a bare board with no cooling plate, so a qualified integrator transforms it into an end product.

The board provides ten 10G/1G SFP+/SFP ports with line-rate forwarding on all ports and all packet sizes, plus a 10/100/1000BASE-T management port and RS-232 and USB console access. It carries 4 GB DDR4 DRAM and 8 GB eMMC flash (2.5 GB usable), measures 110 x 85 mm, weighs 88 g and is rated for -40 to 85 C. Power is supplied by the integrator at 3.3VDC and +5VDC, with typical consumption of 35 W. This SKU ships with the Network Essentials licence, which covers the Layer 2 feature set. Layer 3 routing, VRF and MACsec-256 need the optional Network Advantage upgrade.

It works with approved 1G SFPs and 10G SFP+ optics such as GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, SFP-10G-SR= and SFP-10G-LR=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Ten 10G ports for bandwidth-intensive uses such as tactical data centres, HD video surveillance and self-driving vehicles, with 1G operation when 1G SFPs are fitted
- Enterprise-grade Layer 2 switching feature set with 802.1Q, RSTP/MSTP, PVST+, LLDP, UDLD and EtherChannel/LACP
- MACsec-128 at line rate on all ten 10G ports using certificate-based 802.1X with EAP-TLS
- Secure boot, Cisco anti-counterfeit technology and zeroization to protect credentials if hardware is stolen
- Physical alarm relay with 2 alarm inputs and 1 relay output
- QoS with ingress policing, rate limiting, egress queuing and shaping, and auto QoS
- IGMPv1/v2/v3 snooping, IGMP filtering and querier for multicast traffic
- Management through SNMP, syslog, SPAN, Flexible NetFlow, NTP and a built-in Web UI alongside the familiar Cisco CLI

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Interfaces: 10 x 10G/1G SFP+/SFP ports (approved optics)
- Management port: 1 x 10/100/1000BASE-T
- Console: RS-232 and USB
- Memory: 4 GB DDR4 DRAM
- Flash storage: 8 GB onboard eMMC (2.5 GB usable)
- Power input: 3.3VDC and +5VDC (+/-3%)
- Power consumption: 35 W typical
- Forwarding rate: line rate on all ports and all packet sizes
- Number of queues: 8
- MAC addresses: 16,000
- VLAN IDs: 1000
- IGMP groups: 1000
- STP instances: 128
- GRE tunnels: 10
- Connectors: SAMTEC SEARAY SEAF-20-05.0-S-06-2-A-K 120-pin (J1) and SEAF-40-05.0-S-06-2-A-K 240-pin (J2)
- Dimensions (W x D): 110 x 85 mm (4.3 x 3.3 in.)
- Weight: 88 g (3.1 oz)
- Operating temperature: -40 to 85 C (-40 to 185 F)
- Storage temperature: -40 to 85 C (-40 to 185 F)
- Operating altitude: 4.572 km at -40 to 74 C; 12.2 km at -40 to 25 C
- MTBF: 48.2 years (Ground, fixed, controlled)
- Software: Cisco IOS XE, Network Essentials

FAQs

Q: Which licence does this SKU include?
A: It ships with the Cisco IOS XE Network Essentials licence, indicated by the -E suffix. Network Advantage is an optional upgrade, ordered as ESS9300-NW-A=.

Q: Does it support Layer 3 routing?
A: Network Essentials provides the Layer 2 feature set. Layer 3 routing, VRF and MACsec-256 require the Network Advantage licence upgrade.

Q: How is the board powered?
A: It takes a board-level DC input of 3.3VDC and +5VDC (+/-3%), with typical consumption of 35 W. It has no onboard PoE, and power is provided by the integrator's end product.

Q: Which optics does it work with?
A: It supports approved 1G SFPs and 10G SFP+ optics, including GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-T-RGD=, SFP-10G-SR=, SFP-10G-LR= and SFP-10G-LR-X=. See the Cisco datasheet for the full list.

Q: Is it a finished switch I can rack mount?
A: No. It is a small form factor embedded board with no cooling plate, designed to be built into an end product by a qualified integrator.
