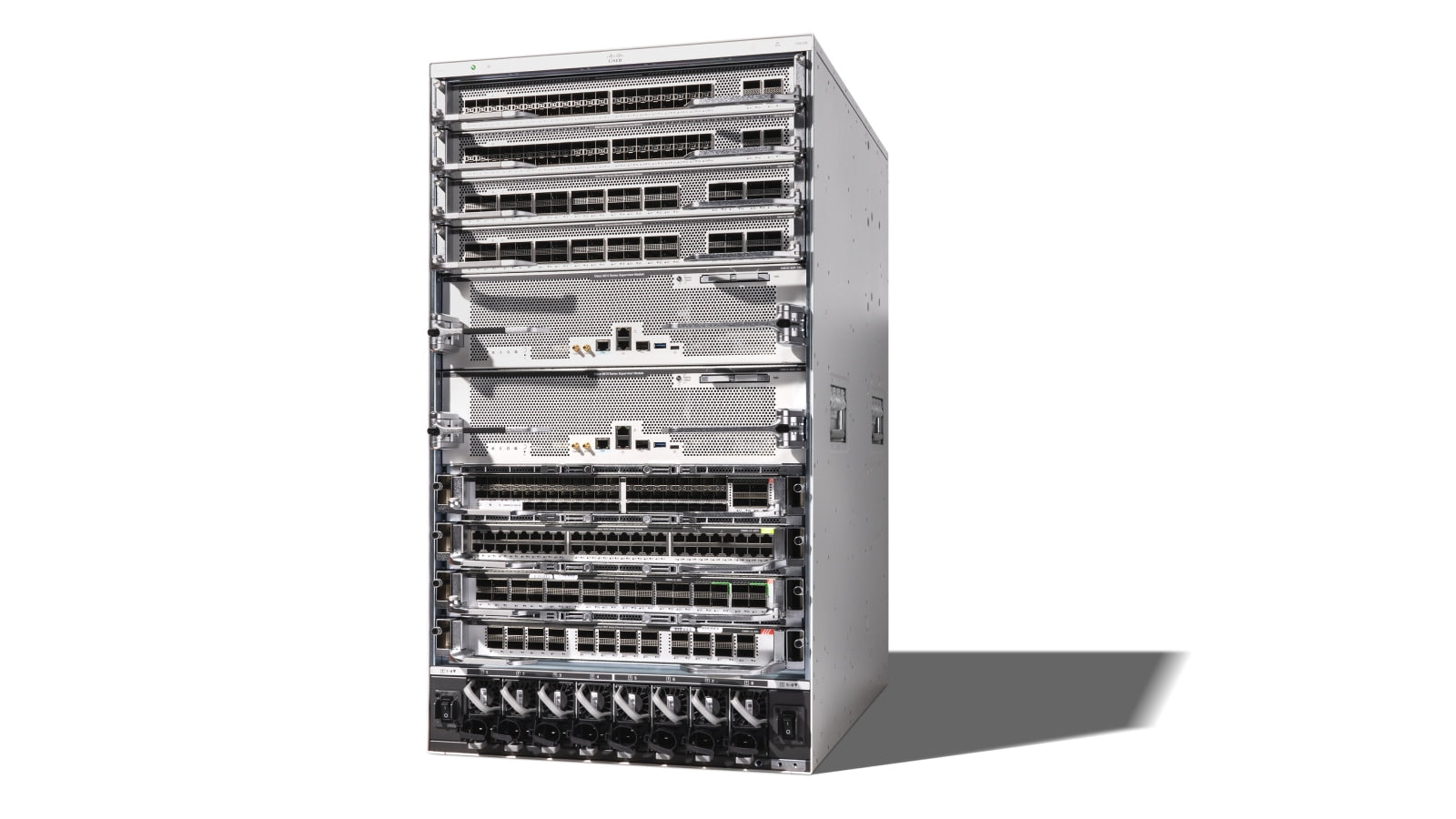

• Cisco C9610R Nexus 9000 modular chassis switch in silver and black
1 1

Cisco

Cisco C9610R | Catalyst C9610 10-Slot Modular Chassis, Dual-Supervisor, 8 Line Cards

C9610R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9610R is a next-generation modular campus core chassis designed for high-density enterprise deployments. With 10 slots supporting dual redundant supervisors and eight line cards, it delivers exceptional scalability up to 448 ports of 10/25/50GbE or 256 ports of 40/100GbE, with front-to-back airflow and N+N power redundancy for maximum availability.

Features

10-slot modular architecture with 8 line card slots and 2 dedicated supervisor slots
- 1+1 redundant supervisor engines with Stateful Switchover (SSO) and Non-Stop Forwarding (NSF)
- In-Service Software Upgrade (ISSU) for zero-downtime maintenance
- Passive cable backplane supporting up to 112GbE SerDes technology
- Front-to-back airflow optimized for enterprise campus wiring closets and data centers
- Front accessibility for supervisors, line cards, and power supplies; rear-accessible fan trays
- Hot-swappable and field-replaceable components (supervisors, line cards, PSUs, fan trays)
- N+1 and N+N power redundancy with mixed AC/DC support (220V AC required)
- Energy Star Titanium/Platinum efficiency power supplies (up to 95% efficiency)
- Flexible SDM ASIC templates for optimized resource allocation (Layer 2/Layer 3 profiles)
- ACT2 Trust Anchor Module (TAm) chip for hardware authentication on all modules
- Embedded RFID tags for automated asset and inventory management
- Support for advanced Layer 2 features: VLANs, STP, RSTP, MST, StackWise Virtual
- Support for advanced Layer 3 features: OSPF, BGP, EIGRP, VRF-lite, policy-based routing
- Comprehensive security: MACsec, TrustSec, 802.1X, dynamic ARP inspection, DHCP snooping
- Advanced QoS with 8 egress queues and flexible queuing policies
- Full IPv4 and IPv6 routing table support with shared TCAM allocation
- Cisco DNA Center integration for cloud-based management and automation
- Telemetry and analytics support for network visibility and troubleshooting
- StackWise Virtual for simplified management of distributed core deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

10-slot modular chassis with 2 dedicated supervisor slots (slots 5 and 6) and 8 line card slots
- Supports up to 448 native 10GbE/25GbE/50GbE SFP56 ports or up to 256 native 40GbE/100GbE QSFP28 ports
- Supports up to 16 native 400GbE QSFP-DD ports (with compatible line cards)
- Up to 12.8 Tbps full-duplex bandwidth per slot, 51.2 Tbps total system throughput
- Compatible with Cisco C9610 Supervisor Engine 3 and 3XL (3.2 Tbps or 6.4 Tbps per supervisor)
- Supports current Cisco Catalyst 9600 Series line cards with optional adapter (C9610-LC-ADPT)
- 8 power supply slots supporting 2000W AC, 2000W DC, or 3000W AC PSUs
- N+1 and N+N redundant power modes with independent input circuits
- 4 hot-swappable fan trays (C9610-FAN) with front-to-back airflow, rear-accessible
- 1+1 redundant supervisor engines with SSO, NSF, and ISSU for zero-downtime upgrades
- RFID tags on chassis, supervisors, line cards, power supplies, and fan trays for asset management
- Rack-mountable form factor with included rack mounting kit
- MTBF: 257,200 hours
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Complies with IEC 60950-1, UL 60950-1, and Energy Star (Titanium/Platinum efficiency)

FAQs

Q: What supervisor engines are compatible with the C9610R chassis?
A: The C9610R supports two supervisor options: the C9610-SUP-3 (providing 3.2 Tbps full-duplex per supervisor) and the C9610-SUP-3XL (providing 6.4 Tbps full-duplex per supervisor). Both use Cisco Silicon One E100 or K100 ASICs and support 1+1 redundancy with stateful switchover (SSO) and non-stop forwarding (NSF).

Q: Can I use existing Cisco Catalyst 9600 Series line cards in the C9610R chassis?
A: Yes, the C9610R is backward compatible with current Cisco Catalyst 9600 Series line cards (C9600-LC and C9600X-LC models) when used with the optional C9610-LC-ADPT adapter. The chassis also supports new C9610-optimized line cards such as the C9610-LC-32CD and C9610-LC-40YL4CD.

Q: What power redundancy modes does the C9610R support?
A: The C9610R supports three power modes: Combined mode (all PSUs share load), N+1 redundancy (one standby PSU), and N+N redundancy (even number of PSUs on independent input circuits). For N+N mode with full redundancy, 3000W AC power supplies operating at 220V are required.

Q: What licensing is required for the C9610 Series?
A: The Cisco C9610 Series Smart Switches require Cisco Network Advantage Tier licensing. This is the only tier available for the C9610 platform and includes advanced Layer 2 and Layer 3 features, SDN capabilities, and full software image access.

Q: What is the maximum port density I can achieve with the C9610R?
A: Maximum port density depends on the line cards installed. The chassis can support up to 448 native 10/25/50GbE SFP56 ports (or up to 512 SFP ports with QSFP-to-4xSFP breakout cables), up to 256 native 40/100GbE QSFP28 ports, or up to 16 native 400GbE QSFP-DD ports across all eight line card slots.
