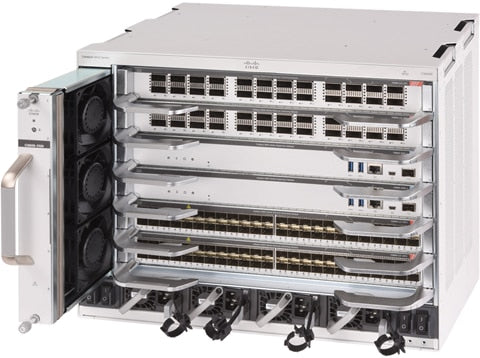

• Cisco C9606R 6-slot chassis in 9306 switch rack
1 1

Cisco

Cisco C9606R | Catalyst 9600 6-Slot Modular Chassis, 8U, 25.6 Tbps Capacity

C9606R

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9606R is a high-capacity modular chassis designed for enterprise campus core and aggregation deployments. With 6 slots supporting up to 25.6 Tbps switching capacity, dual redundant supervisor capability, and hot-swappable power supplies and fan trays, this 8U chassis delivers exceptional scalability and high availability. Its side-to-side airflow and front accessibility make it ideal for demanding network environments requiring always-on performance.

Features

Modular 6-slot chassis with 4 line card slots and 2 supervisor slots for flexible expansion
- Up to 25.6 Tbps switching capacity with 6.4 Tbps per slot bandwidth scalability
- High Availability with 1+1 redundant supervisors, SSO, NSF, and full ISSU support
- Hot-swappable components including supervisors, line cards, PSUs, and fan tray
- Side-to-side airflow optimized for enterprise campus environments
- Front and optional rear accessibility for supervisors, line cards, PSUs, and fan tray
- Embedded RFID tags for automated asset tracking and inventory management
- Supports up to 4 hot-swappable AC or DC power supplies with N+1 redundancy
- Field-replaceable fan tray with 9 independently controlled fans for cooling resilience
- Compatible with C9600-SUP-1 (UADP 3.0) and C9600X-SUP-2 (Silicon One Q200) supervisors
- Supports 400G/200G/100G/50G/25G/10G/1G line cards for multi-speed deployments
- Advanced automation via model-driven telemetry and programmability (YANG, NETCONF)
- Cisco Trust Anchor Module (TAM) for hardware-rooted security and integrity
- Seamless software upgrades and SMU hot patching without reboots
- Combined and N+1 power supply redundancy modes for mission-critical uptime
- Designed for enterprise campus core, aggregation, and collapsed-core architectures

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

Total Slots: 6 (4 line card slots, 2 supervisor engine slots)
- Switching Capacity: Up to 25.6 Tbps (12.8 Tbps full-duplex)
- Bandwidth per Slot: Up to 6.4 Tbps (3.2 Tbps full-duplex)
- Supported Supervisor Engines: C9600-SUP-1, C9600X-SUP-2
- Power Supply Bays: 4 (hot-swappable, supports AC and DC PSUs)
- Power Supply Options: 2000W AC/DC, 3000W AC
- Fan Tray: Single field-replaceable C9606-FAN with 9 independently controlled fans
- Dimensions (H x W x D): 35.43 x 44.2 x 40.9 cm (13.95 x 17.4 x 16.1 in)
- Rack Units: 8U
- Weight: 31.31 kg (69.03 lb) with 2 AC power supplies and fan tray; 25.36 kg (55.90 lb) chassis only
- Airflow: Side-to-side, optimized for enterprise wiring closets
- Accessibility: Full front access for all removable components; optional rear fan tray access
- Input Voltage: AC: 90V to 264V, 47 to 63 Hz; DC: -40V to -72V
- Operating Temperature: -5°C to 45°C (23°F to 113°F) up to 6000 feet
- High Availability: 1+1 redundant supervisors with SSO, NSF, and ISSU support
- RFID Asset Tracking: Embedded RFID tags in chassis, supervisors, line cards, PSUs, and fan tray
- MTBF: 4,113,900 hours (chassis); 452,570 hours (fan tray)

FAQs

Q: What supervisor engines are compatible with the C9606R chassis?
A: The C9606R supports the C9600-SUP-1 (with UADP 3.0 ASIC) and the C9600X-SUP-2 (with Cisco Silicon One Q200 ASIC). Both provide redundant supervisor capability for high availability deployments.

Q: How many line cards can be installed in the C9606R?
A: The C9606R chassis has 4 line card slots and 2 dedicated supervisor engine slots (slots 3 and 4), allowing up to 4 line cards plus dual redundant supervisors for maximum scalability and resilience.

Q: What is the maximum port density achievable with the C9606R?
A: Depending on line cards installed, the C9606R can scale up to 224 native 10G/25G/50G SFP56 ports, up to 128 native 40G/100G QSFP28 ports, or up to 8 native 400G QSFP-DD ports, making it ideal for high-density campus cores.

Q: Does the C9606R support hot-swappable components?
A: Yes, the C9606R features full hot-swappable design for supervisor engines, line cards, power supplies, and the fan tray, enabling maintenance and upgrades without network downtime.

Q: What redundancy modes are available for power supplies?
A: The C9606R supports combined mode and N+1 redundancy mode. In N+1 mode, additional PSUs safeguard against single PSU failure. AC and DC PSUs can be mixed if AC input voltage is 220V, and equal wattage PSUs are required in redundant mode.
