Cisco

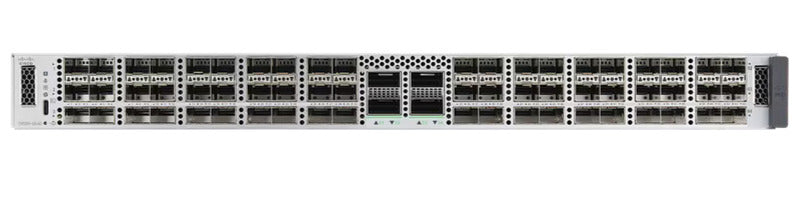

Cisco C9500X-60L4D-A | Catalyst 9500X 60-Port 50G Switch, 4x 400G, Network Advantage

C9500X-60L4D-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500X-60L4D is a fixed 1RU enterprise core and aggregation switch built on the Cisco Silicon One Q200 ASIC. It suits campus core, high-density 25/50G server or distribution aggregation with 400G uplinks, SD-Access and EVPN VXLAN fabric border or control plane roles, and MPLS or WAN services-edge deployments.

The port layout is 60 x 10/25/50G SFP56 ports, with 8 of them also accepting 1G SFP-1G-SX/LH optics, plus 4 x 40/100/200/400G QSFP-DD uplink ports. It delivers up to 9.2 Tbps switching capacity and 8 Bpps forwarding, with up to 256,000 MAC addresses and up to 2 million IPv4 routes. An 8-core 2.3-GHz x86 CPU, 32 GB DRAM and 32 GB flash support container-based application hosting. This SKU carries the Network Advantage perpetual licence, which is paired with a Catalyst or DNA Advantage subscription, and it runs Cisco IOS XE 17.10.1 or later.

Power comes from 1500W Platinum-rated supplies in a 1+1 redundant arrangement, with six field-replaceable fans in a selectable airflow direction. Optics compatibility is listed in the Cisco TMG matrix, and the Catalyst 9500 network modules (C9500-NM-8X/2Q) are not supported on this platform.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Programmable P4 pipeline on Silicon One Q200 with on-chip high-bandwidth memory and deep packet buffers
- Cisco StackWise Virtual with SSO and ISSU (ISSU from IOS XE 17.12.1)
- Line-rate 256-bit MACsec and WAN-MACsec encryption (HSEC key required)
- Advanced routing with OSPF, EIGRP, IS-IS, BGP, MPLS L3VPN, EoMPLS and MPLS-TE
- BGP EVPN VXLAN fabric spine, leaf and border support plus SD-Access border and control plane
- Container-based application hosting with pluggable SSD storage (240/480/960 GB)
- Model-driven programmability via NETCONF, RESTCONF and gNMI/gNOI with streaming telemetry and ZTP/PnP
- Secure Boot, image signing and Cisco Trust Anchor Module
- Field-replaceable N+1 redundant fan units with selectable airflow direction

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- ASIC: Cisco Silicon One Q200
- Port configuration: 60 x 10/25/50G SFP56 + 4 x 40/100/200/400G QSFP-DD
- 1G port density: 8 (SFP-1G-SX/LH optics only)
- Switching capacity: up to 9.2 Tbps
- Forwarding rate: 8 Bpps
- Buffer: 80 MB low-latency buffer and up to 8 GB HBM
- CPU: Intel 2.3-GHz x86 8-core
- DRAM: 32 GB
- Flash: 32 GB
- MAC addresses: up to 256,000
- IPv4 routes (indirect): up to 2,000,000
- IPv6 routes (indirect): up to 1 million
- VLAN IDs: 4,094
- Jumbo frames: 9,216 bytes
- Power supply: 1500W AC or DC, 1+1 redundant
- Rack units: 1 RU
- Dimensions (H x W x D): 4.39 x 44.45 x 55.37 cm
- Weight (chassis with 2 power supplies and fans): 12.75 kg
- Operating temperature: -5 to +45 C (front-to-back fans), -5 to +35 C (back-to-front fans)
- Heat output: 3,412 BTU/hr
- MTBF: 133,260 hours
- Minimum software: Cisco IOS XE 17.10.1

FAQs

Q: Which licence does the C9500X-60L4D-A include?
A: The -A SKU includes the perpetual Network Advantage licence. It is paired with a Catalyst or DNA Advantage subscription (C9500-DNX-A-60L-3Y/5Y/7Y) or the Cisco Networking Subscription, and Smart Licensing is used through a Smart Account.

Q: What power supplies does it use?
A: It uses C9K-PWR-1500WAC (1500W AC, 90-264 VAC) or C9K-PWR-1500WDC (1500W DC, -40 to -72 VDC) supplies. Two supplies provide 1+1 redundancy.

Q: Can the SFP56 ports run at 1G?
A: Yes, on 8 of the 60 ports, and only with SFP-1G-SX or SFP-1G-LH optics. The remaining ports run at 10/25/50G.

Q: Does it support the Catalyst 9500 network modules?
A: No. The C9500-NM-8X and C9500-NM-2Q network modules are not supported on the Catalyst 9500X.

Q: Is WAN-MACsec available on this switch?
A: Yes. Line-rate MACsec-256 and WAN-MACsec are hardware capable, and WAN-MACsec requires an HSEC key.

Q: Can it be managed through the Meraki dashboard?
A: No. Meraki cloud management is not available on Catalyst 9500X models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
