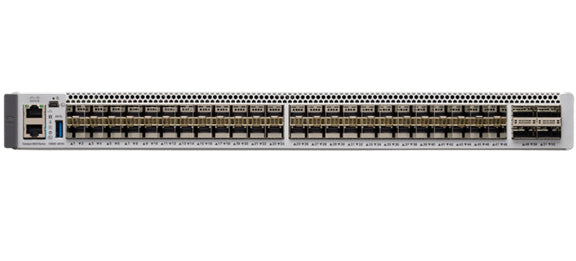

• Cisco C9500-48Y4C-E switch with 48 SFP28 ports and 4 QSFP28 uplinks
1 1

Cisco

Cisco C9500-48Y4C-E | Catalyst 9500 48-Port 25G Switch, 4x 100G, Network Essentials

C9500-48Y4C-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 is a fixed 1RU Layer 3 switch built for enterprise core and aggregation roles, including SD-Access campus deployments. This model suits high-density 10/25G server or distribution aggregation with 40/100G uplinks, and it runs Cisco IOS XE.

The C9500-48Y4C-E provides 48 SFP/SFP+/SFP28 ports at 1/10/25G and 4 QSFP28 uplink ports at 40/100G. It is built on the UADP 3.0 ASIC with up to 3.2 Tbps of switching capacity and a forwarding rate of up to 1 Bpps. It carries 16 GB of DRAM and 16 GB of flash, and supports up to 256,000 IPv4 routes and up to 82,000 MAC addresses depending on the SDM template. The -E suffix means this SKU includes the perpetual Network Essentials licence, with an upgrade to Network Advantage (-A) available separately. It does not provide PoE.

The chassis has two hot-swappable power supply slots for redundancy, supporting the C9K-PWR-650WAC-R, C9K-PWR-650WACL-R and C9K-PWR-930WDC-R modules. The fan tray is the C9K-T1-FANTRAY. Optional pluggable SSD storage in 240G, 480G and 960G capacities is available for application hosting, and the platform requires Cisco IOS XE Release 16.8.1a or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with model-driven programmability and streaming telemetry
- Layer 2 and Layer 3 switching and routing
- UADP 3.0 ASIC with flexible SDM templates (Distribution, Core, NAT, SD-Access, Custom)
- Hot-swappable redundant power supplies and fan trays
- Optional pluggable SSD storage for application hosting
- Cisco SD-Access and DNA-based management and assurance support, with the appropriate licence tier
- Smart Licensing for licence management
- NEBS Level 3 criteria listed for the 9500 high-performance models

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9500-48Y4C
- Downlink ports: 48 x 1/10/25G SFP/SFP+/SFP28
- Uplink ports: 4 x 40/100G QSFP28
- ASIC: UADP 3.0
- Switching capacity: Up to 3.2 Tbps
- Forwarding rate: Up to 1 Bpps
- DRAM: 16 GB
- Flash: 16 GB
- MAC addresses: Up to 82,000 (varies by template)
- IPv4 routes: Up to 256,000 (varies by template)
- IPv6 routes: Up to 256,000 (varies by template)
- IPv4 multicast routes: Up to 32,000
- Security ACL scale (v4/v6): Up to 27,000/13,500
- QoS ACL scale (v4/v6): Up to 16,000/8,000
- Flexible NetFlow entries: Up to 256,000
- VLAN IDs: 4,094
- Jumbo frames: 9,216 bytes
- Power supply slots: 2, hot-swappable
- Maximum power draw: 1,856 W
- Input voltage: 90 to 264 VAC
- Form factor: 1 RU fixed
- Dimensions (H x W x D): 1.73 x 17.5 x 21.52 in. (4.39 x 44.45 x 54.66 cm)
- Weight (with 2 power supplies and built-in fan): 9.96 kg
- Operating temperature: 0 to 40 C up to 10,000 ft
- MTBF: 316,960 hours
- Minimum software: Cisco IOS XE 16.8.1a

FAQs

Q: Does this switch include a licence?
A: Yes. The -E suffix means this SKU includes the perpetual Network Essentials licence. Upgrading to Network Advantage (-A) is a separate purchase.

Q: Which power supplies does it use?
A: It supports the C9K-PWR-650WAC-R, C9K-PWR-650WACL-R and C9K-PWR-930WDC-R modules in its two hot-swappable slots. The switch does not provide PoE.

Q: Which optics work in the downlink and uplink ports?
A: The 48 downlink ports accept SFP, SFP+ and SFP28 optics. The 4 uplink ports accept QSFP+ and QSFP28 optics. Check the Cisco Optics-to-Device Compatibility Matrix for supported genuine Cisco parts.

Q: What rack mounting kits fit this switch?
A: The C9500-ACCKITH-19I=, C9500-ACCKITH-23I= and C9500-4PTH-KIT= kits are supported. The C9500-ACC-KIT- kits for the C9500-16X do not fit.

Q: How does it differ from the Network Advantage version?
A: The hardware is the same. This -E SKU ships with Network Essentials, while the -A SKU includes Network Advantage with advanced routing and segmentation features.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
