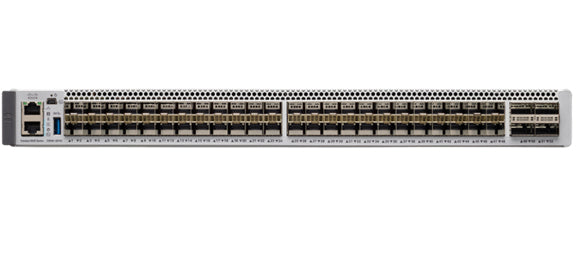

Cisco C9500-48Y4C-A | Catalyst 9500 48-Port 25G Switch, 4x 100G QSFP28, Layer 3

C9500-48Y4C-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9500-48Y4C-A is a high-performance enterprise-class switch designed for core and aggregation layer deployments. Built on the UADP 3.0 ASIC, this 1RU fixed switch delivers 48 ports of 1/10/25G SFP28 connectivity plus 4 uplinks of 40/100G QSFP28, with up to 3.2 Tbps switching capacity and 1 Bpps forwarding rate. Ideal for campus cores, data center aggregation, and high-density access environments requiring advanced Layer 3 routing, StackWise Virtual, and comprehensive security features.

Features

UADP 3.0 ASIC with programmable pipeline for flexible Layer 2/3 forwarding and policy enforcement
- Advanced Layer 3 routing: OSPF, EIGRP, BGP, MPLS, VRF-Lite, PIM for multicast
- Cisco StackWise Virtual technology for creating single logical switch from two physical units
- MACsec 256-bit encryption for wire-speed, hop-by-hop network security
- Software-Defined Access (SD-Access) ready with host tracking, LISP support, and VRF-aware capabilities
- Flexible ASIC Software Database Manager (SDM) templates for access, distribution, and custom deployments
- Nonstop Forwarding with Stateful Switchover (NSF/SSO) for high availability
- Graceful Insertion and Removal (GIR) for seamless software and hardware maintenance
- Dual 1+1 redundant platinum-rated power supplies with hot-swap capability
- IEEE 802.1X authentication with downloadable ACLs and security group tagging
- Comprehensive QoS with 8 egress queues, traffic shaping, and policy-based prioritization
- Flexible NetFlow (FNF) support for network monitoring and analytics
- IPv6 ready with full dual-stack support including IPv6 routing, ACLs, and QoS
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Cisco DNA Center integration for intent-based networking and automation
- Front-to-back airflow with redundant hot-swappable fans
- x86 quad-core 2.4 GHz CPU with 16 GB DRAM and 16 GB flash storage
- Comprehensive management via CLI, WebUI, SNMP, NETCONF, RESTCONF APIs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 1/10/25G SFP28 ports
- 4x 40/100G QSFP28 uplink ports
- Switching capacity: Up to 3.2 Tbps
- Forwarding rate: Up to 1 Bpps
- MAC address table: 82,000 entries
- IPv4 routes: Up to 212,000 indirect + direct, up to 90,000 host/ARP
- IPv6 routes: Up to 212,000 indirect + direct, up to 90,000 host
- IPv4/IPv6 multicast routes: Up to 32,000 each
- QoS ACL scale: Up to 16,000
- Security ACL scale: Up to 27,000
- Memory: 16 GB DRAM, 16 GB Flash
- ASIC: UADP 3.0
- Power supply: Dual 1+1 redundant AC/DC, platinum-rated, hot-swappable
- Typical power consumption: 230W
- Dimensions (H x W x D): 1.73 x 17.5 x 18.0 in (4.4 x 44.5 x 45.7 cm)
- Weight: 21.96 lb (9.96 kg) with dual power supplies
- Rack units: 1RU
- Operating temperature: 0 to 40°C
- Minimum software: Cisco IOS XE 16.8.1a or later
- Management: CLI, web GUI, SNMP, Cisco DNA Center
- Network Advantage license included

FAQs

Q: Does the C9500-48Y4C-A support Power over Ethernet?
A: No, this model does not support PoE. It is a data-only switch with 48x 25G SFP28 ports and 4x 40/100G QSFP28 uplinks. For PoE requirements, consider alternative Catalyst 9500 models with integrated PoE capabilities.

Q: What is included with the Network Advantage license?
A: The Network Advantage license provides advanced Layer 3 routing protocols (OSPF, EIGRP, BGP, MPLS), VRF-Lite, Software-Defined Access features, enhanced security capabilities including MACsec encryption, StackWise Virtual support, and full programmability via APIs. It enables comprehensive enterprise campus and core deployment scenarios.

Q: Can this switch be stacked with other Catalyst 9500 models?
A: Yes, the C9500-48Y4C-A supports Cisco StackWise Virtual technology, allowing you to connect two physical switches to operate as a single logical unit with up to 6.4 Tbps combined switching capacity. StackWise Virtual provides high availability, simplified management, and seamless redundancy across the stack.

Q: What transceivers are compatible with the SFP28 and QSFP28 ports?
A: The 48 SFP28 ports support 1G SFP, 10G SFP+, and 25G SFP28 optics for flexible deployment. The 4 QSFP28 uplink ports support 40G QSFP+ and 100G QSFP28 modules. Cisco recommends using genuine Cisco optics for full compatibility and support. Refer to the Cisco Transceiver Module Group (TMG) compatibility matrix for specific transceiver models.

Q: What makes this switch suitable for core and aggregation deployments?
A: The C9500-48Y4C-A delivers enterprise-grade performance with 3.2 Tbps switching capacity, advanced Layer 3 routing, high-density 25G connectivity, and 100G uplinks ideal for north-south traffic. It features dual redundant power supplies, NSF/SSO high availability, UADP 3.0 programmable ASIC, comprehensive security with MACsec, and support for advanced routing protocols required in core/aggregation roles.
