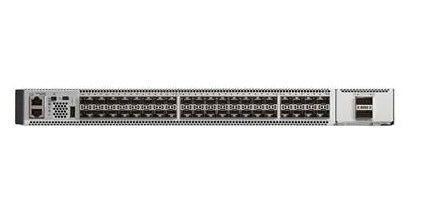

• Cisco C9500-40X-2Q-E switch with 40x10G SFP+ ports and 2x40G QSFP+
1 1

Cisco

Cisco C9500-40X-2Q-E | Catalyst 9500 40-Port 10G Switch, 2x 40G QSFP+, Network Essentials

C9500-40X-2Q-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 is a fixed 1RU enterprise core and aggregation switch built on the UADP 2.0 ASIC. It suits campus core and aggregation roles, data centre top-of-rack and leaf aggregation, and Software-Defined Access fabric border or control-plane nodes that need 10G density with 40G uplinks.

This SKU provides 40 x 1/10 Gigabit Ethernet SFP/SFP+ ports plus a C9500-NM-2Q network module with 2 x 40 Gigabit Ethernet QSFP+ ports. It ships with the Network Essentials perpetual licence tier, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security. Memory is 16 GB DRAM and 16 GB flash, with support for Cisco StackWise Virtual.

Power comes from hot-swappable 1+1 redundant supplies, with the PWR-C4-950WAC-R (AC) and PWR-C4-950WDC-R (DC) 950W units supported. Cooling is a field-replaceable FAN-T4-R fan tray with front-to-back airflow. It runs Cisco IOS XE and works with the C9500-NM-8X network module as an alternative uplink option.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise Virtual with SSO and ISSU over the StackWise Virtual Link
- MACsec 256-bit AES-GCM encryption with MACsec Key Agreement HA
- Secure Boot, image signing and Cisco Trust Anchor Module
- Advanced routing including OSPF, EIGRP, IS-IS, BGP, PIM and MPLS L3VPN
- BGP EVPN VXLAN and Cisco Software-Defined Access fabric roles
- Flexible NetFlow with IPFIX and NFv9 export
- Model-driven programmability with NETCONF, RESTCONF, gNMI and YANG
- Software Maintenance Upgrade patching for critical bug fixes

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- ASIC: UADP 2.0
- Form factor: 1 RU fixed
- Fixed ports: 40 x 1/10G SFP/SFP+
- Uplink module: C9500-NM-2Q, 2 x 40G QSFP+
- Licence tier: Network Essentials
- Power supplies: PWR-C4-950WAC-R / PWR-C4-950WDC-R (950W), 1+1 redundant
- Input voltage: 90 to 264 VAC
- Cooling: FAN-T4-R front-to-back fan tray
- DRAM / Flash: 16 GB / 16 GB
- IPv4/IPv6 LPM routes: 64,000 / 32,000 (distribution template)
- IPv4/IPv6 host routes: 48,000 / 24,000 (distribution template)
- MAC addresses: 64,000
- Security ACL scale: 18,000
- QoS ACL scale: 18,000
- NetFlow/ASIC entries: 128,000
- VLAN IDs: 4,094
- Total SVIs: 1,000
- Jumbo frames: 9,198 bytes
- Operating temperature: 0 to 40 C up to 10,000 ft
- Storage temperature: -20 to 65 C
- Operating humidity: 5% to 90% non-condensing
- Safety: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1
- NEBS: SR-3580 NEBS Level 3

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Essentials perpetual licence, indicated by the -E suffix. Cisco DNA Essentials subscription is needed for management and assurance features, and Smart Licensing applies.

Q: What power supplies does it use?
A: It uses hot-swappable 1+1 redundant supplies. The compatible 950W units are the PWR-C4-950WAC-R (AC) and PWR-C4-950WDC-R (DC).

Q: Can the uplink module be changed?
A: Yes. This SKU is configured with the C9500-NM-2Q network module (2 x 40G QSFP+). The C9500-NM-8X module with 8 x 1/10G SFP/SFP+ ports is also supported on this switch generation.

Q: Which optics are supported?
A: Supported optics are listed in the Cisco Transceiver Module Group compatibility matrix at tmgmatrix.cisco.com for both the SFP/SFP+ and QSFP+ ports.

Q: Does it support stacking?
A: It supports Cisco StackWise Virtual, which pairs switches into one logical system with SSO and ISSU.

Q: Which software does it run?
A: It runs Cisco IOS XE, version 16.8.1 or later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
