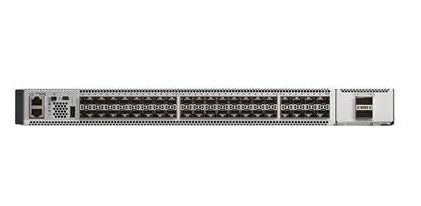

• Cisco C9500-40X-2Q-A 40-port 10G switch with black silver design
1 1

Cisco

Cisco C9500-40X-2Q-A | Catalyst 9500 40-Port 10G Switch, 2x 40G, Network Advantage

C9500-40X-2Q-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 C9500-40X-2Q-A is a fixed 1RU enterprise core and aggregation switch from the Catalyst 9500 Series. It suits campus core and collapsed-core deployments, and 10G server or data centre aggregation where StackWise Virtual resiliency and SD-Access support are needed.

The base C9500-40X provides 40 x 1/10 Gigabit Ethernet SFP/SFP+ ports, and this SKU adds a C9500-NM-2Q network module with 2 x 40 Gigabit Ethernet QSFP+ ports. It is built on the UADP 2.0 ASIC and is licensed at the Network Advantage tier, indicated by the -A suffix. Dual 1+1 redundant power supply bays and a field-replaceable fan tray support resilient operation, with a 90 to 264 VAC input range.

The switch runs Cisco IOS XE and supports Layer 3 routing, MPLS, BGP EVPN VXLAN, MACsec encryption and model-driven programmability through NETCONF, RESTCONF and gNMI. Compatible network modules include the C9500-NM-2Q and C9500-NM-8X, and optics should be selected against the Cisco TMG Matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco StackWise Virtual with SSO and ISSU support
- Software Maintenance Upgrade patching and Graceful Insertion and Removal
- Secure Boot, image signing, Cisco Trust Anchor Module and 256-bit AES-GCM MACsec
- Layer 3 routing with OSPF, EIGRP, IS-IS, BGP, PIM and IPv6, plus MPLS L3VPN, EoMPLS, VPLS and MPLS-TE
- BGP EVPN VXLAN and SD-Access support
- Flexible NetFlow with NetFlow v9 and IPFIX export
- Programmability via NETCONF, RESTCONF, gNMI/gNOI, YANG models and ZTP/PnP
- Container-based application hosting via USB or SATA SSD
- Managed through Catalyst Center on Cisco IOS XE, with a Meraki cloud monitoring option

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Product family: Cisco Catalyst 9500 Series
- Base ports: 40 x 1/10 Gigabit Ethernet SFP/SFP+
- Network module: C9500-NM-2Q, 2 x 40 Gigabit Ethernet QSFP+
- ASIC platform: UADP 2.0
- Rack units: 1 RU
- Licence tier: Network Advantage
- Power supplies: dual 1+1 redundant AC or DC bays
- Input voltage: 90 to 264 VAC
- Cooling: field-replaceable fan tray, front-to-back airflow
- Jumbo frame: 9,198 bytes
- VLAN IDs: 4,094
- Per-VLAN spanning tree instances: 300 (IOS XE 17.1.1 or later)
- DRAM / Flash: 16 GB / 16 GB
- Operating temperature: 0 to 40 C up to 10,000 ft, up to 45 C up to 6,000 ft
- Storage temperature: -20 to 65 C
- Operating humidity: 5% to 90%, non-condensing
- Storage humidity: 5% to 95%, non-condensing

FAQs

Q: Which licence tier does the C9500-40X-2Q-A carry?
A: The -A suffix denotes the Network Advantage licence tier. Cisco DNA Advantage subscriptions are added separately and Cisco Smart Licensing is used.

Q: What network modules does this switch work with?
A: The Catalyst 9500 40X platform supports the C9500-NM-2Q (2 x 40G QSFP+) and C9500-NM-8X (8 x 1/10G SFP/SFP+) network modules. This SKU is configured with the C9500-NM-2Q.

Q: Does it support redundant power?
A: Yes. It has dual 1+1 redundant power supply bays for AC or DC supplies, with a 90 to 264 VAC input range.

Q: Can it be stacked or run as a resilient pair?
A: It supports Cisco StackWise Virtual with SSO and ISSU, allowing two switches to operate as a single logical system.

Q: How does this SKU differ from other Catalyst 9500 40X variants?
A: This SKU combines the Network Advantage licence tier with the 2 x 40G QSFP+ network module. Other variants differ by licence tier or module selection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
