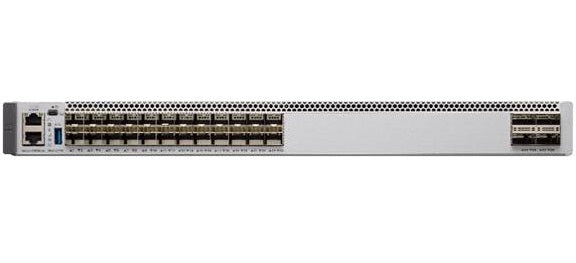

• Cisco C9500-24Y4C-E silver switch with black ports and gray faceplate
1 1

Cisco

Cisco C9500-24Y4C-E | Catalyst 9500 24-Port 25G Switch, 4x 100G, Network Essentials

C9500-24Y4C-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 C9500-24Y4C-E is a fixed 1RU enterprise core and aggregation switch built on the Cisco UADP 3.0 ASIC and running Cisco IOS XE. It suits campus core and distribution layers, 25G server and uplink aggregation near the data centre, and SD-Access fabric border or control plane roles.

The front panel provides 24 x 1/10/25G SFP28 ports and 4 x 40/100G QSFP28 uplink ports. Switching capacity is up to 2.0 Tbps with a forwarding rate of up to 1 Bpps, backed by 16 GB DRAM and 16 GB flash. Scale reaches up to 82,000 MAC addresses, 256,000 IPv4/IPv6 routes and 256,000 Flexible NetFlow entries, with 4,094 VLAN IDs and 9,216-byte jumbo frames. This SKU carries the Network Essentials perpetual licence, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security. Network Advantage can be obtained through the C9500-LIC= upgrade licence.

Power comes from dual 1+1 hot-swappable AC or DC supplies, with the C9K-PWR-650WAC-R, C9K-PWR-650WACL-R and C9K-PWR-930WDC-R supported. Cooling uses the C9K-T1-FANTRAY with front-to-back airflow. Optics are supported per the Cisco Optics-to-Device Compatibility Matrix, and the switch requires Cisco IOS XE 16.8.1a or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Programmable UADP 3.0 ASIC with template-based allocation of Layer 2/3 forwarding, ACL and QoS entries
- StackWise Virtual with multichassis EtherChannel, SSO and ISSU support
- Line-rate 256-bit MACsec (AES-GCM) encryption
- Secure Boot, image signing and Cisco Trust Anchor Module
- Model-driven programmability with NETCONF, RESTCONF, gNMI/gNOI and YANG
- Container-based application hosting on an x86 CPU with optional SSD storage
- SD-Access fabric edge, border and control plane support
- BGP EVPN VXLAN, MPLS Layer 3 VPN, VPLS and EoMPLS support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Port configuration: 24 x 1/10/25G SFP28 + 4 x 40/100G QSFP28
- ASIC: Cisco UADP 3.0
- Switching capacity: Up to 2.0 Tbps
- Forwarding rate: Up to 1 Bpps
- DRAM: 16 GB
- Flash: 16 GB
- MAC addresses: Up to 82,000 (varies by SDM template)
- IPv4/IPv6 routes: Up to 256,000 (varies by SDM template and platform)
- Flexible NetFlow entries: Up to 256,000
- VLAN IDs: 4,094
- Jumbo frames: 9,216 bytes
- Form factor: 1 RU rack-mountable
- Dimensions (H x W x D): 4.39 x 44.45 x 45.72 cm (1.73 x 17.5 x 18.0 in.)
- Weight with 2 power supplies and built-in fan: 9.52 kg (20.99 lb)
- Supported power supplies: C9K-PWR-650WAC-R, C9K-PWR-650WACL-R, C9K-PWR-930WDC-R
- Input voltage: 90 to 264 VAC
- Fan tray: C9K-T1-FANTRAY, front-to-back airflow
- Operating temperature: 0 to 40 C up to 10,000 ft; up to 45 C up to 6,000 ft
- Storage temperature: -20 to 65 C
- MTBF: 336,780 hours
- Minimum software: Cisco IOS XE 16.8.1a
- Licence: Network Essentials

FAQs

Q: Which licence does the C9500-24Y4C-E include?
A: The -E suffix indicates the Network Essentials perpetual licence, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security. Network Advantage can be obtained through the C9500-LIC= upgrade licence.

Q: Which power supplies does this switch use?
A: It supports dual 1+1 redundant hot-swappable supplies: C9K-PWR-650WAC-R and C9K-PWR-650WACL-R for AC, and C9K-PWR-930WDC-R for DC. A second supply can be added later for redundancy.

Q: Does it support the C9500-NM-8X or C9500-NM-2Q network modules?
A: No. This model does not support the C9500-NM-8X or C9500-NM-2Q network modules.

Q: Which optics can I use in the uplink and downlink ports?
A: The 24 SFP28 ports accept SFP, SFP+ and SFP28 optics, and the 4 QSFP28 ports accept QSFP+ and QSFP28 optics. Check part numbers against the Cisco Optics-to-Device Compatibility Matrix.

Q: What is the minimum software release?
A: The switch requires Cisco IOS XE Release 16.8.1a or later.
