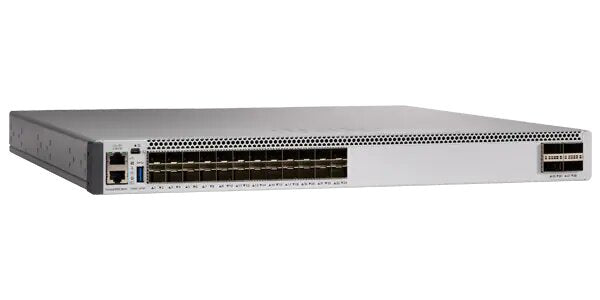

• Cisco C9500-24X-E 24-port 10G SFP+ L2/L3 switch, sleek silver design
1 1

Cisco

Cisco C9500-24X-E | Catalyst 9500 24-Port 10G SFP+ Switch, Network Essentials

C9500-24X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 is a fixed core and aggregation switch built on the Cisco UADP 2.0 ASIC and running IOS XE. It suits enterprise campus core, aggregation and collapsed-core deployments that need dense 10G connectivity, as well as data centre or distribution-layer roles using SD-Access fabric, MPLS and VXLAN EVPN.

This model provides 16 fixed 1/10G SFP/SFP+ ports plus an 8-port 1/10G SFP/SFP+ network module, giving 24 ports in total. It delivers up to 480 Gbps switching capacity and up to 360 Mpps forwarding rate, with 16 GB DRAM, 16 GB flash and support for up to 64,000 MAC addresses. It is a 1 RU chassis with 1+1 redundant hot-swappable 950W power supplies and a field-replaceable fan tray with front-to-back airflow. It ships with the perpetual Network Essentials licence tier, with Network Advantage as the higher tier.

The C9500-NM-8X and C9500-NM-2Q (2 x 40G QSFP+) network modules are supported, and optics compatibility follows the Cisco TMG matrix. Minimum software is IOS XE 16.8.1.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with model-driven programmability (NETCONF, RESTCONF, gNMI), on-box Python scripting, streaming telemetry and container-based application hosting
- Cisco StackWise Virtual for SSO/ISSU and Multichassis EtherChannel resiliency
- Software Maintenance Upgrade (SMU) patching and Graceful Insertion and Removal (GIR)
- 256-bit AES-GCM MACsec encryption, Secure Boot, image signing and Trust Anchor Module
- MPLS Layer 3 VPN, EoMPLS, VPLS and MPLS-TE, plus BGP EVPN VXLAN fabric support
- SD-Access fabric border, control plane and edge roles
- Flexible NetFlow, PTP (IEEE 1588v2) and static and dynamic NAT/PAT
- Zero-Touch Provisioning and Plug and Play automated deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 16 x 1/10G SFP/SFP+ fixed
- Network module: 8 x 1/10G SFP/SFP+ via C9500-NM-8X (24 x 10G total)
- Optional uplink module: C9500-NM-2Q, 2 x 40G QSFP+
- ASIC: UADP 2.0
- CPU: Intel 2.4 GHz x86
- Switching capacity: up to 480 Gbps
- Forwarding rate: up to 360 Mpps
- DRAM: 16 GB
- Flash: 16 GB
- MAC addresses: up to 64,000 (varies by SDM template)
- IPv4 routes (indirect): up to 64,000
- IPv6 routes (indirect): up to 32,000
- Security ACL scale (v4/v6): up to 18,000/9,000
- VLAN IDs: 4,094
- Switched virtual interfaces: 1,000
- Jumbo frames: 9,198 bytes
- Power supplies: 1+1 redundant, PWR-C4-950WAC-R or PWR-C4-950WDC-R, 950W
- Fan tray: FAN-T4-R, front-to-back airflow, up to 5 fans
- Dimensions (H x W x D): 4.39 x 44.45 x 54.66 cm
- Rack units: 1 RU
- Weight: 10.7 kg with 2 power supplies and built-in fan
- Operating temperature: 0 to 40 C up to 10,000 ft, up to 45 C up to 6,000 ft
- Storage temperature: -20 to 65 C
- MTBF: 315,790 hours
- Licence: Network Essentials (perpetual)

FAQs

Q: Which licence does this switch use?
A: It uses the perpetual Network Essentials licence tier, shown by the -E suffix. Network Advantage is the higher tier and can be reached with a C9500-LIC upgrade. Cisco DNA subscription options are also available through Smart Licensing.

Q: How do I get 24 ports from this model?
A: The switch has 16 fixed 1/10G SFP/SFP+ ports. Adding the C9500-NM-8X network module provides 8 more 1/10G SFP/SFP+ ports, for 24 in total.

Q: What power supplies does it use?
A: It uses 1+1 redundant hot-swappable 950W supplies, either PWR-C4-950WAC-R (90 to 264 VAC) or PWR-C4-950WDC-R (DC). The fan tray is the field-replaceable FAN-T4-R with front-to-back airflow.

Q: Can it provide 40G uplinks?
A: Yes. The C9500-NM-2Q network module adds 2 x 40G QSFP+ ports in place of the 8-port 10G module.

Q: What software does it require?
A: The minimum software is IOS XE 16.8.1. Check Cisco's release notes for the version that suits the features you plan to run.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
