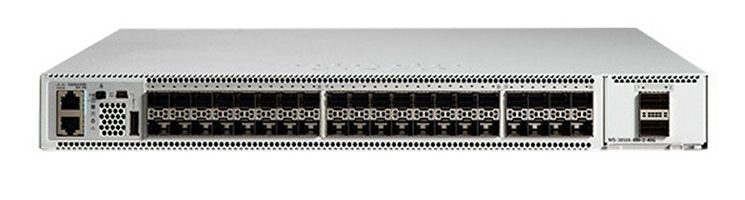

• Cisco C9500-24Q-A 24x 40G QSFP+ switch with Network Advantage license
1 1

Cisco

Cisco C9500-24Q-A | Catalyst 9500 24-Port 40G QSFP+ Switch, Network Advantage

C9500-24Q-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 C9500-24Q-A is a fixed 1RU core and aggregation switch with 24 x 40G QSFP+ ports, built on the Cisco UADP 2.0 ASIC and running Cisco IOS XE. It suits enterprise campus cores, data-centre access and aggregation layers, and Software-Defined Access fabric border or control-plane nodes that need high-density 40G connectivity.

This SKU ships with the Network Advantage licence tier, as shown by the -A suffix. Network Advantage adds advanced routing, segmentation, multicast, scale and security over Network Essentials. It is used with a Cisco DNA Advantage subscription and Cisco Smart Licensing. The switch supports dual 1+1 redundant hot-swap Platinum-rated power supplies, field-replaceable fan trays with online insertion and removal, StackWise Virtual and 256-bit MACsec encryption.

It works with Cisco QSFP+ 40G optics and breakout cabling listed in the Cisco Optics-to-Device Compatibility Matrix, and requires Cisco IOS XE 16.5.1a or later. It can be managed with Cisco Catalyst Center or monitored through the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Programmable UADP pipeline with template-based allocation of L2/L3 forwarding, ACL and QoS entries
- Cisco StackWise Virtual for chassis-style resiliency, SSO and ISSU
- Advanced routing including OSPF, EIGRP, IS-IS, BGP, PIM and IPv6
- MPLS L3 VPN, EoMPLS, VPLS, MPLS-TE and BGP EVPN VXLAN
- Software-Defined Access fabric border, edge and control plane roles
- Secure Boot, image signing, Trust Anchor Module and 256-bit MACsec
- Model-driven programmability with NETCONF, RESTCONF, gNMI and YANG, plus ZTP and PnP
- Container-based application hosting with optional SSD

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 24 x 40G QSFP+
- ASIC: Cisco UADP 2.0
- Form factor: 1RU rack-mount, fixed
- Licence tier: Network Advantage
- Software: Cisco IOS XE 16.5.1a or later
- Power supplies: dual 1+1 redundant hot-swap, AC or DC options
- AC input voltage: 90 to 264 VAC
- Cooling: field-replaceable fan trays with OIR, front-to-back airflow
- VLAN IDs: 4,094
- Jumbo frames: up to 9,198 bytes
- MAC addresses: up to 64,000 (template dependent)
- Management ports: RJ-45 and USB mini type B console, USB 3.0 for storage
- Optional SSD: 240 GB, 480 GB or 960 GB for application hosting
- Operating temperature: 0 to 40 C up to 10,000 ft, up to 45 C up to 6,000 ft
- Storage temperature: -20 to 65 C
- Operating humidity: 5% to 90% non-condensing
- NEBS: Level 3 (GR-63-CORE, GR-1089-CORE)

FAQs

Q: Which licence does the C9500-24Q-A include?
A: It ships with the Network Advantage perpetual licence tier, indicated by the -A suffix. A Cisco DNA Advantage subscription of 3, 5 or 7 years is required alongside it, and Cisco Smart Licensing is used.

Q: How does the C9500-24Q-A differ from the -E version?
A: The -A version carries Network Advantage, which adds advanced routing, segmentation, multicast, scale and security features over the Network Essentials tier on the -E version.

Q: What power supplies does this switch use?
A: It supports dual 1+1 redundant hot-swap Platinum-rated power supplies in AC or DC options, such as PWR-C4-950WAC-R and PWR-C4-950WDC-R for this platform family.

Q: Which optics does it support?
A: It supports Cisco QSFP+ 40G optics and breakout cabling listed in the Cisco Optics-to-Device Compatibility Matrix.

Q: What software version does it require?
A: It requires Cisco IOS XE 16.5.1a or later and can be managed with Cisco Catalyst Center or monitored through the Meraki dashboard.
