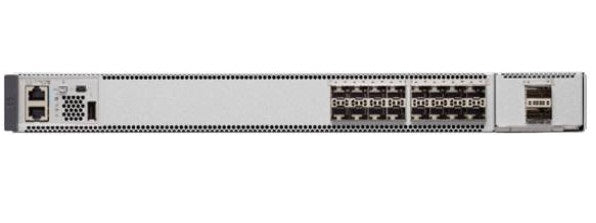

• Cisco C9500-16X-E 16x 10G SFP+ switch with modular uplinks
1 1

Cisco

Cisco C9500-16X-E | Catalyst 9500 16-Port 10G SFP+ Switch, Network Essentials

C9500-16X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9500 is Cisco's fixed enterprise core and aggregation switching platform, and this 1RU model suits campus core, distribution, collapsed-core and Software-Defined Access fabric deployments. It is built on the UADP 2.0 ASIC and also fits MPLS and WAN-edge or data-centre-edge roles.

The C9500-16X provides 16 x 1/10 Gigabit Ethernet SFP/SFP+ ports, with up to 480 Gbps of switching capacity and a forwarding rate of up to 360 Mpps. It supports up to 64,000 MAC addresses and carries 16 GB of DRAM and 16 GB of flash. This SKU has no uplink network module fitted and ships with the perpetual Network Essentials licence, which covers foundational Layer 2 and Layer 3 switching, automation, visibility and security. Cisco DNA subscriptions, where required, are ordered separately and must match the Essentials tier.

The chassis uses dual 1+1 redundant hot-swappable power supplies (PWR-C4-950WAC-R or PWR-C4-950WDC-R) and front-to-back airflow with field-replaceable FAN-T4-R fans. The optional C9500-NM-8X (8 x 1/10G SFP/SFP+) and C9500-NM-2Q (2 x 40G QSFP+) network modules expand port density. It runs Cisco IOS XE 16.8.1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF and gNMI programmability, on-box Python scripting and streaming telemetry
- Cisco StackWise Virtual with SSO and ISSU support
- MACsec encryption (256-bit AES-GCM), Secure Boot and Cisco Trust Anchor Module
- Foundation for Cisco Software-Defined Access with VXLAN fabric roles
- BGP EVPN VXLAN, MPLS Layer 3 VPN, EoMPLS, VPLS and MPLS-TE
- Flexible NetFlow, IPFIX and NetFlow v9 export
- Plug and Play and Zero-Touch Provisioning
- Container-based application hosting with optional pluggable SSD storage
- Hot-swappable platinum-rated power supplies and field-replaceable fan trays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- ASIC: UADP 2.0
- Ports: 16 x 1/10 Gigabit Ethernet SFP/SFP+
- Optional uplink modules: C9500-NM-8X (8 x 1/10G SFP/SFP+) or C9500-NM-2Q (2 x 40G QSFP+)
- Switching capacity: up to 480 Gbps
- Forwarding rate: up to 360 Mpps
- MAC addresses: up to 64,000
- IPv4 routes (indirect): up to 64,000
- IPv6 routes (indirect): up to 32,000
- Flexible NetFlow entries: up to 512,000
- DRAM: 16 GB
- Flash: 16 GB
- VLAN IDs: 4,094
- Jumbo frames: 9,198 bytes
- Power supplies: dual 1+1 redundant, PWR-C4-950WAC-R (950W AC) or PWR-C4-950WDC-R (950W DC)
- AC input voltage: 90 to 264 VAC
- Dimensions (H x W x D): 4.39 x 44.45 x 54.66 cm
- Rack units: 1 RU
- Weight: 10.7 kg with 2 power supplies and built-in fan
- Operating temperature: 0 to 40 C up to 10,000 feet
- Minimum software: Cisco IOS XE 16.8.1
- Out-of-band management: RJ-45 and USB mini type B
- MTBF: 315,790 hours

FAQs

Q: Does the C9500-16X-E need a licence?
A: It ships with the perpetual Cisco Network Essentials licence. A matching Cisco DNA Essentials or Catalyst software subscription, where required, is ordered separately and must be the Essentials tier. Cisco Smart Licensing applies.

Q: How does the -E model differ from the -A model?
A: The -E SKU carries Network Essentials for foundational Layer 2 and Layer 3 switching, automation, visibility and security. The -A SKU carries Network Advantage, which adds advanced routing, segmentation, multicast, scale and security features.

Q: Can I add more ports to this switch?
A: Yes. This SKU has no uplink module fitted, but it accepts the C9500-NM-8X (8 x 1/10G SFP/SFP+) for 24 ports in total, or the C9500-NM-2Q (2 x 40G QSFP+).

Q: Which power supplies does it use?
A: It uses dual 1+1 redundant hot-swappable supplies, either the PWR-C4-950WAC-R (950W AC) or PWR-C4-950WDC-R (950W DC). Cooling is provided by FAN-T4-R fans with front-to-back airflow.

Q: Which optics work with this switch?
A: The ports accept 1G SFP and 10G SFP+ modules. Supported genuine optics are listed in the Cisco Optics-to-Device Compatibility Matrix.
