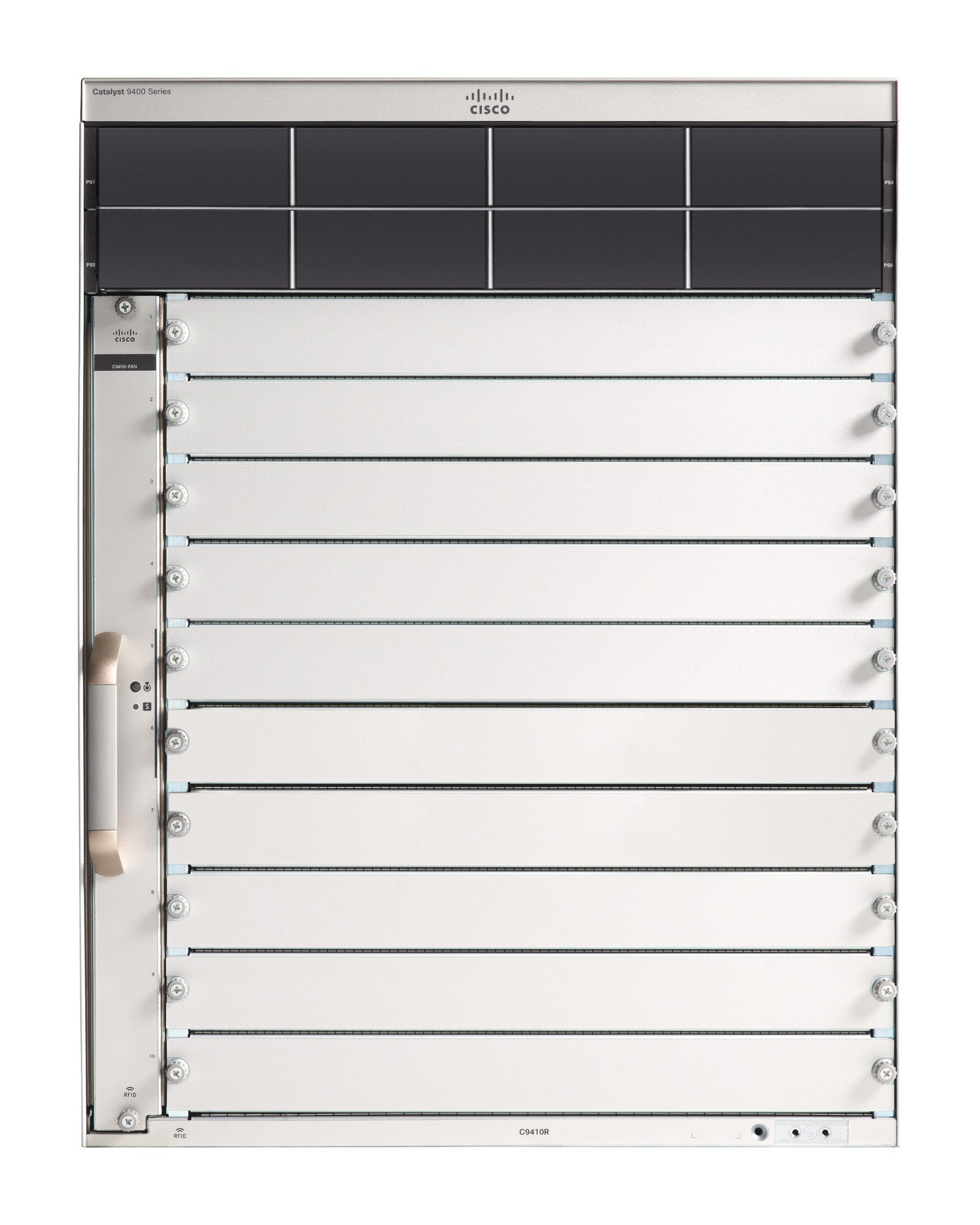

• Cisco C9410R Catalyst 9400 10-slot chassis with silver rack
1 1

Cisco

Cisco C9410R | Catalyst 9400 10-Slot Modular Switch Chassis, 13RU

C9410R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 C9410R is a 13RU, 10-slot modular switch chassis for enterprise campus and wiring-closet access and aggregation. It suits high-density PoE and UPOE deployments for wireless access points, IoT devices and endpoints, as well as SD-Access fabric edge roles where the access layer must stay resilient.

The chassis provides 8 line-card slots and 2 dedicated supervisor slots (slots 5 and 6) for 1+1 supervisor redundancy. Bandwidth reaches up to 480 Gbps per line-card slot with a C9400X-SUP-2XL supervisor. Port capacity scales to 384 x 10/100/1000 RJ-45 (including PoE+ and UPOE), 384 x SFP/SFP+ and 384 x multigigabit ports, plus up to 168 x 25GbE, 96 x 40GbE and 32 x 100GbE ports with SUP-2 or SUP-2XL. Eight power supply bays support 3200W AC, 2100W AC and 3200W DC modules, with up to 4320W of PoE per slot on current line cards. A single hot-swappable fan tray provides side-to-side airflow.

Supervisors, line cards and power supplies are selected separately to suit the deployment. Supported supervisors are C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 1+1 supervisor engine redundancy with redundant power supplies and N+1 redundant fans
- Mix-and-match line cards for Gigabit, Multigigabit, UPOE and SFP/SFP+ ports, plus 25/40/100G options
- Integrated PoE with support for PoE+, UPOE and 802.3bt Type 4 (90W) ports
- N+N, N+1 and combined power modes
- Hot-swappable fan tray, serviceable from front and rear
- Supports Cisco SD-Access and IOS XE programmability
- Embedded RFID tags on chassis, supervisors, line cards, power supplies and fan trays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis type: Modular, 10 slots
- Line-card slots: 8
- Supervisor slots: 2 (slots 5 and 6)
- Supervisor redundancy: 1+1 supported
- Supported supervisors: C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400-SUP-1
- Maximum bandwidth per line-card slot: up to 480 Gbps (with C9400X-SUP-2XL)
- Maximum PoE per slot: 4320W
- Power supply bays: 8 (3200W AC, 2100W AC, 3200W DC)
- Fan tray bays: 1, side-to-side airflow
- Maximum 10/100/1000BASE-T ports: 384
- Maximum SFP / SFP+ ports: 384 each
- Maximum 25GbE / 40GbE / 100GbE ports: 168 / 96 / 32 (SUP-2 or SUP-2XL required)
- Maximum 802.3bt Type 4 (90W) ports: 384
- Rack units: 13 RU, front 19-inch rack mounting
- Dimensions (H x W x D): 57.43 x 43.94 x 41.40 cm
- Weight (with fan tray): 29.48 kg
- Operating temperature: -5 to +45 C up to 1800 m
- Relative humidity: 10 to 95% non-condensing
- Rated MTBF: 1,404,840 hours
- Minimum IOS XE: 16.6.1 with SUP-1, 17.7.1 with SUP-2

FAQs

Q: Does the C9410R chassis need a software licence?
A: The chassis itself carries no licence. Software licensing, Network Essentials or Network Advantage with the matching Cisco DNA subscription, is attached to the supervisor and software SKUs.

Q: Which slots do the supervisors go in?
A: Supervisors go in slots 5 and 6 only. Line cards use slots 1 to 4 and 7 to 10.

Q: Which supervisor engines does it support?
A: The C9410R supports C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1. The 25/40/100GbE port options and the 480 Gbps per-slot bandwidth require SUP-2 or SUP-2XL.

Q: Which power supplies can it use?
A: It has 8 power supply bays supporting 3200W AC, 2100W AC and 3200W DC modules, including the C9400-PWR-3200AC. N+N, N+1 and combined power modes are supported.

Q: How does the C9410R differ from the smaller Catalyst 9400 chassis?
A: The C9410R is the 10-slot, 13RU model with 8 line-card slots and 2 supervisor slots, scaling to up to 384 ports.
