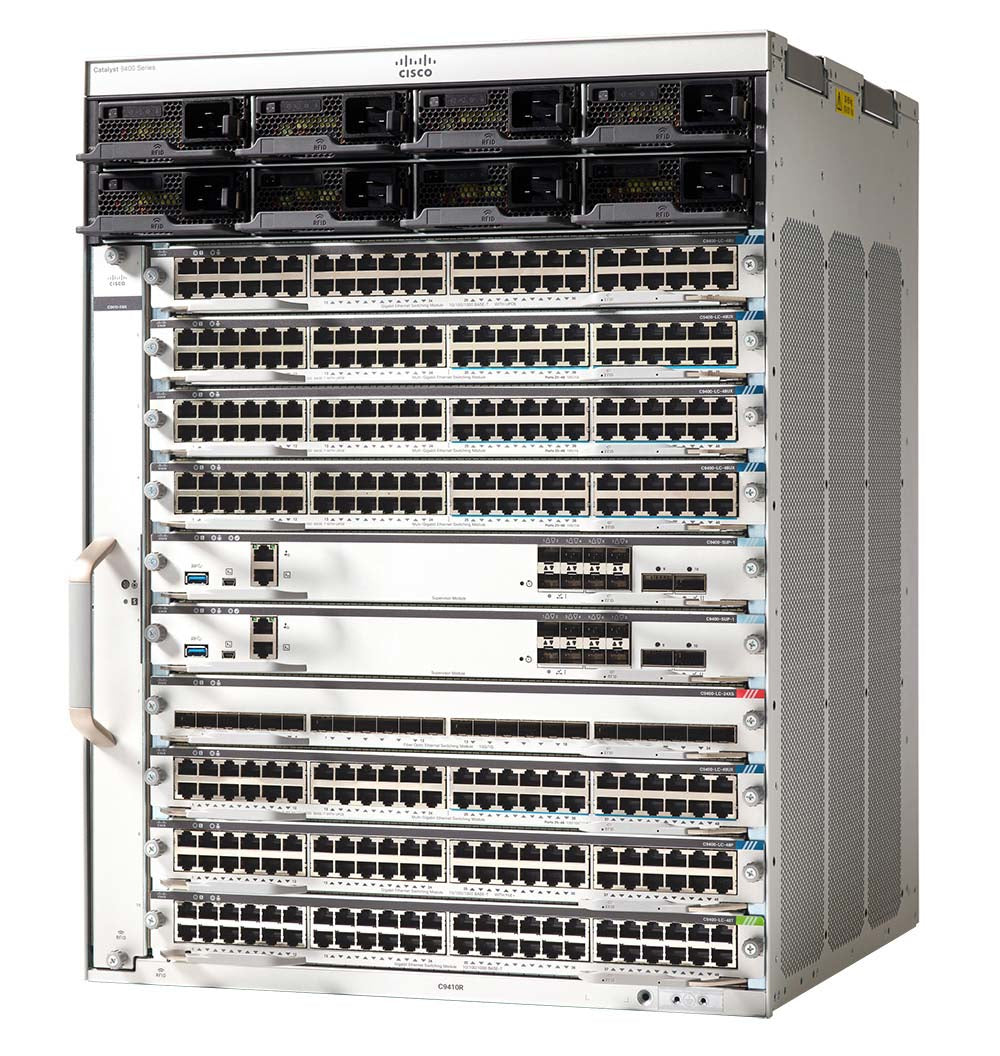

• Cisco C9410R-96U-BNDL-E silver 10-slot chassis with 96x1G UPOE ports
1 1

Cisco

Cisco C9410R-96U-BNDL-E | Catalyst 9400 10-Slot Switch, 96x 1G UPOE, DNA Essentials

C9410R-96U-BNDL-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 10-slot modular chassis bundle is built for campus core and distribution roles, and for high-density wiring closets that need UPOE. It is based on the C9410R chassis and pairs one supervisor engine with two C9400-LC-48U line cards.

Together the two line cards provide 96 x 10/100/1000 UPOE ports. The C9410R has 8 line-card slots, with slots 5 and 6 reserved for supervisor engines, so further line cards can be added to scale the port count. The chassis supports up to 384 10/100/1000BASE-T RJ-45 ports and is capable of about 4800 W PoE per slot, with the actual budget depending on the power supplies and line cards fitted. Redundant power supplies and fans are supported, along with 1+1 supervisor redundancy when a second supervisor is added.

The -E in the SKU denotes the included DNA Essentials licence. The chassis accepts the C9400-SUP-1, SUP-1XL, SUP-1XL-Y and C9400X-SUP-2 supervisors, each with its own minimum Cisco IOS XE release. It mounts in a front 19-inch rack position.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular 10-slot chassis with redundant power supplies and fans
- 1+1 supervisor-engine redundancy with an active primary and a standby secondary
- UPOE line cards for high-power PoE endpoints
- Supports multiple supervisor generations (SUP-1, SUP-1XL, SUP-1XL-Y, C9400X-SUP-2)
- Expandable to additional line cards in the remaining slots
- Cisco IOS XE software
- DNA Essentials licence included

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: C9410R, 10-slot modular
- Line-card slots: 8
- Supervisor slots: 2 (slots 5 and 6, supervisor only)
- Supervisor engine: 1 installed in this bundle
- Line cards: 2 x C9400-LC-48U
- Ports in this bundle: 96 x 10/100/1000 UPOE
- Maximum 10/100/1000BASE-T RJ-45 ports (chassis): 384
- Chassis PoE capability: about 4800 W per slot, depending on line card
- Redundancy: redundant power supplies and fans, 1+1 supervisor redundancy
- Software: Cisco IOS XE
- Minimum software, C9400-SUP-1: IOS XE 16.6.1
- Minimum software, C9400-SUP-1XL: IOS XE 16.6.2
- Minimum software, C9400-SUP-1XL-Y: IOS XE 16.9.1
- Minimum software, C9400X-SUP-2: IOS XE 17.7.1
- Licence: DNA Essentials
- Rack-mount location: front 19-inch

FAQs

Q: Which licence tier does this bundle include?
A: The -E in the SKU denotes DNA Essentials, which is included in this bundle.

Q: Can I add a second supervisor for redundancy?
A: Yes. The C9410R supports 1+1 supervisor redundancy using slots 5 and 6. A second supervisor is ordered separately, and high availability with dual supervisors is tied to DNA Advantage per the datasheet and ordering guide.

Q: Which supervisors work in this chassis?
A: The C9410R accepts the C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400X-SUP-2. Supervisors go in slots 5 and 6 only, and line cards are not supported in those slots.

Q: How many ports can this chassis support in total?
A: This bundle provides 96 x 1G UPOE ports from two C9400-LC-48U line cards. The C9410R chassis supports up to 384 10/100/1000BASE-T ports with additional line cards fitted.

Q: How is this bundle different from other C9410R SKUs?
A: It combines 96 x 1G UPOE ports from two C9400-LC-48U line cards, one supervisor engine and a DNA Essentials licence in a single SKU.
