• Cisco Catalyst 9400 10-slot chassis bundle with 96x 1G UPOE ports
1 1

Cisco

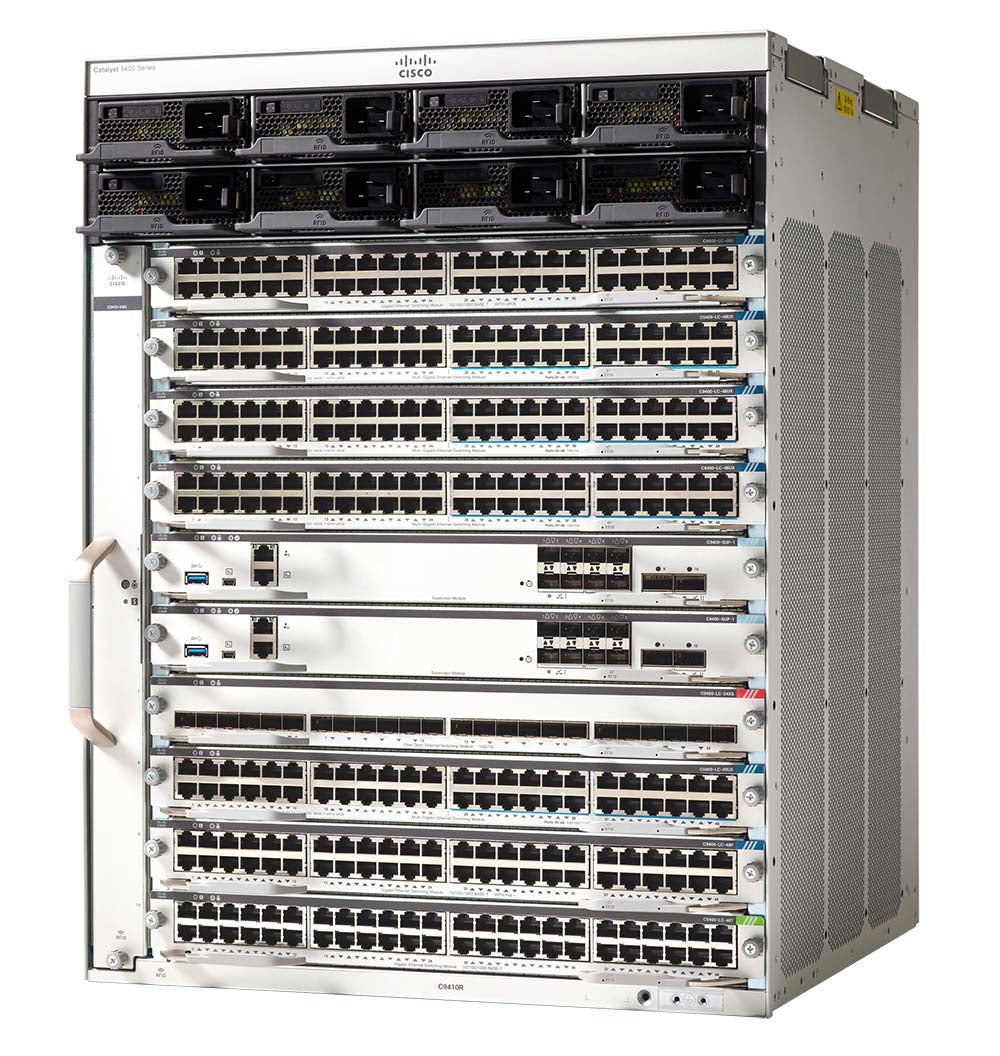

Cisco C9410R-96U-BNDL-A | Catalyst 9400 10-Slot UPOE Switch, 96x 1G, DNA Advantage

C9410R-96U-BNDL-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 10-slot chassis bundle is a modular enterprise switch platform for campus and branch access, and for distribution or core wiring closets that need dense PoE and UPOE. It suits deployments powering IP phones, wireless access points, IoT devices and cameras, with chassis-level high availability for security, mobility and cloud-ready access networks.

This bundle is built around the C9410R chassis with 10 slots: 8 line-card slots and 2 dedicated supervisor slots. It is configured with one C9400-SUP-1 supervisor engine and two C9400-LC-48U line cards, giving 96 x 10/100/1000 RJ-45 UPOE ports. Supervisor-1 provides up to 2 x 40G QSFP and up to 8 x 10G SFP+ uplinks. The chassis has 8 power supply bays supporting 3200W AC, 2100W AC and 3200W DC modules, and stands 13 RU in a 19-inch front rack-mount format. A Cisco DNA Advantage licence is included, so this SKU is the Advantage tier of the bundle.

The chassis supports supervisor redundancy, so a second supervisor can be added for resilience, and accepts the C9400-LC-48U, -48T, -48UX, -48P, -24XS and -24S line cards. Supervisor-1 requires Cisco IOS XE 16.6.1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Chassis architecture supports up to 9 Tbps of system bandwidth
- High-density IEEE 802.3bt PoE (60W and 90W) and UPOE power delivery
- StackWise Virtual with ISSU, SSO/NSF and uplink resiliency for high availability
- 1+1 supervisor redundancy with N+1 and N+N power supply redundancy
- Dual-serviceable fan tray with side-to-side airflow
- Cisco IOS XE with programmability, SD-Access support and container-based application hosting
- Scales to 384 access ports in a single system with 48-port line cards

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Catalyst C9410R, 10 slots
- Line-card slots: 8
- Supervisor slots: 2 (slots 5 and 6)
- Supervisor engine: 1 x C9400-SUP-1
- Line cards: 2 x C9400-LC-48U
- Access ports: 96 x 10/100/1000 RJ-45 UPOE
- Supervisor-1 uplinks: up to 2 x 40G QSFP and up to 8 x 10G SFP+
- Supervisor redundancy: Supported
- Power supply bays: 8
- Supported power supplies: 3200W AC, 2100W AC, 3200W DC
- Maximum PoE per slot: 2880 W
- Bandwidth per slot with Supervisor-1: 80 Gbps
- System bandwidth: up to 9 Tbps (chassis architecture)
- Fan-tray bays: 1
- Rack size: 13 RU, 19-inch front rack-mount
- Chassis weight (with fan tray): 29.48 kg
- Operating temperature (NEBS): -5 to 55 C
- Relative humidity: 10-93%
- Licence: Cisco DNA Advantage
- Minimum software (Supervisor-1): Cisco IOS XE 16.6.1

FAQs

Q: Which licence tier does this bundle include?
A: It includes a Cisco DNA Advantage licence, indicated by the -A suffix. It pairs with the Network Advantage tier and uses Cisco Smart Licensing.

Q: How many ports does this bundle provide?
A: Two C9400-LC-48U line cards give 96 x 10/100/1000 RJ-45 UPOE ports. The chassis has 8 line-card slots, so more cards can be added.

Q: Which power supplies does the chassis use?
A: The chassis has 8 power supply bays and supports 3200W AC, 2100W AC and 3200W DC modules. The C9400-PWR-3200AC is the recommended supply, and combined, N+1 and N+N redundancy modes are supported.

Q: Can I add a second supervisor for redundancy?
A: Yes. The C9410R has two dedicated supervisor slots and supports supervisor redundancy. The C9400-SUP-1-B is the recommended second supervisor for this bundle.

Q: What optics does the Supervisor-1 uplink use?
A: The Supervisor-1 uplinks accept 40G QSFP and 10G SFP+ optics, with up to 2 x 40G or up to 8 x 10G ports available.
