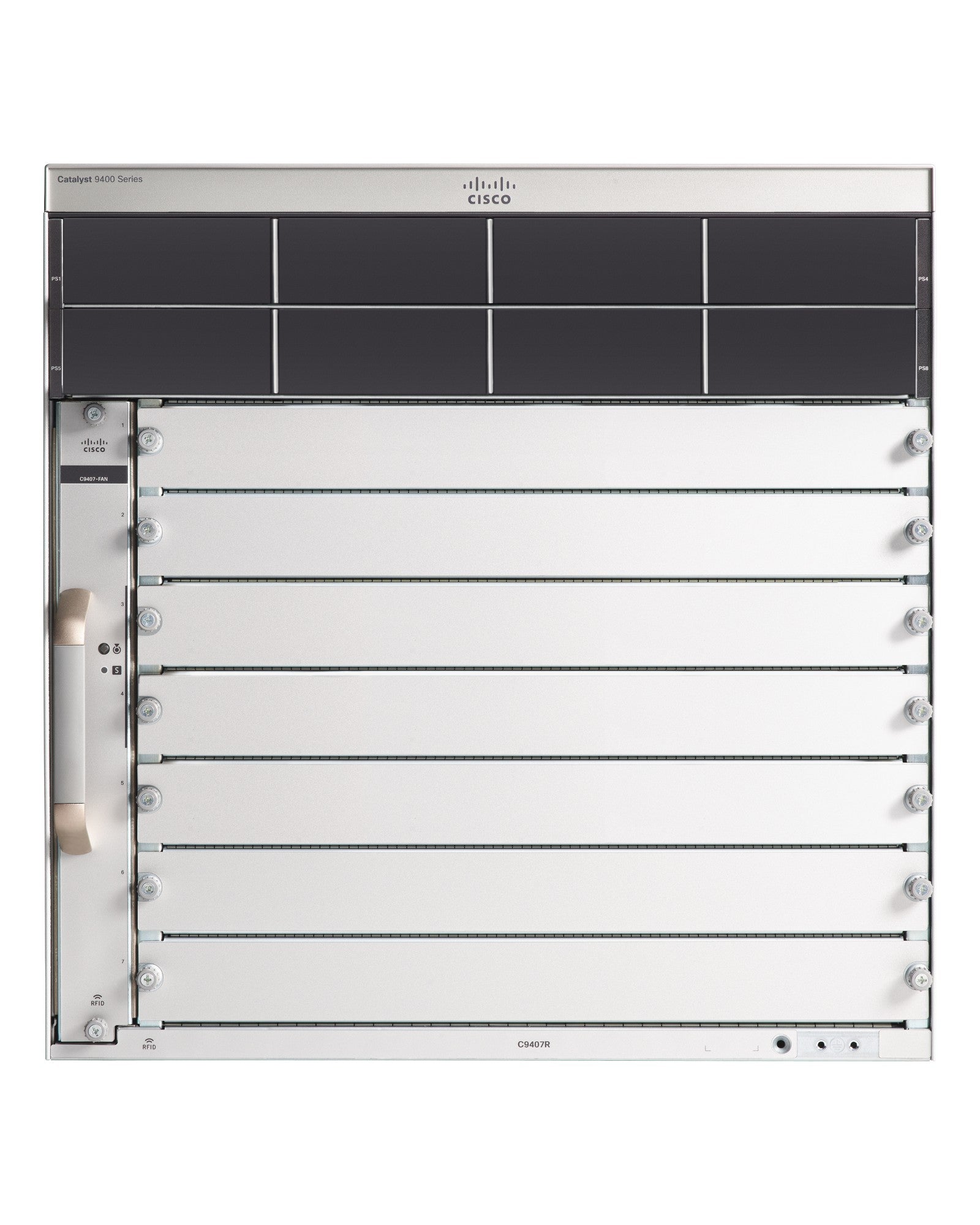

Cisco C9407R | Catalyst 9400 7-Slot Modular Switch Chassis, 10 RU

C9407R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 C9407R is a 7-slot, 10 RU modular switch chassis from Cisco's flagship enterprise access platform. It suits campus and branch access layers, high-density PoE deployments for IoT, wireless access points and UPOE+ endpoints, SD-Access fabric edge roles and wiring closets that need supervisor and power redundancy.

The chassis provides five line-card slots and two dedicated supervisor slots (slots 3 and 4) for 1+1 supervisor redundancy, with up to 480 Gbps per line-card slot when paired with a C9400X-SUP-2XL or SUP-2. It scales to 240 access ports, including 1G, 5G and 10G multigigabit, PoE+, UPOE and UPOE+ options. Eight power supply bays accept 3200W AC, 2100W AC or 3200W DC modules with integrated PoE, and a single serviceable fan tray cools the chassis at about 16 inches deep.

It works with the C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1 supervisors, plus Catalyst 9400 multigigabit, PoE and SFP-based fibre line cards. Software licensing is ordered with the supervisor, not the chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual-supervisor 1+1 redundancy with stateful switchover
- Redundant, hot-swappable power supplies with N+1, N+N and combined power modes
- Serviceable fan tray with side-to-side airflow and optional rear fan-tray access
- Closet-friendly depth of about 16 inches
- Front-accessible supervisors, line cards, power supplies and fan tray
- Embedded RFID tags on chassis and modules for asset management
- Runs Cisco IOS XE with SD-Access, programmability and model-driven telemetry
- Supports multigigabit, UPOE+ and PoE+ line cards and 10G/25G fibre options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Total slots: 7
- Line-card slots: 5
- Supervisor engine slots: 2 (slots 3 and 4)
- Supervisor engine redundancy: Yes (1+1)
- Supervisors supported: C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400-SUP-1
- Maximum bandwidth per line-card slot: up to 480 Gbps (with C9400X-SUP-2XL or SUP-2)
- Power supply bays: 8
- Power supplies supported: 3200W AC, 2100W AC, 3200W DC
- Integrated PoE: Yes
- Maximum PoE per slot: 4320W (current shipping line cards)
- Fan-tray bays: 1
- Maximum access ports: 240 (1G, 5G and 10G multigigabit, PoE+, UPOE, UPOE+; 240 x 1G SFP)
- Rack units: 10 RU
- Dimensions (H x W x D): 17.41 x 17.30 x 16.30 in (44.22 x 43.94 x 41.40 cm)
- Weight (with fan tray): 63.0 lb (28.58 kg)
- Mounting: 19-inch rack, front mount
- Operating temperature: -5 to +45 C up to 1800 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 95 percent, noncondensing
- Operating altitude: -60 to 3000 m
- MTBF: 1,571,010 hours

FAQs

Q: Does the C9407R chassis include a software licence?
A: No. The chassis itself carries no licence. Catalyst 9400 uses Network Essentials or Network Advantage tiers with a matching Cisco DNA subscription, managed through Cisco Smart Licensing, and these are ordered with the supervisor or software SKU.

Q: Which supervisor engines work in this chassis?
A: The C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1 are supported. Supervisors must go in slots 3 and 4, and line cards are not supported in those slots.

Q: What power supplies does it use?
A: It has 8 power supply bays and supports C9400-PWR-3200AC, C9400-PWR-2100AC and C9400-PWR-3200DC modules, with integrated PoE. Power supplies are ordered separately from the chassis.

Q: What minimum IOS XE version is required?
A: It depends on the supervisor: SUP-1 needs IOS XE 16.6.1, SUP-1XL needs 16.6.2, SUP-1XL-Y needs 16.9.1 and SUP-2 needs 17.7.1.

Q: How does the C9407R differ from other Catalyst 9400 chassis?
A: The C9407R is the 7-slot, 10 RU model with five line-card slots and two supervisor slots, scaling to 240 access ports.
