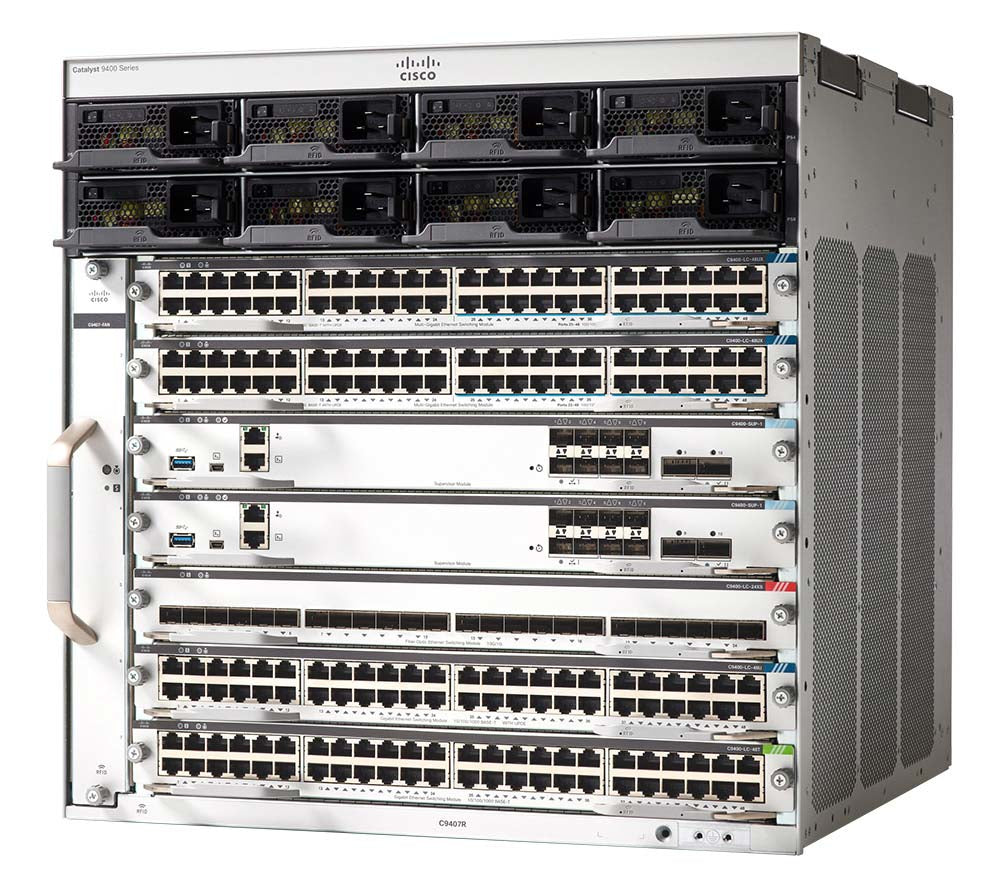

• Cisco C9407R-96U-BNDL-A silver switch with 96x 1G PoE ports
1 1

Cisco

Cisco C9407R-96U-BNDL-A | Catalyst 9400 96-Port UPOE Switch, 7-Slot, DNA Advantage

C9407R-96U-BNDL-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 is Cisco's modular enterprise access and distribution platform, built for campus wiring closets that need high-density PoE and a path to SD-Access. This bundle combines the 7-slot C9407R chassis with a Supervisor Engine 1, two 48-port UPOE line cards and Cisco DNA Advantage licensing, making it a good fit for sites powering large numbers of IP phones, access points, cameras and IoT devices.

The two C9400-LC-48U line cards provide 96 x 10/100/1000 RJ-45 UPOE ports in total, with 60W available per port. The chassis offers five line-card slots and two dedicated supervisor slots, with up to 480 Gbps of bandwidth per line-card slot and up to 9 Tbps of system bandwidth. Supervisor 1 provides modular uplinks of up to 2 x 40G QSFP or up to 8 x 10G SFP+. The chassis has eight power supply bays, with the 3200W AC supply recommended, and a maximum PoE of 2880W per slot.

The C9400-SUP-1 supervisor and C9400-LC-48U line cards require Cisco IOS XE 16.6.1 or later on the C9407R. The remaining line-card slots can take other Catalyst 9400 line cards as your port requirements grow.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular chassis with redundant supervisor support
- IEEE 802.3bt PoE with 60W UPOE line cards
- StackWise Virtual with ISSU, SSO/NSF and uplink resiliency
- N+1 and N+N power supply redundancy
- Dual-serviceable fan tray with side-to-side airflow
- Per-port PoE power sensing and PoE MIB for power visibility
- Intel x86 CPU with up to 960 GB SATA SSD on the supervisor for container-based application hosting
- Advanced routing, SD-Access capability and network virtualisation support
- Embedded RFID tags and blue beacon LED for asset management and identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: C9407R, 7 slots (5 line-card slots, 2 supervisor slots)
- Line cards: 2 x C9400-LC-48U, 48-port UPOE each
- Access ports: 96 x 10/100/1000 RJ-45 UPOE
- Supervisor engine: C9400-SUP-1 with redundancy support
- Supervisor uplinks: up to 2 x 40G QSFP or up to 8 x 10G SFP+
- Maximum PoE per slot: 2880W
- PoE per port: up to 60W (UPOE)
- Bandwidth per line-card slot: up to 480 Gbps
- System bandwidth: up to 9 Tbps
- Power supply bays: 8
- Supported power supply: 3200W AC
- Fan tray bays: 1
- Dimensions (H x W x D): 44.22 x 43.94 x 41.40 cm
- Rack units: 10 RU
- Chassis weight with fan tray: 28.58 kg
- Operating temperature: -5 to 55 C
- Relative humidity: 10 to 93%
- Operating altitude: up to 1829 m at 55 C
- Licence: Cisco DNA Advantage
- Standards: NEBS Level 3, CISPR22 Class A, RoHS5

FAQs

Q: Does this bundle include a licence?
A: Yes. The -A suffix indicates Cisco DNA Advantage licensing is included with this bundle.

Q: How many PoE devices can it power?
A: The two line cards provide 96 UPOE ports at up to 60W each. The chassis supports a maximum of 2880W PoE per slot, so total capacity depends on the power supplies installed.

Q: Which power supply does this chassis use?
A: It has eight power supply bays and supports 3200W AC supplies. The C9400-PWR-3200AC is the recommended option.

Q: What uplink options does Supervisor 1 offer?
A: The C9400-SUP-1 provides modular uplinks of up to 2 x 40G QSFP or up to 8 x 10G SFP+.

Q: Can I add more line cards later?
A: Yes. The 7-slot chassis has five line-card slots, so the three unused slots can take other Catalyst 9400 line cards.

Q: What software version is required?
A: The C9400-SUP-1 and C9400-LC-48U require Cisco IOS XE 16.6.1 or later on the C9407R chassis.
