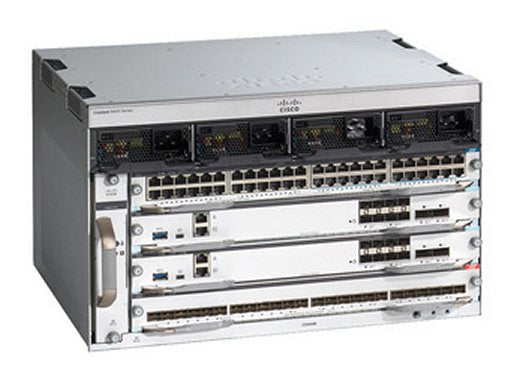

• Cisco C9404R-48U-BNDL-E 4-slot chassis with 48 UPOE ports
1 1

Cisco

Cisco C9404R-48U-BNDL-E | Catalyst 9400 4-Slot 48-Port UPOE Switch, DNA Essentials

C9404R-48U-BNDL-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 C9404R is a modular 4-slot enterprise access switch for campus and branch networks that need dense PoE and UPOE. This bundle pairs the C9404R chassis with one supervisor engine, one C9400-LC-48U line card and a Cisco DNA Essentials licence, and suits wiring closets powering IP phones, access points, IoT devices and cameras.

The C9400-LC-48U provides 48 x 10/100/1000 RJ-45 ports with UPOE, delivering up to 60W per port. The chassis offers two line-card slots and two supervisor slots with 1+1 supervisor redundancy, four power supply bays with integrated PoE, and up to 4320W of PoE per slot. Bandwidth per line-card slot ranges from 80 Gbps with Sup-1 to 480 Gbps with the Sup-2XL, and 25G, 40G and 100G port densities require a Sup-2 or Sup-2XL supervisor. The chassis is 6 RU and rack mountable.

The Cisco DNA Essentials licence covers foundational automation, management, visibility and assurance. The chassis runs Cisco IOS XE and works with 3200W AC, 2100W AC and 3200W DC power supplies, with other Catalyst 9400 line cards usable in the second slot.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular enterprise access platform with 1+1 supervisor redundancy and N+1 or N+N power supply redundancy
- StackWise Virtual technology with ISSU, SSO/NSF and uplink resiliency
- Open Cisco IOS XE operating system with programmability
- Hardware-capable 256-bit and 128-bit AES MACsec encryption
- Encrypted Traffic Analytics (ETA) support
- IPv6 in hardware with wire-rate forwarding and Flexible NetFlow up to 384,000 flows
- Dual serviceable fan tray with side-to-side airflow
- Supports Cisco SD-Access fabric deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: Cisco Catalyst C9404R, 4 slots
- Line-card slots: 2
- Supervisor slots: 2 (slots 2 and 3), 1+1 redundancy supported
- Line card: 1 x C9400-LC-48U, 48 x 10/100/1000 RJ-45 UPOE ports
- UPOE: up to 60W per port
- Maximum PoE per slot: 4320W
- Bandwidth per line-card slot: up to 480 Gbps with Sup-2XL
- Bandwidth per slot with C9400-SUP-1: 80 Gbps
- Bandwidth per slot with Sup-1XL, Sup-1XL-Y or Sup-2: 240 Gbps
- Power supply bays: 4 (3200W AC, 2100W AC or 3200W DC supported)
- Fan tray bays: 1 dual serviceable fan tray
- Dimensions (H x W x D): 26.53 x 43.94 x 41.40 cm
- Rack units: 6 RU, 19-inch rack mount
- Chassis weight with fan tray: 17.2 kg
- Operating temperature: -5 to +45 C up to 1800 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 95 percent, non-condensing
- Minimum software: IOS XE 16.9.1 with Sup-1 family, 17.7.1 with Sup-2
- Rated MTBF: 2,077,070 hours

FAQs

Q: Which licence does this bundle include?
A: It includes the Cisco DNA Essentials tier, which provides foundational automation, management, visibility and assurance. DNA subscriptions on the Catalyst 9400 come in Essentials and Advantage tiers.

Q: What power supplies does the chassis use?
A: The chassis has four power supply bays with integrated PoE and supports 3200W AC, 2100W AC and 3200W DC power supplies. UPOE delivers up to 60W per port on the 48-port line card.

Q: Can I add 25G, 40G or 100G ports?
A: Yes, but 25G, 40G and 100G port densities require a Sup-2 or Sup-2XL supervisor. The Sup-1 family supports lower bandwidth per slot.

Q: Can I fit other line cards in the second slot?
A: Yes. Other Catalyst 9400 line cards such as the C9400-LC-48P, -48T, -48UX, -48H, -24XS, -24S and -48S can be mixed in the second line-card slot.

Q: Which supervisors does the C9404R support?
A: It supports the C9400-SUP-1, SUP-1XL, SUP-1XL-Y, C9400X-SUP-2 and C9400X-SUP-2XL. Sup-2 needs IOS XE 17.7.1 or later, while the Sup-1 family needs IOS XE 16.9.1 or later.
