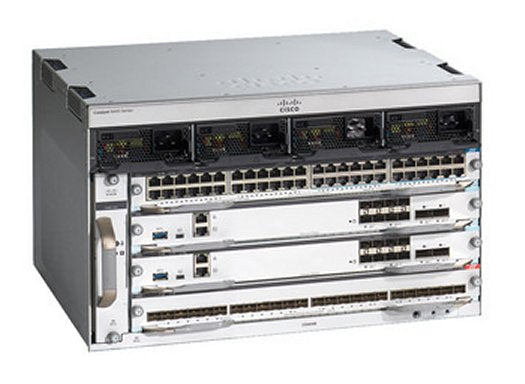

• Cisco C9404R-48U-BNDL-A 4-slot chassis with 48-port UPOE switch
1 1

Cisco

Cisco C9404R-48U-BNDL-A | Catalyst 9400 4-Slot Switch, 48-Port UPOE, DNA Advantage

C9404R-48U-BNDL-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9400 4-slot modular switch bundle is built around the C9404R chassis and suits campus and branch wiring closets that need high-density PoE. It is a good fit for powering VoIP phones, wireless access points, IoT devices and other high-draw PoE endpoints, and it supports SD-Access fabric deployments.

The bundle pairs the chassis with one supervisor engine, one C9400-LC-48U line card and a Cisco DNA Advantage licence. The line card provides 48 x 10/100/1000 RJ-45 ports with UPOE delivering up to 60 W per port. The C9404R has 2 supervisor slots and 2 line-card slots, giving 1+1 supervisor redundancy and room for a second line card. Uplinks depend on the supervisor module, with options of up to 100G on the Sup-2 and Sup-2XL. The chassis has 4 power supply bays supporting 3200W AC, 2100W AC and 3200W DC units, and a maximum PoE of 4320 W per slot.

The second line-card slot accepts other Catalyst 9400 line cards such as the C9400-LC-48T, 48P, 48UX, 24XS, 24S and 48S. Supported supervisors are the C9400-SUP-1, SUP-1XL, SUP-1XL-Y, C9400X-SUP-2 and SUP-2XL.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Redundant supervisors, power supplies and a dual-serviceable fan tray
- Stateful Switchover (SSO) and ISSU for non-disruptive software upgrades with dual supervisors
- StackWise Virtual support
- Cisco IOS XE with NETCONF, RESTCONF and gNMI programmability
- SD-Access and VXLAN with BGP-EVPN fabric support
- Flexible NetFlow visibility
- UPOE for powering high-draw PoE endpoints
- Container-based application hosting on the supervisor

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis model: Cisco Catalyst C9404R
- Total slots: 4
- Line-card slots: 2
- Supervisor engine slots: 2
- Supervisor redundancy: Yes (1+1)
- Included line card: C9400-LC-48U, 48-port 10/100/1000 RJ-45 UPOE
- UPOE: up to 60 W per port
- Maximum PoE per slot: 4320 W
- Maximum bandwidth per line-card slot: 480 Gbps (Sup-2XL), 240 Gbps (Sup-2, Sup-1XL, Sup-1XL-Y), 80 Gbps (Sup-1)
- Supported supervisors: C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400-SUP-1
- Power supply bays: 4
- Supported power supplies: 3200W AC, 2100W AC, 3200W DC
- Fan-tray bays: 1
- Dimensions (H x W x D): 26.53 x 43.94 x 41.40 cm
- Rack units: 6 RU, 19-inch rack mount
- Chassis weight with fan tray: 17.2 kg
- Operating temperature: -5 to +45 C up to 1800 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 95% non-condensing
- Rated MTBF: 2,077,070 hours
- Licence: Cisco DNA Advantage

FAQs

Q: Which licence does this bundle include?
A: It includes a Cisco DNA Advantage subscription, which pairs with the perpetual Network Advantage tier. DNA terms are 3, 5 or 7 years and are managed through Cisco Smart Licensing and a Smart Account.

Q: What power supplies does the C9404R chassis use?
A: The chassis has 4 power supply bays and supports 3200W AC, 2100W AC and 3200W DC power supplies. UPOE delivers up to 60 W per port and maximum PoE per slot is 4320 W.

Q: What determines the uplink speeds on this switch?
A: Uplinks depend on the supervisor module. The C9404R supports Sup-1, Sup-1XL, Sup-1XL-Y, Sup-2 and Sup-2XL, with up to 100G QSFP28 and 25G SFP28 on the Sup-2 and Sup-2XL.

Q: Can I add a second line card?
A: Yes. The C9404R has 2 line-card slots, so the second can take other Catalyst 9400 line cards such as the C9400-LC-48T, 48P, 48UX, 24XS, 24S or 48S.

Q: What minimum software version is required?
A: The C9400-LC-48U line card requires IOS XE 16.6.1 or later. The C9404R chassis with Sup-1, Sup-1XL or Sup-1XL-Y requires IOS XE 16.9.1 or later.
