Cisco C9404R | Catalyst 9400 4-Slot Modular Switch Chassis, 6 RU

C9404R

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

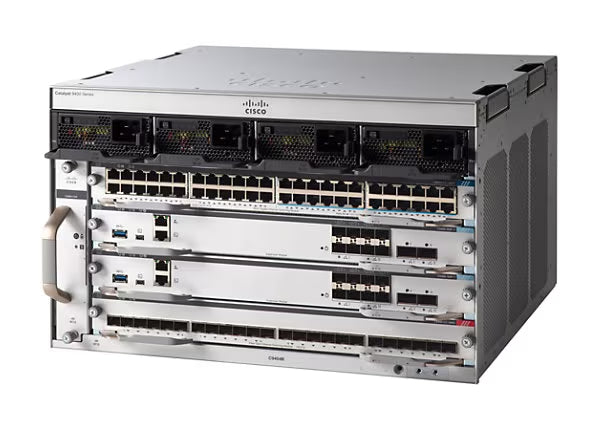

The Catalyst 9400 C9404R is the 4-slot chassis of Cisco's modular enterprise access and distribution switching platform. It suits campus and branch networks that need high-density PoE endpoints for security, IoT and mobility, with SD-Access fabric support.

The 6 RU chassis provides two line-card slots (slots 1 and 4) and two dedicated supervisor engine slots (slots 2 and 3) with 1+1 supervisor redundancy. Bandwidth per line-card slot reaches up to 480 Gbps with the C9400X-SUP-2XL supervisor. Four power supply bays take 3200W AC, 2100W AC or 3200W DC supplies, and integrated PoE delivers up to 4320W per slot with current line cards. A single hot-swappable fan tray cools the chassis. Uplinks depend on the supervisor chosen, up to 4x100/40G and 4x25/10G on Supervisor-2 and 2XL.

The chassis itself carries no software licence. Software is licensed separately through Cisco DNA subscription tiers or perpetual Network Essentials and Network Advantage, ordered with the supervisor. Supported supervisors are C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- 1+1 supervisor engine redundancy with NSF/SSO and ISSU support
- Redundant power supplies and a hot-swappable fan tray
- PoE+ (30W), UPOE (60W) and UPOE+ (90W) through line cards
- Open Cisco IOS XE with model-driven programmability and streaming telemetry
- Container-based application hosting on IOS XE
- SD-Access support with Cisco DNA licensing
- Uplinks up to 4x100/40G and 4x25/10G on Supervisor-2 and 2XL

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Total slots: 4
- Line-card slots: 2 (slots 1 and 4)
- Supervisor engine slots: 2 (slots 2 and 3)
- Supervisor redundancy: Yes
- Supported supervisors: C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400-SUP-1
- Maximum bandwidth per line-card slot: up to 480 Gbps (C9400X-SUP-2XL)
- Maximum PoE per slot: 4320W with current line cards
- Power supply bays: 4
- Supported power supplies: 3200W AC, 2100W AC, 3200W DC
- Integrated PoE: Yes
- Fan-tray bays: 1
- Rack units: 6 RU
- Dimensions (H x W x D): 26.53 x 43.94 x 41.40 cm
- Chassis weight (with fan tray): 17.2 kg
- Mounting: 19-inch rack, front mount
- Operating temperature: -5 to 45 C up to 1800 m
- Storage temperature: -40 to 70 C
- Relative humidity: 10 to 95 percent, noncondensing
- Operating altitude: -60 to 3000 m
- Rated MTBF: 2,077,070 hours

FAQs

Q: Does the C9404R come with a software licence?
A: No. The chassis itself has no software licence. Software is licensed separately with Cisco DNA subscription (Essentials or Advantage) or perpetual Network Essentials and Network Advantage tiers, ordered with the supervisor.

Q: Which supervisor engines work in the C9404R?
A: The C9400X-SUP-2XL, C9400X-SUP-2, C9400-SUP-1XL, C9400-SUP-1XL-Y and C9400-SUP-1. They occupy the two dedicated supervisor slots (2 and 3) and run in a 1+1 redundant pair.

Q: Which power supplies does it take?
A: It has four power supply bays that accept 3200W AC, 2100W AC and 3200W DC supplies, in N+N, N+1 or combined modes. The supplies and supervisor are ordered separately.

Q: How many line cards can the chassis hold?
A: Two. Line cards go in slots 1 and 4, while slots 2 and 3 are reserved for supervisor engines.

Q: What determines the uplink options?
A: Uplinks depend on the supervisor installed. Supervisor-2 and Supervisor-2XL provide up to 4x100/40G and 4x25/10G.
