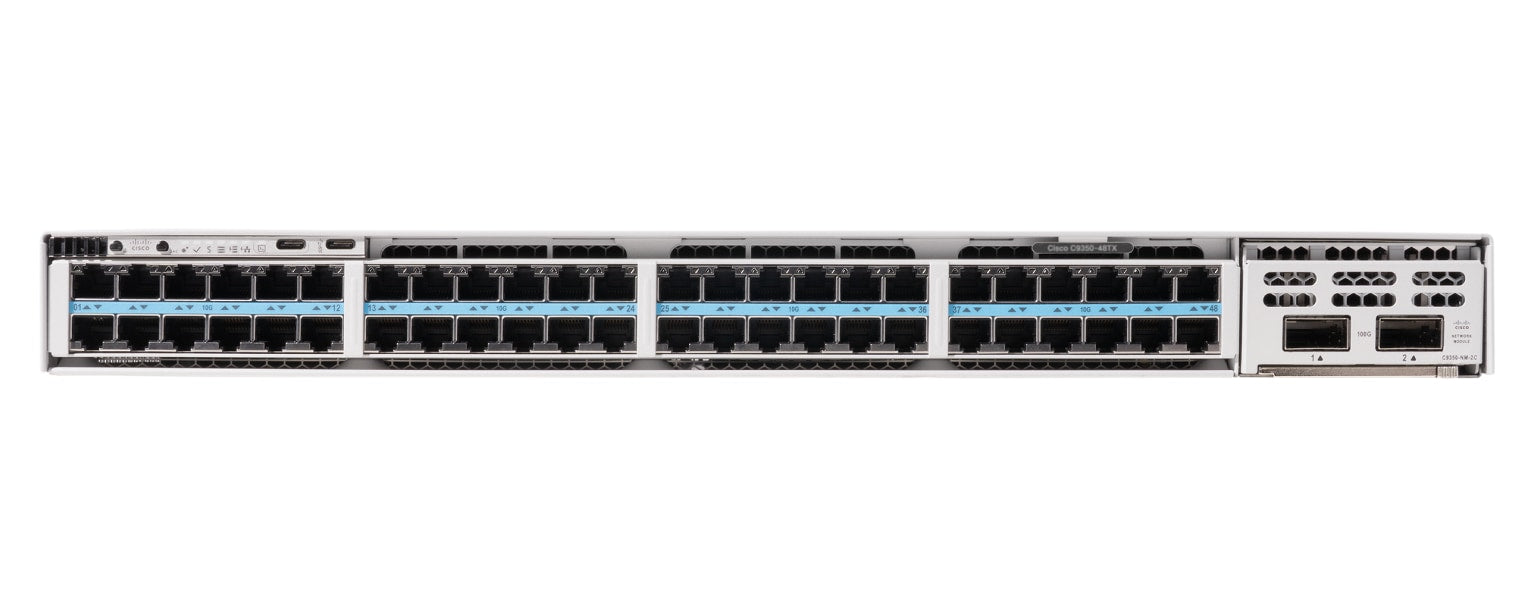

• Cisco Catalyst 9300 C9350-48TX switch with 48 mGig ports
1 1

Cisco

Cisco C9350-48TX | Catalyst 9350 48-Port 10G mGig Switch, Data Only

C9350-48TX

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9350 C9350-48TX is a stackable 1RU access-layer smart switch built for enterprise deployments that need reliable, data-only multigigabit connectivity. It suits wired aggregation for Wi-Fi 6, 6E and 7 access points and bandwidth-intensive endpoints, and is powered by dual Silicon One A100 ASICs.

The 48 downlink ports are multigigabit RJ-45, running 10M, 100M, 1G, 2.5G, 5G and 10G. This is the data-only variant with no PoE, so there is no PoE budget to plan around. Uplinks are provided through a modular network module slot, with 4x 1/10G uplinks on this configuration. Standalone switching capacity is 1760 Gbps with a forwarding rate of 1309.44 Mpps, rising to 3360 Gbps when stacked using StackWise-1.6T, which supports up to eight members and 448 multigigabit ports. The switch carries 16 GB DRAM and 18 GB flash, with support for up to 240 GB of USB 3.0 SSD storage.

Power is supplied by a PWR-C2-500WAC AC power supply, and the chassis has three power supply slots. Optional uplink network modules such as NIM-8Y and NIM-4C are listed for this platform. The minimum software release is IOS XE 17.18.1.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Dual Silicon One A100 ASICs with 1.3 Tbps per ASIC
- Multigigabit access for Wi-Fi 6, 6E and 7, IoT and bandwidth-intensive applications
- StackWise-1.6T stacking for up to 448 multigigabit ports in an eight-switch stack
- Modular network-module uplinks
- App hosting with 4 vCPU x86 and 8 GB DRAM allocation
- Hardware-based AES-256 encrypted SSD
- Three power supply slots for flexible power configuration

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10M/100M/1G/2.5G/5G/10G Multigigabit Ethernet RJ-45
- PoE: None (data only)
- Uplinks: Modular network module slot, 4 x 1/10G
- ASICs: 2 x Silicon One A100
- Switching capacity (standalone): 1760 Gbps
- Switching capacity (stacked): 3360 Gbps
- Forwarding rate (standalone): 1309.44 Mpps
- Forwarding rate (stacked): 2499.84 Mpps
- Stacking: StackWise-1.6T, 1.6 Tbps stack bandwidth, up to 8 members
- DRAM: 16 GB
- Flash: 18 GB
- SSD support: Up to 240 GB (USB 3.0)
- Packet buffer: 36 MB
- VLAN IDs: 4094
- Jumbo frames: 9216 bytes
- Power supply: PWR-C2-500WAC (AC), 3 power supply slots
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 47.2 cm
- Weight with default power supply: 8 kg (17.7 lb)
- Operating temperature: -5 to 45 C
- Minimum software: IOS XE 17.18.1

FAQs

Q: Does the C9350-48TX provide PoE?
A: No. This is the data-only variant, so none of the 48 multigigabit ports supply PoE. Powered devices such as access points will need a separate power source or a PoE-capable switch.

Q: What licensing does it use?
A: It uses Cisco unified licensing with Catalyst Essentials or Advantage tiers. Enquire with us to confirm the tier you require.

Q: What power supply does it use?
A: The default power supply is the PWR-C2-500WAC AC unit, and the chassis has three power supply slots. The 500W supply accepts 90 to 264 V AC input.

Q: Which uplink modules and stacking options are supported?
A: Uplinks are provided through a modular network module slot, and NIM-8Y and NIM-4C are listed for this platform. Stacking uses StackWise-1.6T, with up to eight switches per stack, and StackPower connectors are on the rear panel.

Q: What software release does it need?
A: The minimum supported software is IOS XE Release 17.18.1. Earlier releases are not supported on this platform.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
