Cisco

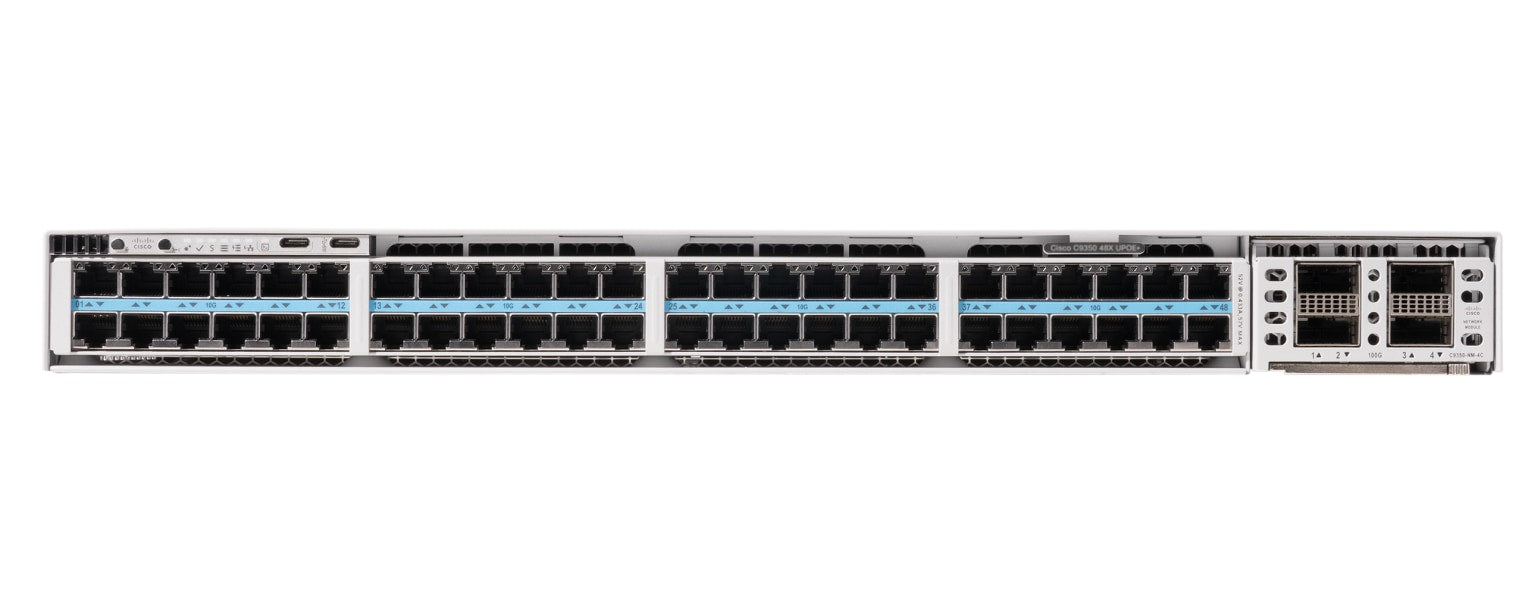

Cisco C9350-48HX | Catalyst 9350 48-Port 10G mGig UPOE+ Switch, 90W

C9350-48HX

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9350 C9350-48HX is a stackable fixed access switch for enterprise campus and branch networks that need dense Multigigabit connectivity and high-power PoE. It connects Wi-Fi 6, 6E and 7 access points and powers building automation, IP cameras and IT/OT endpoints from a single 1RU chassis.

It provides 48 Multigigabit RJ-45 ports supporting 10M, 100M, 1G, 2.5G, 5G and 10G, with UPOE+ (IEEE 802.3bt Type 4) delivering up to 90W on every port. Two Silicon One A100/L ASICs give 1760G of switching bandwidth and 1309.44 Mpps of forwarding, rising to 3360G and 2499.84 Mpps when stacked. Uplinks are handled by a field-replaceable network module slot supporting speeds up to 400G. The chassis has three power supply bays, with a 1600W supply as the default and a maximum PoE budget of 4320W with three supplies fitted.

Uplink modules that fit this switch are C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M and C9350-NM-8L. Stacking uses StackWise-1.6T with up to 8 members, and the switch requires IOS XE 17.18.1 or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fast PoE and Perpetual PoE keep endpoints powered during switch reboots
- StackWise-1.6T stacking and StackPower+ power pooling across the stack
- MACsec line-rate encryption and IPsec up to 100G with AES-GCM-256
- VXLAN and Cisco TrustSec segmentation
- Hardware Flexible NetFlow, NBAR and SPAN/ERSPAN for visibility
- Secure Boot, image signing and runtime integrity checks
- App hosting with 8 GB DRAM, 4 vCPU and 2 x 1/10G AppGig ports
- Hot-swappable Titanium/Platinum-rated redundant power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x Multigigabit RJ-45 (10M/100M/1G/2.5G/5G/10G)
- PoE standard: UPOE+ IEEE 802.3bt Type 4, 90W on all ports
- Maximum PoE budget: 4320W with three 1600W power supplies
- Uplinks: modular network module slot, up to 400G
- Compatible uplink modules: C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M, C9350-NM-8L
- ASICs: 2 x Silicon One A100/L
- Switching bandwidth: 1760G (3360G with stacking)
- Forwarding rate: 1309.44 Mpps (2499.84 Mpps with stacking)
- Stacking: StackWise-1.6T, up to 8 members; StackPower+ up to 4 switches
- Power supply bays: 3, with PWR-C2-1600WAC as the default supply
- Compatible power supplies: PWR-C2-500WAC, PWR-C2-850WAC, PWR-C2-1600WAC
- Fan modules: 3 field-replaceable, N+1 redundant, front-to-back airflow
- DRAM: 16 GB
- Flash: 18 GB
- SSD: up to 240 GB via USB 3.0 slot
- Packet buffer: up to 36 MB (18 MB per ASIC)
- VLAN IDs: 4094
- MAC addresses: up to 64,000
- IPv4 routes: up to 192,000; IPv6 routes: up to 96,000
- Jumbo frames: 9216 bytes
- Management ports: RJ-45 console, 10/100/1000 RJ-45 MGMT, USB-C console, USB-C host
- Dimensions with 1600W PSU (H x W x D): 4.4 x 44.5 x 51 cm
- Weight with default power supply: 8.5 kg
- Operating temperature: -5 to 50 C at sea level
- Minimum software: IOS XE 17.18.1

FAQs

Q: Which uplink modules does the C9350-48HX support?
A: It supports the C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y, C9350-NM-8M and C9350-NM-8L network modules, covering speeds from 1G up to 100G per port and up to 400G in total.

Q: How much PoE power can it deliver?
A: Every one of the 48 ports supports UPOE+ at up to 90W under IEEE 802.3bt Type 4. The maximum PoE budget is 4320W with three 1600W power supplies installed, and available PoE scales with the number and rating of supplies fitted.

Q: Which power supplies are compatible?
A: The chassis has three power supply bays and accepts PWR-C2-500WAC, PWR-C2-850WAC and PWR-C2-1600WAC. The default supply is the PWR-C2-1600WAC, and additional supplies increase PoE budget or provide redundancy.

Q: Can it be stacked?
A: Yes. StackWise-1.6T supports up to 8 switches in a stack, and StackPower+ pooling supports up to 4. Stack members must run the same licence level.

Q: What software version does it require?
A: It requires IOS XE Release 17.18.1 or later.
