• Cisco C9300X-48TX-E 48-port mGig switch with 4x 25G uplinks
1 1

Cisco

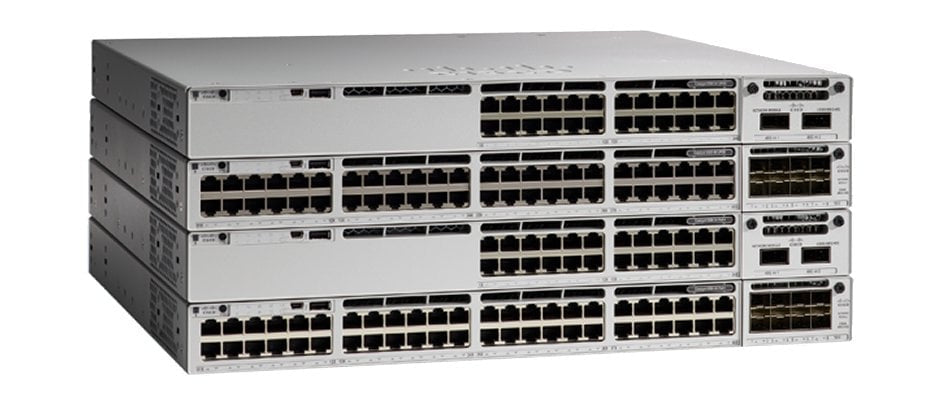

Cisco C9300X-48TX-E | Catalyst 9300X 48-Port Multigigabit Switch, Modular Uplinks

C9300X-48TX-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300X-48TX-E is an enterprise-class stackable access switch featuring 48 multigigabit ports supporting speeds up to 10GBASE-T (10G/5G/2.5G/1G/100M) with modular uplink capability. Built on the Cisco UADP 2.0sec ASIC with 100G hardware-based IPsec, this data-only switch is optimized for high-density Wi-Fi 6/6E deployments and bandwidth-intensive applications. With StackWise-1T support delivering up to 1 Tbps of stacking bandwidth across 8 switches and optional network modules for 100G, 40G, or 25G uplinks, it provides scalable performance and investment protection for growing enterprise networks.

Features

StackWise-1T stacking with up to 1 Tbps bandwidth across 8 switches for scalable, resilient architecture
- Modular uplink architecture supporting 100G, 40G, 25G, and 10G network modules for flexible deployment
- 48 multigigabit ports with IEEE 802.3bz support (10GBASE-T, 5GBASE-T, 2.5GBASE-T) for Wi-Fi 6/6E and high-speed endpoints
- 100G hardware-based IPsec encryption using Cisco UADP 2.0sec ASIC for secure WAN and cloud connectivity
- StackPower+ support for redundant, shared power distribution across up to 4 switches in a stack
- Application hosting on x86 CPU with 16 GB DRAM and external USB 3.0 SSD slot for containers and Cisco IOx apps
- Encrypted Traffic Analytics (ETA) for threat detection without decryption
- MACsec (IEEE 802.1AE) for line-rate Layer 2 encryption on all downlink and uplink ports
- Cisco TrustSec with Security Group Tags (SGT) for software-defined segmentation and micro-segmentation
- Quality of Service (QoS) with 8 hardware queues per port, DSCP/CoS marking, traffic shaping, and policing
- Layer 3 routing with OSPF, static routes, RIPv1/v2, VRRP, and policy-based routing (PBR) on Network Essentials
- Comprehensive security with IEEE 802.1X, dynamic ARP inspection, DHCP snooping, IP Source Guard, and port security
- Flexible management via CLI, web GUI, SNMP v1/v2c/v3, NETCONF, RESTCONF, and Cisco DNA Center integration
- Cisco ThousandEyes-ready for cloud and SaaS application performance monitoring (DNA Advantage required)
- Hot-swappable redundant power supplies and fans for high availability and reduced downtime
- Energy Efficient Ethernet (IEEE 802.3az) and low-power idle modes to reduce operational costs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 x 10GBASE-T multigigabit RJ45 ports (10G/5G/2.5G/1G/100M auto-sensing)
- 1 x modular network module slot (modules sold separately; supports 100G, 40G, 25G, 10G uplink options)
- No PoE support (data-only model)
- Switching capacity: 2000 Gbps (standalone), 3000 Gbps (with stacking)
- Forwarding rate: 1488 Mpps (standalone), 2232 Mpps (with stacking)
- 2 x StackWise-1T ports supporting up to 1 Tbps stacking bandwidth (up to 8 members)
- 2 x StackPower+ ports for redundant power distribution across stack
- Cisco UADP 2.0sec ASIC with 100G hardware-based IPsec encryption
- 16 GB DRAM, 16 GB flash storage, USB 3.0 SSD slot (supports up to 240 GB)
- 2 FRU power supply slots (ships with 1 x 715W AC power supply)
- 3 field-replaceable fans with N+1 redundancy
- Layer 3 switching with IPv4/IPv6 routing (RIP, OSPF, static routing, VRRP, PIM-SM/SSM)
- MAC address table: 32,000 entries; IPv4 routes: 39,000; IPv6 routes: 19,500
- Management: CLI, web GUI, SNMP, NETCONF/RESTCONF, Cisco DNA Center, Cisco ThousandEyes integration
- Network Essentials license included (perpetual)
- 1RU rack-mountable form factor

FAQs

Q: Does this switch include uplink ports?
A: The C9300X-48TX-E has one modular network module slot but does not include an uplink module by default. You can add optional network modules such as C9300X-NM-8Y (8 x 25G SFP28), C9300X-NM-4C (4 x 100G QSFP28), C9300X-NM-2C (2 x 100G QSFP28), or C9300-NM-8X (8 x 10G SFP+) to suit your architecture requirements.

Q: What is the difference between Network Essentials and Network Advantage licenses?
A: The C9300X-48TX-E ships with Network Essentials, which includes Layer 2 switching, QoS, basic Layer 3 routing (OSPF, static routes), MACsec encryption, and StackWise virtual. Network Advantage adds advanced Layer 3 features such as BGP, EIGRP, MPLS, VXLAN, policy-based routing, and more granular security and automation capabilities. You can upgrade to Network Advantage if needed.

Q: Can this switch support Wi-Fi 6 or Wi-Fi 6E access points?
A: Yes, the C9300X-48TX-E is optimized for Wi-Fi 6 and Wi-Fi 6E deployments. Each multigigabit port auto-negotiates up to 10GBASE-T, providing the bandwidth required for high-performance wireless access points. However, this model does not support PoE, so you will need either PoE-capable access points with local power or external PoE injectors.

Q: How many switches can I stack together?
A: You can stack up to 8 Catalyst 9300X or mixed 9300/9300X switches using StackWise-1T technology, delivering up to 1 Tbps of stacking bandwidth. This enables centralized management of up to 448 multigigabit ports as a single logical switch with redundant control planes. Mixed stacking between C9300X and C9300 models is supported at StackWise-480 speeds.

Q: Is this switch compatible with Cisco DNA Center?
A: Yes, the C9300X-48TX-E is fully compatible with Cisco DNA Center for intent-based networking, automation, analytics, and assurance. It also supports Cisco ThousandEyes integration (with DNA Advantage license) for enhanced network and application visibility from campus to cloud. The switch can also be ordered with Meraki cloud-management capability (C9300X-48TX-M SKU).
