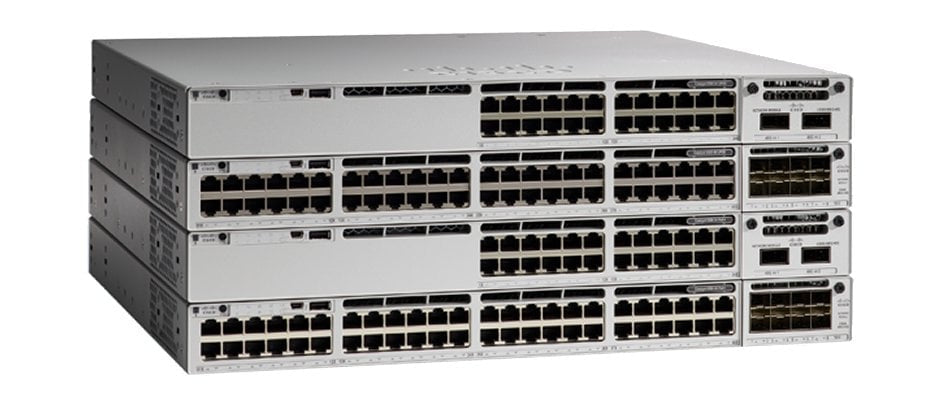

• Cisco C9300X-48TX-A 48-port mGig switch with 4x 25G uplinks
1 1

Cisco

Cisco C9300X-48TX-A | Catalyst 9300X 48-Port 10G mGig Switch, Network Advantage

C9300X-48TX-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300X is a stackable enterprise access switch for campus and branch networks that need dense 10G Multigigabit copper connectivity without PoE. It suits high-speed workstations, aggregation of Wi-Fi 6/6E access points powered separately, SD-Access fabric deployments and edge application hosting.

This model provides 48 x 10G Multigigabit RJ-45 ports (10G, 5G, 2.5G, 1G and 100M), data only with no PoE budget, plus a modular uplink slot. Switching capacity is 1,760 Gbps standalone and 2,760 Gbps when stacked, with a forwarding rate of 1309 Mpps standalone. StackWise-1T stacking supports up to 8 members. It is built on the UADP 2.0sec ASIC with hardware IPsec support and ships with the Network Advantage licence tier. The default 715W AC power supply is fitted, with a second redundant supply supported.

The uplink slot accepts the C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C and C9300X-NM-4C network modules. It stacks with other Catalyst 9300X models at StackWise-1T and with Catalyst 9300 models at StackWise-480 using STACK-T1 cables.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- UADP 2.0sec ASIC with line-rate crypto, including up to 100G hardware IPsec (requires HSEC licence key)
- Mixed stacking with Catalyst 9300 models at StackWise-480 speeds, with StackPower+ support
- Application hosting with 2 x 10G AppGig ports and a USB 3.0 SSD slot for container storage
- AES-256 MACsec encryption, Encrypted Traffic Analytics, Trust Anchor module and Secure Boot
- Open APIs including NETCONF, RESTCONF, gNMI and YANG model-driven telemetry
- SD-Access and BGP-EVPN/VXLAN fabric capable
- Manageable via Catalyst Center, Meraki dashboard or CLI
- Dual redundant, field-replaceable power supplies and N+1 fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9300X-48TX-A
- Downlink ports: 48 x 10G Multigigabit RJ-45 (10G/5G/2.5G/1G/100M), data only
- PoE: none (data-only model)
- Uplinks: modular, network module slot
- Switching capacity: 1,760 Gbps standalone, 2,760 Gbps with stacking
- Forwarding rate: 1309 Mpps standalone, 2232 Mpps with stacking
- Stacking: StackWise-1T, 1 Tbps, up to 8 members
- Default power supply: PWR-C1-715WAC-P, 715W AC
- DRAM: 16 GB
- Flash: 16 GB
- Packet buffer: 32 MB
- Flexible NetFlow: up to 128,000 flows
- Total MAC addresses: 32,000
- IPv4 routes: 39,000 (24,000 direct, 15,000 indirect)
- IPv6 routing entries: 19,500
- Multicast routing scale: 8,000
- ACL scale entries: 8,000
- QoS scale entries: 4,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions, chassis only (H x W x D): 4.4 x 44.5 x 48.3 cm
- Weight with default power supply: 6.62 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- Typical power consumption: 266.2 W (ATIS weighted average, no network module, 115 VAC)

FAQs

Q: Which licence tier does this SKU carry?
A: The -A suffix denotes the Network Advantage perpetual licence, which includes the Network Essentials features plus advanced routing, segmentation and security. A matching Cisco Catalyst/DNA subscription term licence is required with new orders.

Q: Does this switch provide PoE?
A: No. The C9300X-48TX-A is a data-only model with no PoE budget. Powered devices such as access points need a separate power source, or a PoE-capable model such as the C9300X-48HX.

Q: Which uplink modules does it support?
A: It uses the modular uplink slot with the C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C and C9300X-NM-4C network modules.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300X models at StackWise-1T speeds and with Catalyst 9300 models at StackWise-480 speeds using STACK-T1-50CM, STACK-T1-1M or STACK-T1-3M cables. It is not stackable with 9300L or 9300LM models.

Q: Which power supply does it use?
A: The default supply is the PWR-C1-715WAC-P, a 715W AC unit for 100-240 VAC input. A second redundant supply is supported, with 350W, 715W, 1100W and 1900W options.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
