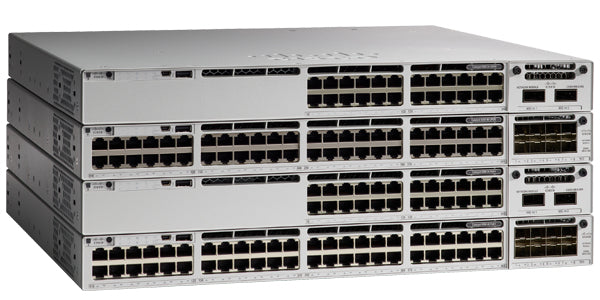

• Cisco Catalyst 9300X-48HXN-E 48-port mGig PoE++ switch stack
1 1

Cisco

Cisco C9300X-48HXN-E | Catalyst 9300X 48-Port mGig UPOE+ Switch, Network Essentials

C9300X-48HXN-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300X is a stackable enterprise access switch for campus and branch networks that need high-density Multigigabit copper and high-power PoE. It suits Wi-Fi 6/6E access points, IP cameras, digital signage, LED lighting and other power-hungry endpoints, with SD-Access fabric deployment and secure IPsec edge connectivity as options.

This model provides 48 Multigigabit copper ports, made up of 8x 10G ports (10G/5G/2.5G/1G/100M) and 40x 5G ports (5G/2.5G/1G/100M), all with Cisco UPOE+ delivering up to 90W per port. Switching capacity is 960 Gbps standalone and 1,960 Gbps in a stack, with a forwarding rate of 714.24 Mpps standalone. It carries 16 GB of DRAM and 16 GB of flash. Uplinks are modular, and stacking uses StackWise-1T with up to 8 members. The default 1100W AC power supply gives 690W of available PoE, and a second supply raises the budget to 1040W or more depending on the combination.

The Network Essentials licence tier (the -E suffix) covers foundational Layer 2 and Layer 3 switching, routed access, 802.1X and MACsec-128. It accepts C9300X network modules, stacks with other C9300X switches at StackWise-1T speeds, and stacks with Catalyst 9300 models at StackWise-480 speeds.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- UADP 2.0sec ASIC with line-rate crypto, including 100G hardware IPsec when an HSEC key is installed
- StackWise-1T stacking up to 8 members, with StackPower+ for power resiliency
- Cisco UPOE+ up to 90W per port, with Perpetual PoE and Fast PoE
- Multigigabit ports for Wi-Fi 6/6E access points over Cat 5e/6/6A cabling
- Application hosting with 2x 10G AppGig ports and optional external USB 3.0 SSD
- MACsec-128, Encrypted Traffic Analytics, Secure Boot and Trust Anchor module
- Model-driven programmability: NETCONF, RESTCONF, gNMI, YANG and streaming telemetry
- Flexible NetFlow, NBAR2 and eight egress QoS queues per port
- Hot-swappable redundant power supplies and fans with N+1 fan redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9300X-48HXN-E
- Downlink ports: 48 Multigigabit copper, 8x 10G (10G/5G/2.5G/1G/100M) + 40x 5G (5G/2.5G/1G/100M)
- PoE standard: Cisco UPOE+ (IEEE 802.3bt), up to 90W per port on all 48 ports
- Uplinks: Modular, C9300X network modules
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- Available PoE with default supply: 690W
- Switching capacity: 960 Gbps (1,960 Gbps with stacking)
- Forwarding rate: 714.24 Mpps (1458.24 Mpps with stacking)
- Stacking: StackWise-1T, up to 8 members
- Memory: 16 GB DRAM, 16 GB flash
- Packet buffer: 16 MB
- Total MAC addresses: 32,000
- IPv4 routes: 39,000
- IPv6 routing entries: 19,500
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D) with default power supply: 4.4 x 44.5 x 52.4 cm
- Weight with default power supply: 6.44 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- MTBF: 188,200 hours

FAQs

Q: Does this switch need a licence or subscription?
A: It ships with the Network Essentials perpetual licence, as shown by the -E suffix. A Cisco Catalyst or DNA subscription (Essentials or Advantage) is also required, and Smart Licensing through a Smart Account is used. Advanced routing, MPLS, VXLAN and SD-Access need the Network Advantage tier.

Q: How much PoE budget does it provide?
A: A single default 1100W AC supply gives 690W of available PoE. Adding a second supply raises the budget to between 1040W and 3390W depending on the supply combination.

Q: Which uplink modules does it work with?
A: It works with the C9300X network modules C9300X-NM-8M, C9300X-NM-8Y and C9300X-NM-2C. The C9300X-NM-4C is not compatible with the 48HXN models, and module port counts are limited on this model.

Q: What can it be stacked with?
A: It stacks with other C9300X switches at StackWise-1T speeds and with Catalyst 9300 models at 480 Gbps at the same licence level. It does not stack with C9300L or C9300LM models. Stacking uses STACK-T1 cables.

Q: How does it differ from its sibling SKUs?
A: The 48HXN-E is the 48-port model with 8x 10G and 40x 5G Multigigabit ports, 90W UPOE+ and the Network Essentials tier. The -A version of the same hardware carries the Network Advantage tier instead.
