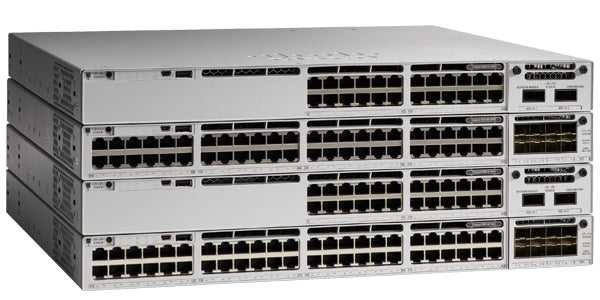

• Cisco Catalyst 9300X-48HXN-A switch stack with mGig ports
1 1

Cisco

Cisco C9300X-48HXN-A | Catalyst 9300X 48-Port Multigigabit Switch, 90W UPoE+, 690W

C9300X-48HXN-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9300X-48HXN-A is a high-performance Layer 3 enterprise access switch designed for demanding Wi-Fi 6/6E and IoT deployments. Featuring 40 ports of 5 Gbps and 8 ports of 10 Gbps Multigigabit connectivity, all capable of delivering 90W UPoE+ power, it eliminates speed and power bottlenecks in modern campus networks. With StackWise-1T technology providing 1 Tbps of stacking bandwidth, modular uplink options supporting up to 100 Gbps, and hardware-accelerated 100 Gbps IPsec encryption, this switch delivers the scalability, security, and performance required for next-generation enterprise edge infrastructure.

Features

90W UPoE+ (802.3bt Type 4) on all 48 ports for high-power devices
- Multigigabit Ethernet supporting 100M/1G/2.5G/5G/10G speeds over existing Cat 5e/6 cabling
- StackWise-1T technology with 1 Tbps stacking bandwidth (up to 8 switches, 448 ports)
- 100 Gbps hardware-accelerated IPsec for secure site-to-site and cloud connectivity
- AES-256 MACsec encryption for data-in-transit protection
- Modular uplink slot supporting 10G/25G/40G/100G network modules
- StackPower+ for power redundancy and sharing across stack members
- Advanced Layer 3 routing: OSPF, EIGRP, BGP, MPLS, VRF, segment routing
- Application hosting with quad-core x86 CPU, 16 GB DRAM, 16 GB Flash
- USB 3.0 SSD slot for containerized services and network analytics
- Cisco DNA Center integration for intent-based networking and automation
- Cisco ThousandEyes support for end-to-end network visibility
- Flexible NetFlow (FNF) for advanced traffic analytics
- TrustSec and MACsec for identity-based network segmentation
- Dual hot-swappable power supplies with N+1 redundancy support
- Field-replaceable fans with N+1 redundancy
- IEEE 1588v2 Precision Time Protocol (PTP) for time-sensitive applications
- Audio Video Bridging (AVB) for converged multimedia networks
- Cross-stack EtherChannel for high-availability uplinks
- Cisco IOS XE operating system with model-driven programmability

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 48 (40x 100M/1G/2.5G/5G + 8x 100M/1G/2.5G/5G/10G Multigigabit)
- PoE Standard: 90W UPoE+ (802.3bt Type 4) on all 48 ports
- PoE Budget: 690W (with default 1100W AC power supply PWR-C1-1100WAC-P)
- Switching Capacity: 2 Tbps (standalone), 3 Tbps (with stacking)
- Forwarding Rate: 1488 Mpps (standalone), 2232 Mpps (with stacking)
- Stacking Technology: StackWise-1T (1 Tbps bandwidth, up to 8 members, 448 ports max)
- Uplink Module Slot: 1x modular slot (supports C9300X-NM series modules for 10G/25G/40G/100G)
- Memory: 16 GB DRAM, 16 GB Flash
- CPU: Quad-core x86 processor with USB 3.0 SSD slot
- ASIC: Cisco UADP 2.0sec with 100 Gbps hardware IPsec and AES-256 MACsec
- License Included: Network Advantage (advanced Layer 3 routing, MPLS, segment routing)
- Dimensions (W x D x H): 44.5 cm x 52.3 cm x 4.4 cm (17.5 in x 20.6 in x 1.7 in)
- Weight: 6.4 kg (14.2 lbs) with default power supply and fans
- Power Supply: Dual hot-swappable slots, 1x 1100W AC included, optional redundant PSU
- Cooling: 3 field-replaceable fans with N+1 redundancy
- Management: Cisco IOS XE, CLI, SNMP, NETCONF, REST API, Cisco DNA Center
- Certifications: UL 60950-1, EN 60950-1, IEC 60950-1, FCC Part 15 Class A

FAQs

Q: What is the difference between the C9300X-48HXN-A and the C9300X-48HX-A?
A: The C9300X-48HXN-A features a mixed port configuration with 40x 5G ports and 8x 10G ports, while the C9300X-48HX-A has all 48 ports capable of 10G speeds. The HXN model provides optimized density for typical enterprise deployments where only some ports require full 10G capability, while maintaining 90W UPoE+ across all ports. Both models support the same modular uplinks and stacking technology.

Q: Can this switch stack with older Catalyst 9300 models?
A: Yes, the C9300X-48HXN-A can stack with Catalyst 9300 and other Catalyst 9300X models using StackWise cables at StackWise-480 speeds for backward compatibility. When stacking with 9300X models exclusively, it operates at full StackWise-1T (1 Tbps) speeds. It cannot stack with C9300L fixed-uplink models or C9300 higher-scale models (C9300-24UB/48UB series).

Q: What uplink modules are compatible with this switch?
A: The C9300X-48HXN-A has one modular uplink slot supporting various network modules including C9300X-NM-8Y (8x 25G SFP28), C9300X-NM-2C (2x 100G QSFP28), C9300-NM-8X (8x 10G SFP+), and C9300-NM-2Q (2x 40G QSFP+). Note that when using the C9300X-NM-8Y module with the HXN model, ports 7 and 8 on the module are disabled due to hardware limitations.

Q: How much total PoE power can be delivered with additional power supplies?
A: The default 1100W PSU provides 690W PoE budget. By adding a secondary power supply, total PoE budget increases to: 940W (with 350W secondary), 1305W (with 715W secondary), 1690W (with 1100W secondary), or 2490W (with 1900W secondary). The 1900W PSU requires 230V input and special C21 power cables.

Q: What advanced features does the Network Advantage license enable?
A: The included Network Advantage license unlocks full Layer 3 routing protocols (OSPF, EIGRP, BGP), MPLS Layer 2/3 VPNs, segment routing, VRF-lite, policy-based routing, enhanced QoS, and application hosting capabilities. It also enables integration with Cisco DNA Center for software-defined access, network assurance, and analytics.
