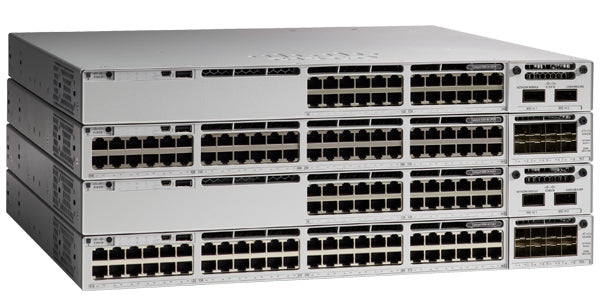

• Cisco Catalyst 9300X-48HX-E switch stack with 48 mGig ports
1 1

Cisco

Cisco C9300X-48HX-E | Catalyst 9300X 48-Port 10G mGig UPoE+ Switch, 590W, Network Essentials

C9300X-48HX-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300X-48HX-E is a high-performance enterprise access switch featuring 48 multigigabit ports supporting speeds up to 10 Gbps with 90W UPoE+ on every port. Built on the UADP 2.0sec ASIC with hardware-based 100G IPsec encryption, it delivers exceptional performance for Wi-Fi 6/6E deployments, IP surveillance, and high-density access environments. With StackWise-1T technology providing up to 1 Tbps stacking bandwidth and modular uplink flexibility supporting 100G/40G/25G options, this switch is ideal for modern campus networks requiring both power density and scalability.

Features

StackWise-1T stacking technology: up to 1 Tbps stacking bandwidth with 8-member stack support
- Universal Power over Ethernet Plus (UPoE+): 90W per port IEEE 802.3bt Type 4 support
- Hardware-based 100G IPsec encryption via UADP 2.0sec ASIC
- MACsec 256-bit encryption on all ports for wire-speed secure communications
- Layer 2 switching: VLANs, Spanning Tree (RSTP, MSTP), Link Aggregation (LACP)
- Layer 3 routing: Static routing, OSPF, RIPv2 (Network Essentials)
- Quality of Service (QoS): 802.1p CoS, DSCP, rate limiting, traffic shaping
- Security: 802.1X authentication, MAC-based authentication, Web authentication, RADIUS, TACACS+
- Cisco TrustSec with Security Group Tagging (SGT) support
- Encrypted Traffic Analytics (ETA) for threat detection without decryption
- Application hosting with x86 CPU, 16GB DRAM, and external USB 3.0 SSD slot
- Flexible NetFlow (FNF) for traffic analysis and monitoring
- StackPower+ for intelligent power pooling and redundancy across stack members
- Hot-swappable, dual redundant power supplies and fans with N+1 redundancy
- Cisco DNA Center integration for policy-based automation and analytics
- NETCONF, RESTCONF, and model-driven programmability (YANG models)
- Energy Efficient Ethernet (EEE) IEEE 802.3az support
- Cisco IOS XE operating system with programmability and open APIs
- Stateful Switchover (SSO) with sub-50ms failover in stack
- ThousandEyes integration for end-to-end network visibility (with DNA Advantage)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10GBASE-T multigigabit ports (10G/5G/2.5G/1G/100M)
- 90W UPoE+ (IEEE 802.3bt) on all 48 ports
- Default PoE budget: 590W with 1100W AC power supply (PWR-C1-1100WAC-P)
- Modular uplink slot supporting optional network modules (100G/40G/25G/10G/1G)
- StackWise-1T stacking: up to 8 switches, 1 Tbps stacking bandwidth
- 2x StackWise-1T ports, 2x StackPower+ ports
- Network Essentials license included (Layer 2/3 switching, OSPF, QoS)
- ASIC: Cisco UADP 2.0sec with hardware-based 100G IPsec encryption
- Memory: 16 GB DRAM, 16 GB Flash
- x86 CPU with application hosting support
- Switching capacity: wire-speed, non-blocking for IPv4 and IPv6
- Dual redundant, field-replaceable power supply slots (ships with 1 PSU)
- 3 field-replaceable fans with N+1 redundancy
- Form factor: 1RU rack-mountable
- Dimensions: 1.7" H x 17.5" W x 19" D (43 x 445 x 483 mm)
- Maximum power consumption: 1100W
- Management: CLI, WebUI, SNMP, Cisco DNA Center, NETCONF, RESTCONF
- MACsec 256-bit encryption on all ports
- Compliance: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3bt, 802.1Q, 802.1x, 802.1D, 802.1w, 802.1s

FAQs

Q: What uplink modules are compatible with the C9300X-48HX-E?
A: The C9300X-48HX-E supports optional network modules including C9300X-NM-2C (2x 100G QSFP28), C9300X-NM-4C (4x 100G QSFP28), C9300X-NM-8Y (8x 25G/10G/1G SFP28), and C9300X-NM-8M (8x 10G/1G SFP+). Modules are sold separately and provide flexible uplink scalability for aggregation and core connections.

Q: What is the maximum PoE budget and how many 90W devices can be powered?
A: With the default 1100W AC power supply, the switch provides 590W PoE budget. With optional secondary power supplies, the PoE budget can be increased to 1690W, supporting up to 36 ports at full 90W UPoE+ simultaneously on a standalone switch, ideal for high-power devices like Wi-Fi 6E access points and PTZ cameras.

Q: Can the C9300X-48HX-E stack with other Catalyst 9300 Series switches?
A: Yes, the C9300X-48HX-E supports stacking with other Catalyst 9300X models at StackWise-1T speeds (1 Tbps) and can also stack with Catalyst 9300 models at StackWise-480 speeds. Up to 8 switches can be stacked for unified management with a single control plane. StackWise-1T cables are sold separately.

Q: What is the difference between Network Essentials and Network Advantage licenses?
A: Network Essentials provides Layer 2/3 switching, basic routing (OSPF), QoS, security features, and basic network visibility. Network Advantage adds advanced routing protocols (BGP, EIGRP), enhanced security (TrustSec, MACsec), application visibility and control (AVC), and advanced analytics. Both require a Cisco DNA subscription (3, 5, or 7 years).

Q: Is this switch suitable for Wi-Fi 6E access point deployments?
A: Absolutely. The C9300X-48HX-E is specifically designed for high-density Wi-Fi 6/6E deployments with 48 ports of 10G multigigabit connectivity and 90W UPoE+ to power the latest access points. The 10G port speed ensures sufficient bandwidth for multiple high-performance APs, while the high PoE budget supports power-hungry Wi-Fi 6E devices without limitations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
