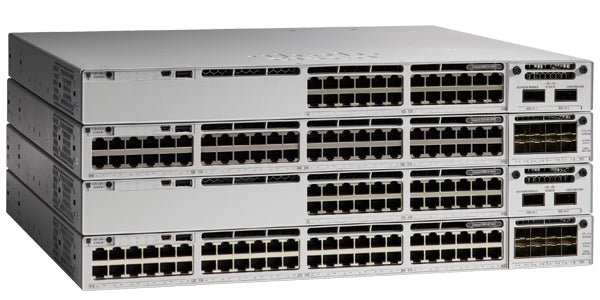

• Cisco C9300X-48HX-A Catalyst 9300 switch stack with 48 mGig ports
1 1

Cisco

Cisco C9300X-48HX-A | Catalyst 9300X 48-Port 10G mGig UPOE+ Switch, Network Advantage

C9300X-48HX-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300X is a stackable enterprise access switch for campus and branch networks that need high-power PoE and multigigabit speeds at the edge. It suits Wi-Fi 6 and 6E access points, IoT, smart building and OT endpoints, and multigigabit desktops, and it can act as an SD-Access fabric edge with secure IPsec connectivity.

This model provides 48 x 10G Multigigabit copper ports (10G/5G/2.5G/1G/100M), each with Cisco UPOE+ delivering up to 90W. A modular uplink bay accepts the C9300X-NM-2C, C9300X-NM-4C, C9300X-NM-8M and C9300X-NM-8Y network modules. Switching capacity is 1,760 Gbps (2,760 Gbps when stacked) with a forwarding rate of 1309 Mpps. It carries 16 GB of DRAM and 16 GB of flash, and ships with the perpetual Network Advantage licence, which includes Network Essentials features.

The default 1100W AC power supply provides a 590W PoE budget, rising to 1390W with a 1900W supply and up to 3290W with dual 1900W supplies. It stacks with other C9300X models over StackWise-1T and with Catalyst 9300 models at StackWise-480 speed, and runs Cisco IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- StackWise-1T stacking with up to 1 Tbps bandwidth, including mixed stacking with Catalyst 9300 models
- 90W UPOE+ on up to 48 ports in standalone mode
- UADP 2.0sec ASIC with line-rate hardware IPsec up to 100G (requires HSEC key)
- StackPower+ for power resiliency and higher power budgets across a stack
- Application hosting with Intel QAT and 2x 10G AppGig ports
- MACsec-256 encryption, Encrypted Traffic Analytics, Trust Anchor and Secure Boot
- Open APIs including NETCONF, RESTCONF, gNMI/gRPC and YANG model-driven telemetry
- SD-Access fabric support and VXLAN BGP-EVPN
- Perpetual PoE and Fast PoE
- Hot-swappable redundant power supplies and three field-replaceable fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10G Multigigabit copper (10G/5G/2.5G/1G/100M)
- PoE: Cisco UPOE+, up to 90W per port
- Uplinks: modular uplink bay (C9300X-NM-2C, C9300X-NM-4C, C9300X-NM-8M, C9300X-NM-8Y)
- Switching capacity: 1,760 Gbps (2,760 Gbps with stacking)
- Forwarding rate: 1309 Mpps (2232 Mpps with stacking)
- Stacking: StackWise-1T, up to 8 members
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- PoE budget: 590W with 1100W PSU, 1390W with 1900W PSU, 3290W with dual 1900W PSUs
- DRAM: 16 GB
- Flash: 16 GB
- Packet buffer: 32 MB
- Total MAC addresses: 32,000
- IPv4 routes: 39,000
- IPv6 routing entries: 19,500
- ACL scale entries: 8,000
- QoS scale entries: 4,000
- Flexible NetFlow: 128,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 56.0 cm
- Weight with default power supply: 6.62 kg
- Operating temperature: -5 C to +45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- Licence: perpetual Network Advantage

FAQs

Q: Which licence does this switch come with?
A: It ships with the perpetual Network Advantage licence, which includes Network Essentials features. A matching Cisco Catalyst or Cisco DNA subscription is required at time of order, and Smart Licensing with a Smart Account is used. IPsec also requires an HSEC key.

Q: What PoE budget does it provide?
A: With the default 1100W AC power supply the PoE budget is 590W. A single 1900W supply raises it to 1390W, and dual 1900W supplies provide up to 3290W. Each port supports up to 90W UPOE+.

Q: Which uplink modules does it use?
A: It has a modular uplink bay that accepts the C9300X-NM-2C, C9300X-NM-4C, C9300X-NM-8M and C9300X-NM-8Y modules. Catalyst 9300 network modules are not supported on C9300X models.

Q: Can it be stacked with other Catalyst 9300 switches?
A: Yes. It stacks with other C9300X models at StackWise-1T speed and with Catalyst 9300 models at StackWise-480 speed. It is not stackable with C9300L/LM models or the higher-scale 9300 B models.

Q: How does it differ from other C9300X-48HX SKUs?
A: This SKU is the Network Advantage version with 48 x 10G Multigigabit ports and 90W UPOE+. Sibling SKUs differ mainly in licence tier.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
