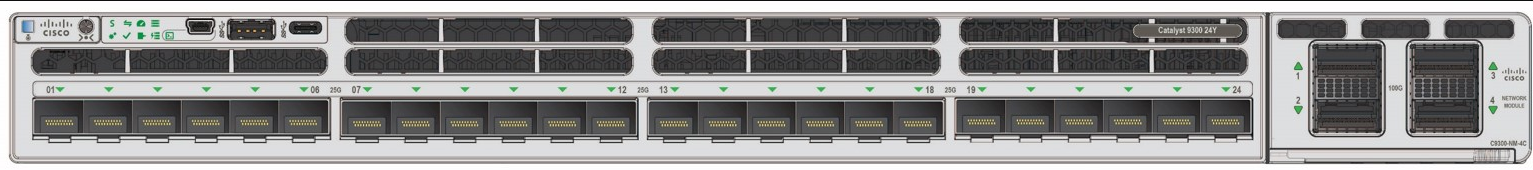

• Silver cisco c9300x-24y-e network switch with 24 25g sfp28 ports and ventilation slots on the back panel
  • Cisco C9300X-24Y-E Catalyst 9300 switch with 24x 25G SFP28 ports
1 2

Cisco

Cisco C9300X-24Y-E | Catalyst 9300X 24-Port 25G SFP28 Switch, Modular 100G Uplinks

C9300X-24Y-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300X-24Y-E is a high-performance Layer 3 stackable switch designed for enterprise distribution layers and data center aggregation. Featuring 24 multi-rate SFP28 ports supporting 25G, 10G, and 1G speeds, it delivers exceptional bandwidth for high-density fiber aggregation with modular uplink support up to 100G. Built on UADP 2.5 ASIC with StackWise-1T technology providing 1 Terabit stacking bandwidth, this Network Essentials licensed switch offers robust Layer 2 switching, foundational Layer 3 routing, MACsec encryption, and advanced security features for scalable modern networks.

Features

StackWise-1T technology with 1 Terabit stacking bandwidth for up to 8 switches
- Layer 2 switching with VLAN support, STP, RSTP, MSTP
- Layer 3 routing: static routing, OSPF for Routed Access (Network Essentials)
- MACsec AES-256 encryption for line-rate security on all ports
- Encrypted Traffic Analytics (ETA) for threat detection without decryption
- Flexible NetFlow (FNF) with hardware-based flow collection up to 128,000 flows
- Quality of Service (QoS): Class-based Weighted Fair Queuing, WRED
- IEEE 802.1x authentication and Network Access Control
- StackPower+ technology for shared power across stack members
- Dual redundant power supply support for high availability
- Software-Defined Access (SD-Access) ready
- Application hosting with x86 CPU, enhanced RAM, and 2x 10G AppGig ports
- IPv4/IPv6 dual-stack support with hardware-based forwarding
- VXLAN support for network virtualization
- Precision Time Protocol (IEEE 1588v2) for sub-microsecond clock synchronization
- Integrated Wireshark for packet capture and troubleshooting
- Non-stop routing (NSR) and Stateful Switchover (SSO)
- Compatible with Cisco Catalyst Center and Meraki dashboard management
- ThousandEyes network visibility (with DNA Advantage)
- Backward compatible with Catalyst 9300 power supplies and stacking cables

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24 x 25G/10G/1G SFP28 fiber ports (multi-rate)
- Modular uplink bay supporting optional network modules (up to 2x 100G or 40G)
- Switching capacity: 2000 Gbps standalone, 3000 Gbps with stacking
- Forwarding rate: 1488 Mpps standalone, 2232 Mpps with stacking
- StackWise-1T technology: 1 Terabit stacking bandwidth, up to 8 switches
- Network Essentials license included (perpetual)
- Layer 3 managed, stackable
- MAC address table: 32,000 entries
- Dual redundant power supply slots (1 x 715W AC included, PWR-C1-715WAC-P)
- Power consumption: 715W typical
- Dimensions: 1.73 x 17.5 x 17.6 in (4.4 x 44.5 x 44.7 cm), 1RU
- Weight: 16.2 lb (7.35 kg)
- Operating temperature: 0°C to 45°C
- Management: Cisco DNA Center, CLI, SNMP, REST API, NETCONF
- 3 field-replaceable fans with N+1 redundancy
- Cisco IOS XE Software

FAQs

Q: What port speeds does the C9300X-24Y-E support?
A: The 24 SFP28 ports are multi-rate and support 25G, 10G, and 1G speeds, providing flexibility to connect various network devices and allowing seamless migration from 10G to 25G infrastructure.

Q: What uplink options are available for this switch?
A: The C9300X-24Y-E features a modular uplink bay that supports optional C9300X-NM series network modules, enabling 100G, 40G, or 25G uplinks. The default configuration does not include a network module, which must be purchased separately.

Q: What is the difference between Network Essentials and Network Advantage licenses?
A: Network Essentials provides Layer 2 switching, basic Layer 3 routing (OSPF Routed Access), QoS, and security features like MACsec. Network Advantage adds advanced routing protocols (BGP, EIGRP, MPLS), enhanced security, and additional enterprise features. Both are perpetual licenses.

Q: Can the C9300X-24Y-E be stacked with other Catalyst 9300 models?
A: Yes, the C9300X-24Y-E supports StackWise-1T stacking with other C9300X and C9300 modular uplink models, providing up to 1 Terabit of stacking bandwidth. Mixed stacking between C9300X and C9300 models operates at StackWise-480 speeds. It cannot stack with C9300L fixed uplink models.

Q: What are typical use cases for this switch?
A: The C9300X-24Y-E is ideal for enterprise distribution layer aggregation, data center access for high-speed server connectivity, campus aggregation of 10G/25G access switches, and high-bandwidth applications requiring fiber connectivity with modular 100G uplinks to the network core.
