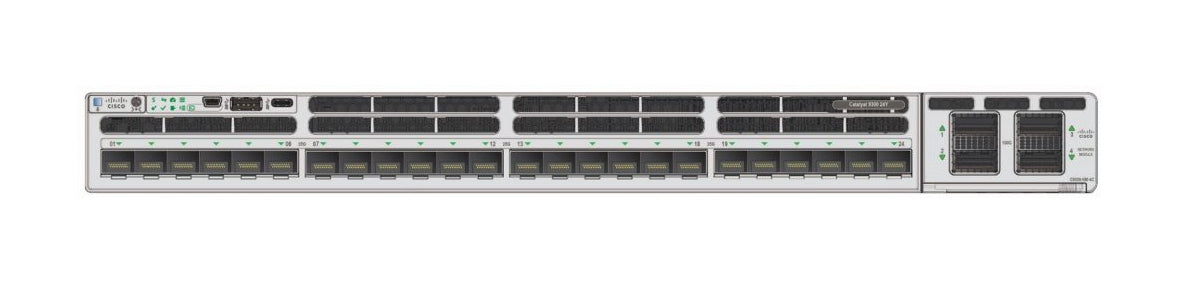

• Cisco C9300X-24Y-A switch with 24x 25G SFP28 ports
1 1

Cisco

Cisco C9300X-24Y-A | Catalyst 9300X 24-Port 25G SFP28 Switch, Network Advantage

C9300X-24Y-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300X C9300X-24Y-A is a stackable enterprise access switch for campus and branch networks that need dense fibre connectivity or a 25G aggregation edge. It is also suited to secure WAN and cloud edge deployments using hardware IPsec, and to SD-Access fabrics.

It provides 24 multi-rate SFP28 downlink ports running at 25G, 10G or 1G, plus a modular uplink bay. Switching capacity is 2,000 Gbps standalone and 3,000 Gbps in a stack, with a forwarding rate of 1488 Mpps standalone and 2232 Mpps stacked. StackWise-1T supports up to eight members, and 16 GB of DRAM and 16 GB of flash support application hosting. This SKU carries the perpetual Network Advantage licence tier and does not provide PoE. The default power supply is the 715W AC PWR-C1-715WAC-P.

The uplink bay accepts C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C and C9300X-NM-4C network modules. Non-X Catalyst 9300 network modules are not supported. It stacks over STACK-T1 cables with other C9300X models at StackWise-1T speeds, or with Catalyst 9300 models at 480G when the licence level matches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- UADP 2.0sec ASIC with line-rate hardware IPsec up to 100G (HSEC licence key required)
- StackWise-1T stacking with backward-compatible mixed stacking with Catalyst 9300 models
- Modular uplinks supporting 10G, 25G, 40G, Multigigabit and 100G network modules
- MACsec-256 encryption and Cisco Trust Anchor secure boot
- Cisco IOS XE with NETCONF, RESTCONF and gNMI programmability and streaming telemetry
- Application hosting with 16 GB memory and USB 3.0 SSD support
- StackPower for power resiliency, with redundant field-replaceable power supplies and N+1 fans
- SD-Access fabric support, with Catalyst Center and Meraki dashboard management options

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 25G/10G/1G SFP28
- Uplinks: modular, C9300X-NM-8M, 8Y, 2C and 4C network modules
- Switching capacity: 2,000 Gbps standalone, 3,000 Gbps with stacking
- Forwarding rate: 1488 Mpps standalone, 2232 Mpps with stacking
- Stacking: StackWise-1T, 1 Tbps, up to 8 members
- Mixed stacking with Catalyst 9300 models: 480G
- DRAM: 16 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 39,000
- IPv6 routing entries: 19,500
- Multicast routing scale: 8,000
- ACL scale entries: 8,000
- QoS scale entries: 4,000
- Packet buffer: 32 MB
- Flexible NetFlow entries: 128,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Default power supply: PWR-C1-715WAC-P, 715W AC
- PoE: none
- Dimensions with default PSU (H x W x D): 4.4 x 44.5 x 48.8 cm
- Weight with default PSU: 7.35 kg
- MTBF: 249,350 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence tier does the C9300X-24Y-A carry?
A: It ships with the perpetual Network Advantage licence tier. Cisco Smart Licensing is used, and a Catalyst or Cisco DNA subscription term is required for Network Advantage features.

Q: Does this switch provide PoE?
A: No. The C9300X-24Y-A is a fibre-only model with no PoE. It uses a 715W AC PWR-C1-715WAC-P power supply and supports a second power supply for redundancy.

Q: Which uplink modules does it accept?
A: It accepts Catalyst 9300X network modules only: C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C and C9300X-NM-4C. Catalyst 9300 non-X network modules are not supported.

Q: Can it be stacked with other Catalyst 9300 switches?
A: Yes. It stacks with other C9300X models at StackWise-1T speeds using STACK-T1 cables, or with Catalyst 9300 models at 480G with the same licence level. It cannot stack with C9300L or C9300LM models.

Q: Does it support hardware IPsec?
A: Yes. The UADP 2.0sec ASIC provides line-rate hardware IPsec up to 100G, and an HSEC licence key is required to enable it.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
