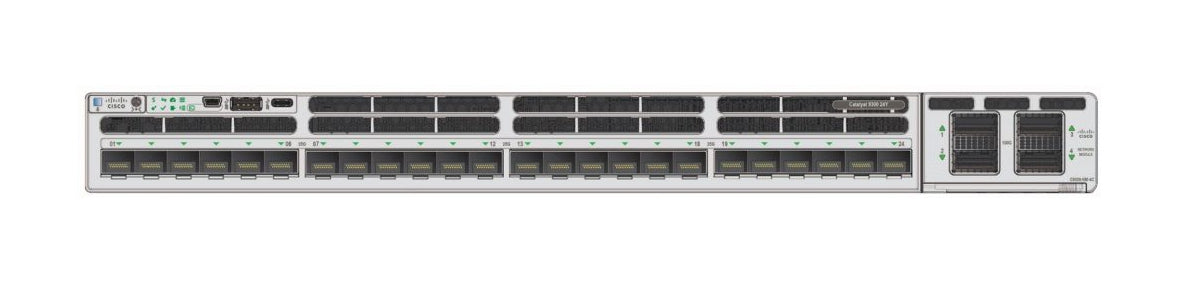

• Cisco C9300X-24HX-E switch with 24 mGig ports and black silver faceplate
1 1

Cisco

Cisco C9300X-24HX-E | Catalyst 9300X 24-Port 10G mGig UPOE+ Switch, Network Essentials

C9300X-24HX-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300X is a stackable enterprise access switch for campus and branch networks that need high-power PoE and Multigigabit speeds. It suits Wi-Fi 6/6E access points, IP cameras, digital signage, LED lighting and smart building or IoT endpoints, and works as a foundation switch for SD-Access fabrics and secure edge connectivity with hardware IPsec.

This Network Essentials model provides 24 Multigigabit copper ports running 10G, 5G, 2.5G, 1G or 100M, each with Cisco UPOE+ delivering up to 90W. The default 1100W AC power supply gives a 735W PoE budget, rising to 2160W with a second supply. Switching capacity is 800 Gbps standalone and 1,880 Gbps when stacked, with StackWise-1T stacking for up to 8 members. A modular uplink bay accepts 10G, 25G, 40G or 100G network modules, and the unit carries 16 GB of DRAM and 16 GB of flash.

It ships with the perpetual Network Essentials licence, covering Layer 2 and Layer 3 switching, routed access, 802.1X, MACsec-128 and model-driven telemetry. Uplinks use C9300X-NM-8M, C9300X-NM-8Y or C9300X-NM-2C network modules, and the switch stacks with other Catalyst 9300X models and with Catalyst 9300 models at StackWise-480 speeds.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE+ delivering up to 90W per port on all 24 Multigigabit ports
- UADP 2.0sec ASIC with line-rate crypto, including 100G hardware IPsec with the HSEC licence key
- StackWise-1T stacking with StackPower+ for power resiliency
- Modular uplink bay supporting 8x10G mGig, 8x25G/10G/1G and 2x100G/40G network modules
- Application hosting with a USB 3.0 SSD slot and 2x10G AppGig
- Redundant field-replaceable fans and support for dual redundant power supplies
- Cisco IOS XE with NETCONF, RESTCONF, gNMI and streaming telemetry
- MACsec-128, Secure Boot and hardware-anchored trust
- Perpetual PoE and Fast PoE
- Zero-touch provisioning, Cisco Catalyst Center and Meraki dashboard management support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24x 10G Multigigabit copper (10G/5G/2.5G/1G/100M)
- PoE: Cisco UPOE+, up to 90W per port
- Uplinks: Modular uplink bay
- Default power supply: PWR-C1-1100WAC-P, 1100W AC, Platinum-rated
- PoE budget: 735W with default 1100W supply
- PoE budget with secondary supply: 1085W (350W), 1450W (715W), 1835W (1100W), up to 2160W (1900W), limited by port count
- PoE budget with 1900W primary supply: 1535W
- Switching capacity: 800 Gbps standalone, 1,880 Gbps with stacking
- Forwarding rate: 654.72 Mpps standalone, 1398.72 Mpps with stacking
- Stacking: StackWise-1T, 1 Tbps, up to 8 members
- DRAM: 16 GB
- Flash: 16 GB
- Packet buffer: 16 MB
- MAC addresses: 32,000
- IPv4 routes: 39,000
- IPv6 routes: 19,500
- VLAN IDs: 4094
- Flexible NetFlow: 64,000 flows
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 44.6 cm chassis only, 52.4 cm deep with power supply
- Weight: 6.25 kg with default power supply
- MTBF: 220,250 hours
- Operating temperature: -5 to 45 C up to 1500 m, -5 to 40 C up to 3000 m
- Relative humidity: 5% to 90% non-condensing
- Licence: Network Essentials

FAQs

Q: Which licence does this model include?
A: It ships with the perpetual Network Essentials licence, covering foundational Layer 2 and Layer 3 switching, routed access, 802.1X, MACsec-128 and model-driven telemetry. BGP, VRF, VXLAN, MPLS and SD-Access need Network Advantage.

Q: Is a DNA subscription required?
A: A Cisco Catalyst or DNA Essentials or Advantage subscription term (3, 5 or 7 years), or the Cisco Networking Subscription, is required at time of order. DNA Essentials or Advantage can be paired with Network Essentials.

Q: What PoE budget does it provide?
A: The default 1100W AC supply gives 735W of PoE. A second supply raises this to 1085W, 1450W, 1835W or up to 2160W depending on its rating, limited by port count.

Q: Which uplink modules does it use?
A: It accepts the C9300X-NM-8M, C9300X-NM-8Y and C9300X-NM-2C network modules. The C9300X-NM-4C is not supported on this model.

Q: Can it be stacked with other Catalyst 9300 switches?
A: It stacks with other Catalyst 9300X models at StackWise-1T speeds and with Catalyst 9300 models at StackWise-480 speeds, provided both use the same licence level.
