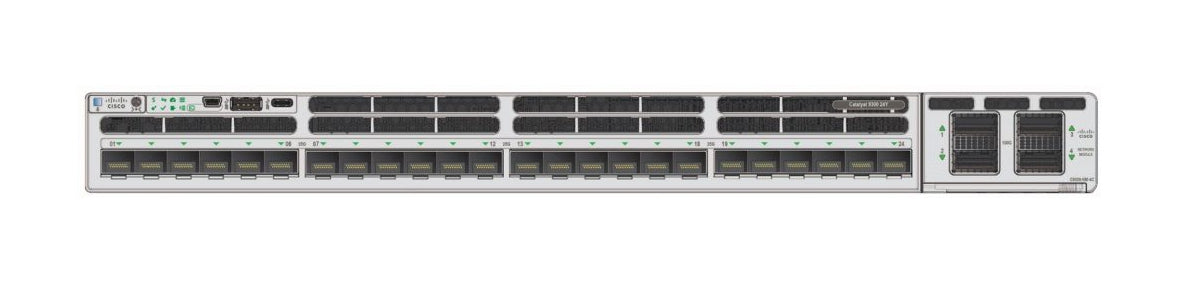

• Cisco C9300X-24HX-A switch with 24 mGig ports and black silver faceplate
1 1

Cisco

Cisco C9300X-24HX-A | Catalyst 9300X 24-Port 10G mGig UPOE+ Switch, 735W, Modular

C9300X-24HX-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst 9300X-24HX-A is a high-performance Layer 3 enterprise access switch featuring 24 multigigabit ports with 90W UPOE+ per port, ideal for powering Wi-Fi 6/6E access points, high-resolution cameras, and IoT devices. Built on the UADP 2.0 ASIC with StackWise-1T technology delivering up to 1 Tbps stacking bandwidth, it includes Network Advantage licensing for advanced routing, SD-Access fabric, and security. With modular uplink options supporting 10G/25G/40G/100G expansion and dual redundant power supplies, this switch provides enterprise-grade performance and scalability for modern campus networks.

Features

Layer 3 routing with BGP, OSPF, EIGRP, ISIS, RIP, HSRP, VRRP support
- Cisco SD-Access fabric with DNA Center integration
- EVPN and segment routing for scalable network segmentation
- UADP 2.0 ASIC enabling 100 Gbps line-rate IPsec encryption
- StackWise-1T delivering up to 1 Tbps stacking bandwidth
- StackPower+ for resilient power sharing across stack members
- 802.1X, MACSec, TrustSec, and MACsec-256 encryption support
- Flexible NetFlow (FNF) with 64,000 entries for traffic visibility
- QoS with 8 priority queues and 4000 QoS scale entries
- Advanced security with 8000 ACL entries and Dynamic ARP Inspection
- Application hosting with x86 CPU and containerized app support
- Model-driven programmability with YANG, NETCONF, RESTCONF, gRPC
- Streaming telemetry for real-time network analytics
- Cisco IOS XE operating system with programmable automation
- Energy Efficient Ethernet (IEEE 802.3az) support
- NSF/SSO (Nonstop Forwarding with Stateful Switchover) for sub-50ms failover
- Cross-stack EtherChannel for resilient link aggregation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x Multigigabit Ethernet ports (100M/1G/2.5G/5G/10G per port)
- 90W UPOE+ (802.3bt) per port
- 735W PoE budget with default 1100W AC PSU (expandable to 1835W with secondary PSU)
- Modular uplink slot supporting 10G/25G/40G/100G network modules (sold separately)
- Switching capacity: 880 Gbps standalone, 1880 Gbps with stacking
- Forwarding rate: 327.38 Mpps standalone, 1398.8 Mpps with stacking
- StackWise-1T stacking up to 1 Tbps bandwidth (up to 8 switches per stack)
- 16 GB DRAM, 16 GB flash memory
- UADP 2.0 ASIC with 100 Gbps IPsec encryption capability
- Dual hot-swappable power supply slots (ships with one 1100W AC PSU)
- 39,000 IPv4 routing entries, 19,500 IPv6 routing entries
- 4094 VLANs, 1000 SVIs
- Management: CLI, Web GUI, SNMP v1/v2c/v3, NETCONF, RESTCONF, gRPC, YANG
- Dimensions: 1.73 x 17.5 x 19 in (4.4 x 44.5 x 48.3 cm)
- Weight: 17 lb (7.71 kg)
- Three field-replaceable fans with N+1 redundancy
- Network Advantage license included

FAQs

Q: What uplink modules are compatible with the C9300X-24HX-A?
A: The switch supports optional Cisco network modules including 10G/25G and 40G/100G uplink modules. Compatible modules include the C9300X-NM-2Q (2x 40G/100G QSFP28), C9300X-NM-8Y (8x 25G SFP28), and C9300-NM-4G/4M options. The uplink module is sold separately and is field-replaceable.

Q: Can this switch stack with other Catalyst 9300 series models?
A: Yes, the C9300X-24HX-A supports mixed stacking with Catalyst 9300 and 9300X modular uplink models at StackWise-480 speeds or StackWise-1T speeds (9300X only). It cannot stack with C9300L fixed uplink models or Catalyst 3850/3650 series switches. Up to 8 switches can be stacked.

Q: What is the difference between Network Advantage and Network Essentials licenses?
A: Network Advantage (included with the -A SKU) provides full Layer 3 routing protocols (BGP, OSPF, EIGRP, ISIS), SD-Access fabric support, EVPN, segment routing, advanced telemetry, and application visibility. Network Essentials offers basic Layer 2/3 features. Network Advantage is required for enterprise automation and SD-Access deployments.

Q: How much total PoE power is available for this switch?
A: The default 1100W AC power supply provides 735W PoE budget. With an optional secondary power supply, total PoE budget can reach 1085W (with 350W PSU), 1450W (with 715W PSU), or 1835W (with 1100W PSU). Each port supports up to 90W UPOE+ power delivery.

Q: Is this switch suitable for Wi-Fi 6 and Wi-Fi 6E access point deployments?
A: Yes, the C9300X-24HX-A is specifically designed for high-density Wi-Fi 6/6E deployments. The multigigabit ports support 2.5G/5G/10G speeds required by modern access points, and 90W UPOE+ ensures sufficient power for high-performance wireless devices without external power injectors.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
