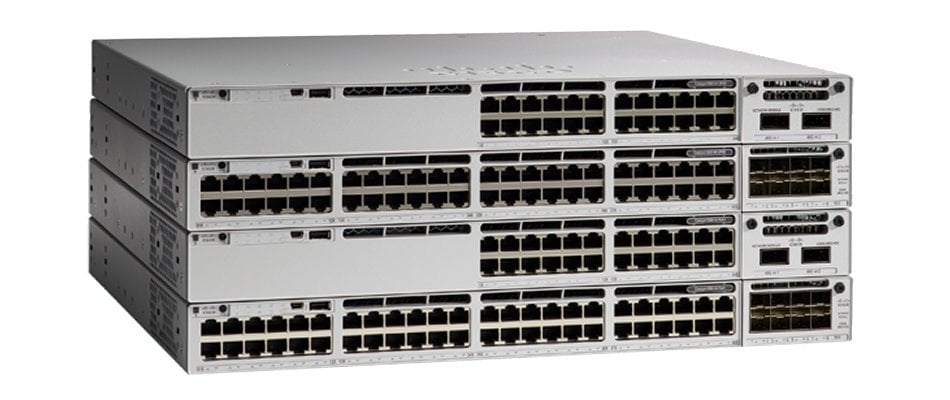

  • Cisco C9300X-12Y-A Catalyst 9300 switch with 12x 25G SFP28 ports
1 2

Cisco

Cisco C9300X-12Y-A | Catalyst 9300X 12-Port 25G SFP28 Switch, Network Advantage

C9300X-12Y-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300X C9300X-12Y-A is a stackable enterprise switch built for access-layer, aggregation and small-core deployments that need dense 25G fibre connectivity. It also suits campus edge stacks, SD-Access fabrics and secure site-to-site or cloud gateway links that use hardware IPsec.

It provides 12 multi-rate SFP28 ports running at 25G, 10G or 1G, plus a modular uplink slot for the C9300X-NM-8M, C9300X-NM-8Y or C9300X-NM-2C network modules. Switching capacity is 1,000 Gbps, rising to 2,000 Gbps in a stack, with a forwarding rate of 744.04 Mpps. The UADP 2.0sec ASIC delivers line-rate hardware IPsec up to 100G when an HSEC key is applied. It has 16 GB of DRAM and 16 GB of flash. This model has no PoE and ships with a 715W AC platinum power supply, PWR-C1-715WAC-P.

This SKU carries the Network Advantage perpetual licence, which includes the Network Essentials feature set. StackWise-1T stacking supports up to 8 members and works alongside other Catalyst 9300X models, and with Catalyst 9300 models at StackWise-480 speeds. It runs Cisco IOS XE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Line-rate hardware IPsec up to 100G on the UADP 2.0sec ASIC (HSEC key required)
- StackWise-1T stacking with mixed-stack support alongside Catalyst 9300 models
- AES-256 MACsec encryption
- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG and model-driven telemetry
- Application hosting with Cisco-signed containers
- Trust Anchor technology with Secure Boot, image signing and SUDI
- Flexible NetFlow and NBAR2 application visibility
- SD-Access and Cisco Catalyst Center support, with optional Meraki dashboard cloud management
- Field-replaceable fans and power supplies with NSF/SSO resiliency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9300X-12Y-A (Network Advantage)
- Ports: 12 x 25G/10G/1G SFP28
- Uplink configuration: Modular uplinks
- Default power supply: 715W AC (PWR-C1-715WAC-P)
- PoE: None
- Switching capacity: 1,000 Gbps (2,000 Gbps with stacking)
- Forwarding rate: 744.04 Mpps (1488 Mpps with stacking)
- Stacking: StackWise-1T, up to 8 members
- MAC addresses: 32,000
- IPv4 routes: 39,000
- IPv6 routing entries: 19,500
- Multicast routing scale: 8,000
- QoS scale entries: 4,000
- ACL scale entries: 8,000
- Packet buffer: 16 MB
- Flexible NetFlow entries: 64,000 flows
- DRAM: 16 GB
- Flash: 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 44.7 cm
- Weight with default power supply: 6.80 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing
- MTBF: 265,650 hours

FAQs

Q: Which licence does this switch ship with?
A: C9300X-12Y-A ships with the Network Advantage perpetual licence, which includes the Network Essentials features. A Cisco Catalyst or Cisco DNA subscription matching the Advantage tier is ordered alongside it. The IPsec feature also needs an HSEC key.

Q: Does this model support PoE?
A: No. The C9300X-12Y has no PoE and uses a 715W AC platinum power supply, PWR-C1-715WAC-P, with support for a second redundant supply.

Q: Which uplink modules fit this switch?
A: It accepts the C9300X-NM-8M, C9300X-NM-8Y and C9300X-NM-2C network modules in its modular uplink slot.

Q: What can it be stacked with?
A: It stacks with other Catalyst 9300X models over StackWise-1T, and with Catalyst 9300 models at StackWise-480 speeds at the same licence level. It cannot stack with C9300L or C9300LM models. Stack cables are STACK-T1-50CM, STACK-T1-1M and STACK-T1-3M.

Q: What speeds do the SFP28 ports support?
A: Each of the 12 SFP28 ports is multi-rate and runs at 25G, 10G or 1G depending on the optic installed.
