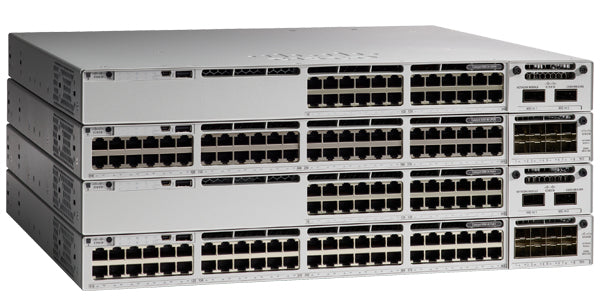

• Cisco Catalyst 9300L-48UXG-2Q-E switch stack with mGig ports
1 1

Cisco

Cisco C9300L-48UXG-2Q-E | Catalyst 9300L 48-Port UPOE Switch, 2x 40G, Network Essentials

C9300L-48UXG-2Q-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a fixed-uplink, stackable enterprise access switch built for campus and branch networks. This model provides 48 Cisco UPOE ports, making it well suited to Wi-Fi 6/6E access points, IP phones, cameras and PoE-powered IoT devices, with two fixed 40G QSFP uplinks towards distribution or core.

Of the 48 ports, 12 are Multigigabit (100M/1G/2.5G/5G/10G) and 36 are 1G (10M/100M/1G). Each port can deliver up to 60W UPOE. It switches at 472 Gbps (792 Gbps when stacked) with a forwarding rate of 351.19 Mpps, and carries 8 GB DRAM and 16 GB flash. The default 1100W AC power supply gives a 675W PoE budget, rising to 1775W with a second 1100W supply. This SKU carries the perpetual Network Essentials licence, covering Layer 2/3 switching, automation, visibility and security features, and runs Cisco IOS XE.

It stacks over StackWise-320 with up to eight members, but only with other Catalyst 9300L models at the same licence level. The 40G uplinks accept supported Cisco QSFP and QSFP+ optics, and it can be managed through the CLI, Cisco Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE (60W per port) on all 48 ports for access points, IP phones, cameras and IoT devices
- Multigigabit ports up to 10G over Cat5e/6/6A cabling for Wi-Fi 6/6E access points
- Network Essentials licence covering Layer 2/3 switching, automation, visibility and security (802.1X, MACsec-128, CoPP, SXP, SSO)
- Cisco IOS XE with NETCONF/RESTCONF/gNMI/YANG programmability, model-driven telemetry and on-box app hosting
- Hardware-anchored Secure Boot, signed images and Trust Anchor module
- Perpetual PoE and Fast PoE keep endpoints powered through reloads
- Dual hot-swappable power supply bays and three field-replaceable fans (N+1)
- Managed via CLI, WebUI, Cisco Catalyst Center or the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 Cisco UPOE ports
- Multigigabit ports: 12 x (10G/5G/2.5G/1G/100M)
- Gigabit ports: 36 x (1G/100M/10M)
- Uplinks: 2 x 40G fixed QSFP
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- PoE budget (single 1100W PSU): 675W
- PoE budget with 350W secondary PSU: 1025W
- PoE budget with 715W secondary PSU: 1390W
- PoE budget with 1100W secondary PSU: 1775W
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Switching capacity: 472 Gbps (792 Gbps with stacking)
- Forwarding rate: 351.19 Mpps (589.28 Mpps with stacking)
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default PSU (H x W x D): 4.4 x 44.5 x 48.8 cm
- Weight with default power supply: 7.65 kg
- Power consumption (115 VAC, no link, no PoE): 111.1 W
- Operating temperature: -5 to +45 C up to 1500 m
- Licence: Network Essentials (perpetual)

FAQs

Q: Does this switch need a licence or subscription?
A: It carries the perpetual Network Essentials licence (-E). Cisco also requires a Catalyst/DNA subscription term licence, Essentials or Advantage at 3, 5 or 7 years, to be ordered alongside it, and the tier must match the network licence. Smart Licensing through a Cisco Smart Account is used.

Q: How much PoE power does it provide?
A: With the default 1100W AC power supply the PoE budget is 675W. Adding a second power supply raises it to 1025W (350W), 1390W (715W) or 1775W (1100W). Each port supports up to 60W UPOE.

Q: What can I stack it with?
A: It stacks over StackWise-320, up to eight members, only with other Catalyst 9300L or 9300LM models at the same licence level. It cannot stack with modular-uplink Catalyst 9300 or 9300X models. StackPower is not supported.

Q: What optics do the 40G uplinks accept?
A: The two fixed uplinks are QSFP ports that accept supported Cisco QSFP and QSFP+ optics. Check the Cisco transceiver compatibility tables for the exact part numbers.

Q: Which power supplies and fans are compatible?
A: It works with the PWR-C1-350WAC-P, PWR-C1-715WAC-P and PWR-C1-1100WAC-P power supplies and FAN-T2 fan modules.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
