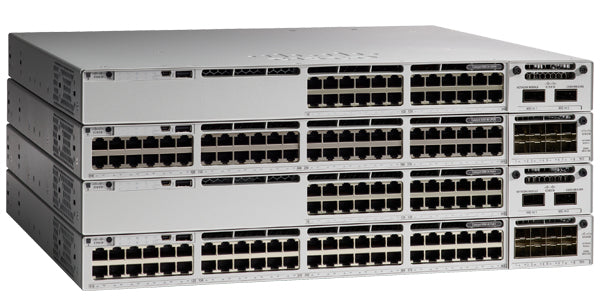

• Cisco Catalyst 9300L-48UXG-2Q-A switch stack with 48 ports and 2x 40G uplinks
1 1

Cisco

Cisco C9300L-48UXG-2Q-A | Catalyst 9300L 48-Port UPOE Switch, 12x mGig, Network Advantage

C9300L-48UXG-2Q-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable, fixed-uplink Layer 3 access switch built for enterprise campus and branch access layers. This model provides 48 Cisco UPOE ports to power access points, IP phones, cameras and other IoT devices, with multigigabit access for Wi-Fi 6 and Wi-Fi 6E access points and 40G uplinks to the distribution layer.

Downlinks are split into 12 multigigabit ports (100M/1G/2.5G/5G/10G) and 36 ports at 10M/100M/1G, all supporting Cisco UPOE. Two fixed 40G QSFP uplinks are provided and are non-modular. The default 1100W AC power supply gives a 675W PoE budget, and a second power supply slot is available for redundancy or additional PoE capacity. Switching capacity is 472 Gbps with a forwarding rate of 351.19 Mpps, and StackWise-320 provides 320 Gbps of stacking bandwidth.

This SKU ships with the Network Advantage software package, as indicated by the -A suffix, which enables the Layer 3 feature set needed for routed access designs. It stacks with other Catalyst 9300L models, and the power supplies and fans are field-replaceable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stackable fixed-uplink access switch with StackWise-320 stacking
- Cisco UPOE on all 48 ports for high-power PoE devices such as access points, phones and cameras
- Multigigabit ports suited to Wi-Fi 6 and Wi-Fi 6E access points
- Network Advantage software package for Layer 3 routed access
- Security features including MACsec, 802.1X, CoPP, secure boot and first-hop security
- Programmability via NETCONF, RESTCONF, gRPC and YANG
- PTP (IEEE 1588v2) and AVB support
- Field-replaceable power supplies and fans

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x Cisco UPOE
- Multigigabit ports: 12 x 100M/1G/2.5G/5G/10G
- Copper ports: 36 x 10M/100M/1G
- Uplinks: 2 x 40G fixed QSFP (non-modular)
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- PoE budget: 675W with default power supply
- Power supply slots: 2 FRU slots, 1 installed by default
- FRU fans: Yes
- Stacking: StackWise-320, 320 Gbps
- Switching capacity: 472 Gbps
- Switching capacity with stacking: 792 Gbps
- Forwarding rate: 351.19 Mpps
- Forwarding rate with stacking: 589.28 Mpps
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routes: 16,000
- Multicast scale: 8,000
- QoS and ACL entries: 5,120 each
- VLANs: 4,094
- Switched Virtual Interfaces: 1,000
- Packet buffer: 16 MB
- Jumbo frame support: 9,198 bytes
- Power input: AC 120/230 V, 50-60 Hz
- Dimensions (H x W x D): approx. 4.4 x 44.4 x 48.8 cm
- Weight: approx. 7.65 kg
- Management ports: USB 2.0, console and management port

FAQs

Q: Which software licence does this SKU include?
A: It ships with the Network Advantage software package, indicated by the -A suffix. A Cisco DNA Advantage subscription is also required, and Cisco DNA licences are term-based (3, 5 or 7 years).

Q: How much PoE power does it provide?
A: The default 1100W AC power supply (PWR-C1-1100WAC-P) gives a 675W PoE budget. A second power supply slot allows redundancy or additional PoE budget.

Q: Are the 40G uplinks modular?
A: No. The two 40G QSFP uplinks are fixed and non-modular, and accept QSFP+ 40G modules.

Q: Can it be stacked with other switches?
A: Yes. It supports StackWise-320 with 320 Gbps of stacking bandwidth and stacks with other Catalyst 9300L models.

Q: How does it differ from other Catalyst 9300L 48-port models?
A: This model combines 12 multigigabit and 36 x 1G UPOE ports with two fixed 40G QSFP uplinks, an 1100W AC power supply and Network Advantage software.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
