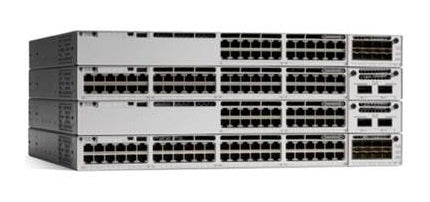

• Cisco C9300L-48T-4X-E silver switch stack with 48 ports and 4x 10G uplinks
1 1

Cisco

Cisco C9300L-48T-4X-E | Catalyst 9300L 48-Port Gigabit Switch, Network Essentials

C9300L-48T-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L 48-port data switch is a 1RU stackable access-layer switch for enterprise campus and branch wiring closets that serve data-only endpoints. It runs Cisco IOS XE and suits SD-Access fabric edge deployments as well as standard access-layer designs that need 10G uplinks and stackable resilience.

This SKU provides 48 x 10/100/1000 RJ-45 data-only ports with no PoE, plus four fixed 10G/1G SFP+ uplinks. Switching capacity is 176 Gbps (496 Gbps when stacked) with a forwarding rate of 130.95 Mpps (369.05 Mpps when stacked). It ships with the perpetual Network Essentials licence, and Smart Licensing is used for activation. The default PSU is a 350W AC unit, with a second PSU supported for redundancy.

StackWise-320 stacking supports up to 8 members at 320 Gbps using the optional C9300L-STACK-KIT or KIT2 with STACK-T3 or STACK-T3A cables. Stacking is only possible with other Catalyst 9300L and 9300LM models at the same licence level. Uplinks accept SFP+ and SFP optics listed in the Cisco transceiver compatibility matrix. The switch can be managed through Catalyst Center or the Meraki dashboard.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF, gNMI, YANG model-driven programmability and streaming telemetry
- Dual redundant hot-swappable power supplies and three field-replaceable fans (N+1)
- MACsec-128 and hardware-anchored Secure Boot with Trust Anchor module
- Plug and Play (PnP) and zero-touch provisioning support
- Built-in WebUI, USB 2.0 and external USB 3.0 SSD slot for application hosting
- Audio Video Bridging (802.1ba) and Precision Time Protocol (IEEE 1588v2) support
- Energy Efficient Ethernet power management
- Cloud management via Meraki dashboard with migration supported

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Ports: 48 x 10/100/1000 RJ-45, data only (no PoE)
- Uplinks: 4 x 10G/1G fixed SFP+
- Switching capacity: 176 Gbps (496 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (369.05 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Default power supply: 350W AC (PWR-C1-350WAC-P)
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- Multicast routing scale: 8,000
- QoS scale entries: 5,120
- ACL scale entries: 5,120
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default PSU (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default PSU: 7.0 kg
- MTBF: 380,080 hours
- Power consumption at 115 VAC, full traffic: 88.72 W
- Operating temperature: -5 to 45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Essentials licence (-E) and uses Smart Licensing. A Cisco Catalyst or DNA subscription term licence in Essentials or Advantage, for 3, 5 or 7 years, is required for new orders, and 90-day evaluation licences are available.

Q: Does this model provide PoE?
A: No. This is a data-only model with no PoE budget. The default 350W AC power supply powers the switch itself only.

Q: Can it be stacked with other Catalyst 9300 switches?
A: It stacks only with other Catalyst 9300L and 9300LM models at the same licence level, not with C9300 or C9300X modular models. Stacking uses the optional C9300L-STACK-KIT or KIT2 with STACK-T3 or STACK-T3A cables, for up to 8 members at 320 Gbps.

Q: What power supply options are available?
A: The default PSU is the PWR-C1-350WAC-P 350W AC unit. A second PSU can be fitted for redundancy and 715W or 1100W upgrade PSUs are optional. StackPower is not supported on fixed-uplink C9300L models.

Q: How does this SKU differ from other Catalyst 9300L 48-port models?
A: This SKU is the data-only version with 48 ports, 4x 10G SFP+ fixed uplinks and Network Essentials licensing. PoE versions and Network Advantage versions are separate SKUs.
