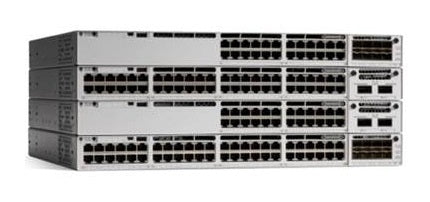

• Cisco C9300L-48T-4X-A switch stack with 48x 1G ports and 4x 10G uplinks
1 1

Cisco

Cisco C9300L-48T-4X-A | Catalyst 9300L 48-Port Gigabit Switch, 4x 10G SFP+, Layer 3

C9300L-48T-4X-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9300L-48T-4X-A is an enterprise-grade Layer 3 access switch designed for high-performance campus and branch deployments. Featuring 48 non-PoE Gigabit Ethernet ports and four 10G SFP+ uplinks, it delivers 176 Gbps switching capacity with optional StackWise-320 stacking. Running Cisco IOS XE with Network Advantage licensing, it provides advanced routing, security, and automation capabilities built on the UADP 2.0 ASIC architecture.

Features

Layer 3 routing with OSPF, EIGRP, BGP, VRRP, PIM-SM/SSM, and policy-based routing
- Cisco UADP 2.0 ASIC for programmable forwarding and template-based resource allocation
- StackWise-320 technology with 320 Gbps stacking bandwidth (optional kit)
- Network Advantage license with advanced security and automation features
- MACsec encryption for wire-rate, hop-by-hop security on all ports
- Cisco TrustSec with Software-Defined Segmentation (SDA) support
- Flexible NetFlow (FNF) for advanced traffic monitoring and analysis
- 802.1X authentication with dynamic VLAN assignment and MAB support
- Comprehensive QoS with 8 egress queues and DSCP/CoS mapping
- Energy Efficient Ethernet (EEE) for reduced power consumption
- USB 3.0 SSD slot for application hosting and network services
- Dual power supply support for redundancy (second PSU sold separately)
- Three field-replaceable fans with N+1 redundancy
- Rapid PVST+, MST, and advanced STP features (BPDU Guard, Root Guard, Loop Guard)
- Dynamic ARP Inspection (DAI), DHCP snooping, and IP Source Guard
- SNMP v1/v2c/v3, NETCONF, RESTCONF, and gRPC for modern programmability
- IPv6 support across all Layer 2 and Layer 3 features
- IGMP/MLD snooping and PIM multicast routing
- RSPAN, ERSPAN, and local SPAN for traffic monitoring
- Embedded Event Manager (EEM) for network automation and custom scripting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000 RJ45 ports (data only, non-PoE)
- 4x 10G/1G SFP+ uplink ports (fixed)
- Switching capacity: 176 Gbps (496 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (369.05 Mpps with stacking)
- Memory: 8 GB DRAM, 16 GB Flash
- MAC address table: 32,000 entries
- IPv4 routes: 32,000 | IPv6 routes: 16,000
- VLANs supported: 4,094 (1,000 active with STP)
- StackWise-320 stacking support (up to 8 units, optional kit required)
- Stacking bandwidth: 320 Gbps
- Default power supply: PWR-C1-350WAC-P (350W AC)
- Dual power supply capable (redundant PSU optional)
- Three field-replaceable fans with N+1 redundancy
- Dimensions (H x W x D): 1.73 x 17.5 x 17.7 in (4.4 x 44.5 x 44.9 cm)
- Weight: 15.41 lb (7.0 kg)
- Operating temperature: -5°C to 45°C
- Console: RJ-45 console and USB console ports
- Cisco IOS XE Release 16.11.1b or later
- UADP 2.0 ASIC with programmable pipeline

FAQs

Q: Does the C9300L-48T-4X-A support Power over Ethernet (PoE)?
A: No, this is a non-PoE data-only model. It features 48 standard Gigabit Ethernet ports without PoE capability. If you require PoE functionality, consider the C9300L-48P-4X-A variant which supports PoE+ across all 48 ports.

Q: Can this switch stack with other Catalyst 9300 models?
A: The C9300L-48T-4X-A supports StackWise-320 stacking with up to 8 units using the optional C9300L-STACK-KIT. It can stack with other Catalyst 9300L models running the same license level, but cannot stack with modular uplink models (C9300/C9300X) or older Catalyst 3850/3650 series switches.

Q: What is included with Network Advantage licensing?
A: Network Advantage provides full Layer 3 routing protocols (OSPF, EIGRP, BGP), advanced security features (MACsec, TrustSec), network automation capabilities, and programmability via APIs (NETCONF, RESTCONF). It also includes Flexible NetFlow, enhanced QoS, and policy-based routing for enterprise-grade deployments.

Q: What transceivers are compatible with the 10G SFP+ uplink ports?
A: The four 10G SFP+ uplink ports support Cisco-compatible 1G and 10G SFP/SFP+ transceivers including SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, and 1G SFP modules. The uplinks are dual-rate and can operate at either 1G or 10G speeds depending on the transceiver installed.

Q: Is this switch compatible with Cisco DNA Center?
A: Yes, the Catalyst 9300L series is fully compatible with Cisco DNA Center for network automation and analytics. However, DNA licensing (Essentials, Advantage, or Premier) is sold separately and requires an active subscription for DNA Center features and ongoing software updates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
