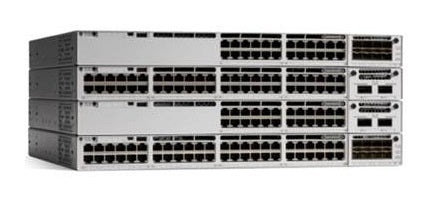

• Cisco C9300L-48T-4G-E switch stack with 48 RJ45 ports and 4 SFP uplinks
1 1

Cisco

Cisco C9300L-48T-4G-E | Catalyst 9300L 48-Port Gigabit Switch, 4x 1G SFP, Network Essentials

C9300L-48T-4G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a fixed-uplink, stackable access-layer switch for enterprise campus and branch networks. This model provides 48 data-only 10/100/1000 copper ports with no PoE, plus four fixed 1G SFP uplinks for fibre connectivity, and runs Cisco IOS XE.

Switching capacity is 104 Gbps, rising to 424 Gbps when stacked, with a forwarding rate of 77.38 Mpps (315.48 Mpps stacked). It supports StackWise-320 stacking at 320 Gbps with up to 8 members, 16 MB of packet buffer, 32,000 MAC addresses, 64,000 Flexible NetFlow flows, 8 GB DRAM and 16 GB flash. The default power supply is a 350W AC unit, and a USB 3.0 SSD slot allows container-based application hosting.

The -E suffix denotes the Network Essentials perpetual licence, covering foundational Layer 2 and Layer 3 switching, 802.1X, MACsec-128 and sampled NetFlow. A Cisco Catalyst or DNA subscription term licence is required with new orders. It stacks only with other Catalyst 9300L models at the same licence level, using the C9300L-STACK-KIT or C9300L-STACK-KIT2, and cannot stack with modular-uplink C9300 or C9300X models.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF, gNMI/YANG programmability and model-driven telemetry
- MACsec-128 and 802.1X with hardware-anchored Secure Boot and Trust Anchor module
- Flexible NetFlow, SPAN and RSPAN for traffic visibility
- Cisco Plug and Play and Zero-Touch Provisioning for automated deployment
- StackWise-320 stacking with NSF/SSO resiliency
- N+1 redundant field-replaceable fans and optional second hot-swappable power supply
- Container-based application hosting via USB 3.0 SSD
- Manageable through Catalyst Center
- Energy Efficient Ethernet and per-port power management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 copper, data only
- PoE: None
- Uplinks: 4 x 1G fixed SFP
- Default power supply: 350W AC (PWR-C1-350WAC-P)
- Switching capacity: 104 Gbps (424 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (315.48 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Packet buffer: 16 MB
- MAC addresses: 32,000
- IPv4 routes: 32,000 (24,000 direct, 8,000 indirect)
- IPv6 routing entries: 16,000
- Flexible NetFlow: 64,000 flows
- DRAM / Flash: 8 GB / 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions with default power supply (H x W x D): 4.4 x 44.5 x 44.9 cm
- Weight with default power supply: 7.0 kg
- Power consumption (115 VAC, full port traffic): 82.32 W
- Operating temperature: -5 to +45 C up to 1500 m
- Power input: 100 to 240 VAC, 47 to 63 Hz
- MTBF: 387,860 hours

FAQs

Q: Which licence does this switch use?
A: It uses the Network Essentials perpetual licence, indicated by the -E suffix. A Cisco Catalyst or DNA subscription term licence (3, 5 or 7 year, Essentials or Advantage) is required with new orders, and Cisco Smart Licensing applies.

Q: Does it provide PoE?
A: No. This is a data-only model with 48 x 10/100/1000 copper ports and no PoE. It uses a 350W AC power supply (PWR-C1-350WAC-P), and an optional second supply can be added for redundancy.

Q: What can it be stacked with?
A: It stacks only with other Catalyst 9300L models at the same licence level, using the C9300L-STACK-KIT or C9300L-STACK-KIT2. It cannot stack with modular-uplink C9300 or C9300X models.

Q: What are the uplinks and what do they accept?
A: The four fixed 1G SFP uplinks accept Cisco-supported 1G SFP transceivers, listed in Cisco's transceiver compatibility matrix. The uplinks are fixed and not modular.

Q: What software version does it require?
A: It requires Cisco IOS XE 16.11.1b or later. It can be managed through Catalyst Center.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
