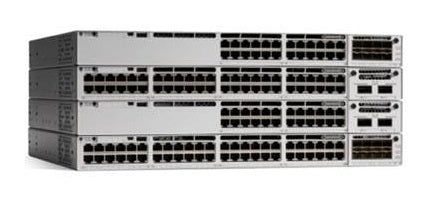

• Cisco C9300L-48T-4G-A switch stack with 48 RJ45 ports and 4 SFP uplinks
1 1

Cisco

Cisco C9300L-48T-4G-A | Catalyst 9300L 48-Port Gigabit Switch, 4x 1G SFP, Network Advantage

C9300L-48T-4G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch access-layer deployments. This model provides 48 data-only 10/100/1000 copper ports with four fixed 1G SFP uplinks, and runs Cisco IOS XE. It suits small to mid-size networks that need a stackable gigabit access switch, as well as SD-Access and Meraki cloud-managed deployments.

The switch delivers 104 Gbps of switching capacity and a 77.38 Mpps forwarding rate, rising to 424 Gbps and 315.48 Mpps when stacked using StackWise-320. It carries 8 GB of DRAM, 16 GB of flash, a 16 MB packet buffer and a 32,000-entry MAC address table. The default 350W AC power supply feeds a data-only design with no PoE, and a second power supply can be added for redundancy. This SKU is the Network Advantage variant, which includes the Network Essentials feature set and adds advanced routing, segmentation and automation features.

The unit stacks only with other Catalyst 9300L and 9300LM models at the same licence level, using the C9300L-STACK-KIT or C9300L-STACK-KIT2 and StackWise-T3 cables. The fixed uplinks accept 1G SFP optics, and compatible power supplies include PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P and PWR-C1-715WDC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with NETCONF, RESTCONF, gNMI and YANG model-driven programmability
- Network Advantage adds BGP, EIGRP, IS-IS, OSPF, VRF, VXLAN, LISP, TrustSec and MPLS
- Hardware-anchored Secure Boot, Trust Anchor module and signed images
- MACsec-256 encryption
- Foundation for Cisco SD-Access, managed through Cisco Catalyst Center
- Can be migrated to cloud management via the Meraki dashboard
- NSF/SSO resiliency and cross-stack EtherChannel
- Three field-replaceable fans with N+1 redundancy and redundant power supply support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 copper (data only)
- Uplinks: 4 x 1G fixed SFP
- PoE: None (data-only model)
- Switching capacity: 104 Gbps (424 Gbps with stacking)
- Forwarding rate: 77.38 Mpps (315.48 Mpps with stacking)
- Stacking: StackWise-320, up to 8 members
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- QoS and ACL scale: 5,120 entries each
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Default power supply: PWR-C1-350WAC-P, 350W AC
- Weighted average power draw: approx. 78 W (115Vac)
- Dimensions (H x W x D): 4.4 x 44.5 x 40.9 cm chassis only
- Weight: 7.0 kg with default power supply
- MTBF: 387,860 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 90% noncondensing

FAQs

Q: Which licence does this switch ship with?
A: It ships with the perpetual Network Advantage licence, which includes the Network Essentials features. A matching Cisco Catalyst or DNA Advantage subscription term is required at the time of order.

Q: Does this switch provide PoE?
A: No. This is a data-only model with no PoE. It uses a 350W AC power supply to run the switch itself.

Q: What can it be stacked with?
A: It stacks only with other Catalyst 9300L and 9300LM models at the same licence level, using StackWise-320. Stacking requires the C9300L-STACK-KIT or C9300L-STACK-KIT2 and StackWise-T3 cables. It cannot stack with modular-uplink C9300 or C9300X models.

Q: What type of uplinks does it have?
A: It has four fixed 1G SFP uplinks. The uplinks are not modular and accept 1G SFP optics.

Q: Which power supplies are compatible?
A: Compatible power supplies are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P and PWR-C1-715WDC. A second power supply can be fitted for redundancy.

Q: How does this SKU differ from the Network Essentials version?
A: The -A suffix denotes the Network Advantage licence. It adds advanced routing, segmentation, automation and high-availability features over the Network Essentials tier.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
