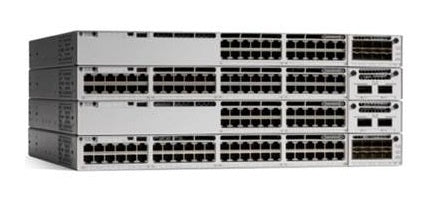

• Cisco C9300L-48PF-4X-E switch stack with 48 PoE+ ports and 4x 10G SFP+
1 1

Cisco

Cisco C9300L-48PF-4X-E | Catalyst 9300L 48-Port PoE+ Switch, Network Essentials

C9300L-48PF-4X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch networks that need full 30W PoE+ on every one of its 48 copper ports. It suits IP phones, Wi-Fi access points, cameras and IoT endpoints, with four fixed 10G/1G SFP+ uplinks to carry traffic to distribution or core layers. It also serves as a foundation for SD-Access and hybrid-workforce deployments.

This C9300L-48PF-4X-E variant provides 48 x 10/100/1000 PoE+ ports and 4 x 10G/1G SFP+ uplinks. Its default 1100W AC power supply delivers 890W of available PoE power, rising to 1440W with a 715W or 1100W secondary supply. Switching capacity is 176 Gbps (496 Gbps when stacked), with a forwarding rate of 130.95 Mpps. It carries Network Essentials perpetual licensing, covering foundational Layer 2/3 switching, routed access, 802.1X, MACsec-128, QoS and telemetry.

It stacks with other C9300L and C9300LM models at the same licence level over StackWise-320 using the C9300L-STACK-KIT or C9300L-STACK-KIT2, with up to 8 members managed as one virtual switch. It runs Cisco IOS XE and can be managed through Cisco Catalyst Center, the embedded WebUI or the CLI.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with model-driven programmability (NETCONF, RESTCONF, gNMI, YANG) and streaming telemetry
- Cisco UADP 2.0 ASIC with a programmable pipeline
- Container-based application hosting with a USB 3.0 SSD slot
- Perpetual PoE and Fast PoE keep endpoints powered during a switch reload
- StackWise-320 stacking with cross-stack EtherChannel and NSF/SSO resiliency
- MACsec-128, Trust Anchor technology, Secure Boot and image signing
- Hardware-based Flexible NetFlow and IPv6 wire-rate forwarding
- Energy Efficient Ethernet and per-port PoE power sensing
- Plug and Play and zero-touch provisioning support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 PoE+ copper
- Uplinks: 4 x 10G/1G fixed SFP+
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- Available PoE power: 890W with a single PSU
- Available PoE power with 350W secondary PSU: 1240W
- Available PoE power with 715W or 1100W secondary PSU: 1440W
- Switching capacity: 176 Gbps (496 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (369.05 Mpps with stacking)
- Stacking: StackWise-320 (320 Gbps), up to 8 members
- Memory: 8 GB DRAM, 16 GB flash
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- Multicast routes: 8,000
- QoS and ACL scale: 5,120 entries each
- Packet buffer: 16 MB
- Flexible NetFlow: 64,000 flows
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D), chassis only: 4.4 x 44.5 x 40.9 cm
- Dimensions with default power supply: 4.4 x 44.5 x 48.8 cm
- Weight with default power supply: 7.03 kg
- MTBF: 298,880 hours
- Fans: three field-replaceable fans, N+1 redundancy (FAN-T2)
- Operating temperature: -5 to 45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence does this SKU include?
A: The -E suffix means Network Essentials perpetual licensing is included. It covers foundational Layer 2/3 switching, routed access, 802.1X, MACsec-128, QoS and telemetry. Features such as BGP, VRF, VXLAN and TrustSec require Network Advantage.

Q: Can it deliver 30W PoE+ on all 48 ports at once?
A: Not on the default supply alone. A single 1100W supply provides 890W of PoE, while full 30W PoE+ across all 48 ports needs a second power supply, either two 1100W units or one 1100W plus one 715W.

Q: What can this switch be stacked with?
A: It stacks only with other C9300L and C9300LM models at the same licence level, using StackWise-320 with the C9300L-STACK-KIT or C9300L-STACK-KIT2 and STACK-T3 cables. It cannot stack with modular-uplink Catalyst 9300 or 9300X models.

Q: Are the uplinks modular?
A: No. The four 10G/1G SFP+ uplinks are fixed and the switch has no network module slot. Optics are selected from the Cisco transceiver compatibility matrix.

Q: Which power supplies are compatible?
A: The platform supports PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-715WDC and PWR-C1-1100WAC-P. An 1100W AC supply is installed as the default, with a second bay available for redundancy or extra PoE capacity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
