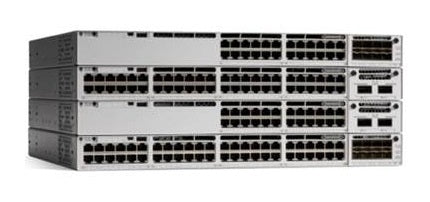

• Cisco C9300L-48PF-4X-A switch stack with 48 PoE+ ports and 4x10G uplinks
1 1

Cisco

Cisco C9300L-48PF-4X-A | Catalyst 9300L 48-Port PoE+ Switch, 4x 10G, Network Advantage

C9300L-48PF-4X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9300L is a stackable enterprise access switch built for campus and branch networks that need full PoE+ on every port. It suits wireless access points, IP phones, cameras and IoT devices, and fits stacked deployments and SD-Access fabrics with 10G uplinks. It runs Cisco IOS XE.

This SKU provides 48 x 10/100/1000 PoE+ copper ports and four fixed 10G/1G SFP+ uplinks. The default 1100W AC power supply delivers 890W of PoE power, rising to 1240W with a 350W secondary supply and 1440W with a 715W or 1100W secondary supply. Switching capacity is 176 Gbps standalone and 496 Gbps with stacking, with a forwarding rate of 130.95 Mpps standalone. It carries 8 GB DRAM, 16 GB flash and a 16 MB packet buffer. It ships with the Network Advantage licence tier, which adds advanced routing, VRF, VXLAN, LISP, MPLS and TrustSec.

Stacking uses StackWise-320 at 320 Gbps with up to 8 members, and works only with other Catalyst 9300L and 9300LM models via C9300L-STACK-KIT or C9300L-STACK-KIT2. Compatible power supplies are PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P and PWR-C1-715WDC.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stackable access switching with StackWise-320, up to 8 members
- Full PoE+ (30W) on all 48 ports with the default 1100W power supply
- Perpetual PoE and Fast PoE support
- Field-replaceable redundant power supplies and fans
- Cisco IOS XE with NETCONF, RESTCONF, gNMI/YANG programmability and model-driven telemetry
- Foundation for SD-Access with VXLAN BGP-EVPN fabric support
- Flexible NetFlow and NBAR2 application visibility and control
- MACsec-256 link encryption, secure boot and signed images
- App hosting via x86 CPU and USB 3.0 SSD slot
- Network Advantage adds BGP, EIGRP, IS-IS, OSPF, VRF, VXLAN, LISP, MPLS and TrustSec

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 PoE+ (full PoE+)
- Uplinks: 4 x 10G/1G fixed SFP+
- Default power supply: 1100W AC (PWR-C1-1100WAC-P)
- PoE power with default PSU: 890W
- PoE power with 350W secondary PSU: 1240W
- PoE power with 715W or 1100W secondary PSU: 1440W
- Switching capacity: 176 Gbps (496 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (369.05 Mpps with stacking)
- Stacking: StackWise-320, 320 Gbps, up to 8 members
- Packet buffer: 16 MB
- DRAM: 8 GB
- Flash: 16 GB
- Flexible NetFlow entries: 64,000
- MAC addresses: 32,000
- IPv4 routes: 32,000
- IPv6 routing entries: 16,000
- VLAN IDs: 4094
- Jumbo frames: up to 9198 bytes
- Dimensions with default PSU (H x W x D): 4.4 x 44.5 x 48.8 cm
- Weight with default PSU: 7.03 kg
- Operating temperature: -5 to +45 C up to 1500 m
- MTBF: 298,880 hours
- Licence tier: Network Advantage

FAQs

Q: Does this switch need a licence or subscription?
A: It ships with the Network Advantage perpetual licence tier. A Cisco Catalyst or DNA subscription term licence at the matching Advantage tier is mandatory at the time of order, and Smart Licensing applies.

Q: How much PoE power does it provide?
A: The default 1100W AC power supply gives 890W of PoE budget. A 350W secondary supply raises this to 1240W, and a 715W or 1100W secondary supply raises it to 1440W.

Q: Can it stack with Catalyst 9300 or 9300X switches?
A: No. It stacks only with other Catalyst 9300L and 9300LM models, using C9300L-STACK-KIT or C9300L-STACK-KIT2 and Type 3 or 3A stack cables.

Q: Which power supplies are compatible?
A: PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P and PWR-C1-715WDC are compatible, and a second supply can be fitted for redundancy.

Q: What do the uplink ports support?
A: The four fixed uplink ports accept Cisco SFP and SFP+ optics at 1G or 10G.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
